LD-BJX-0100-N01S
- Power
- 100 W
- Product size
- 420 x 322 x 97 mm
- Luminous flux
- 15000 lm

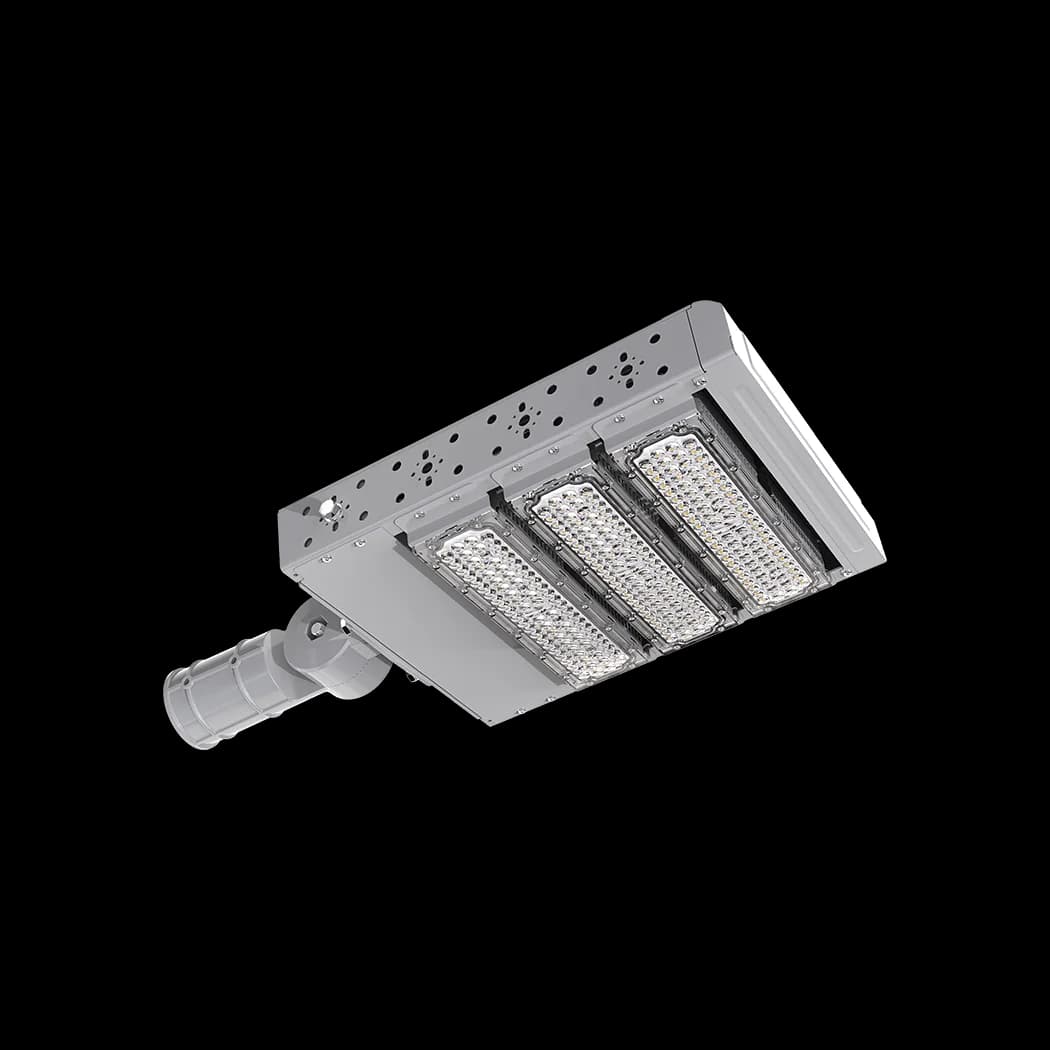

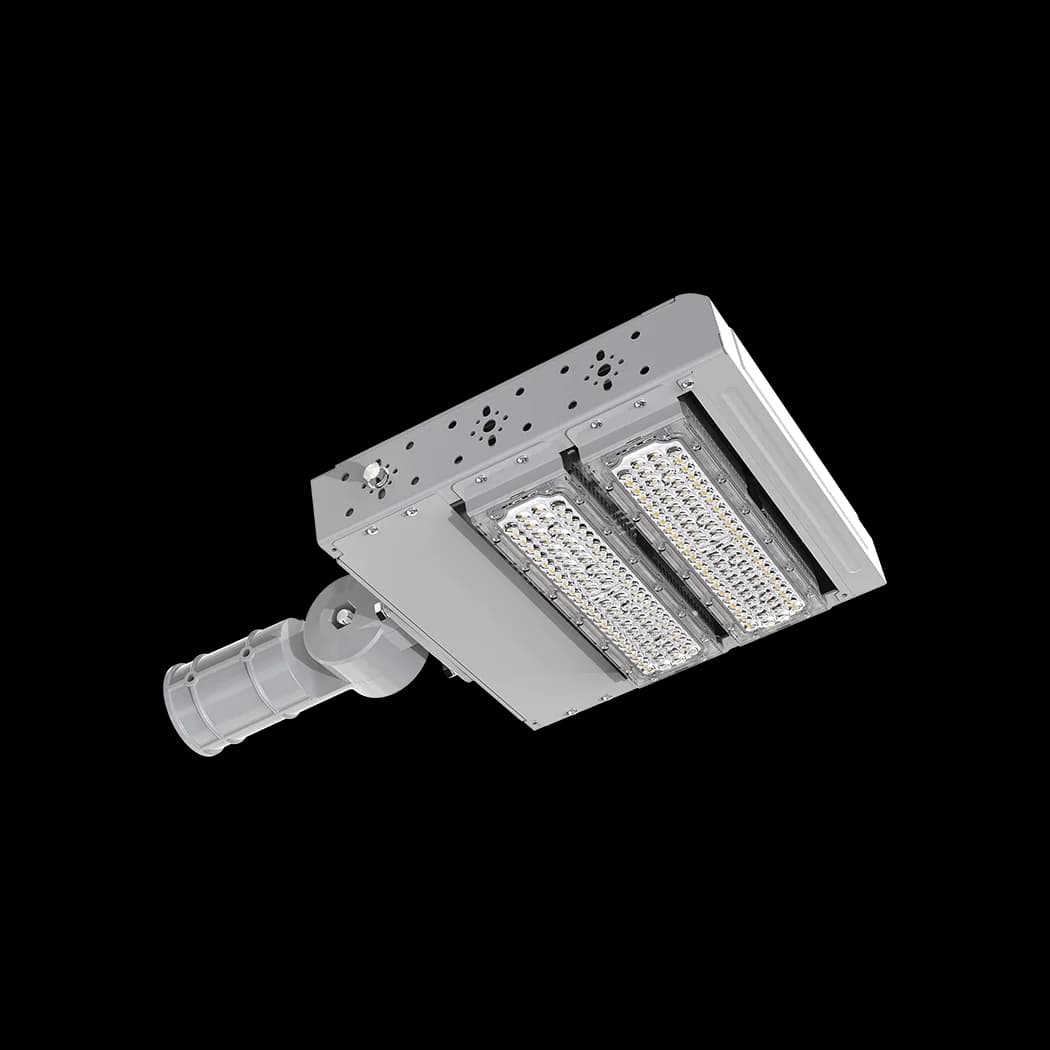

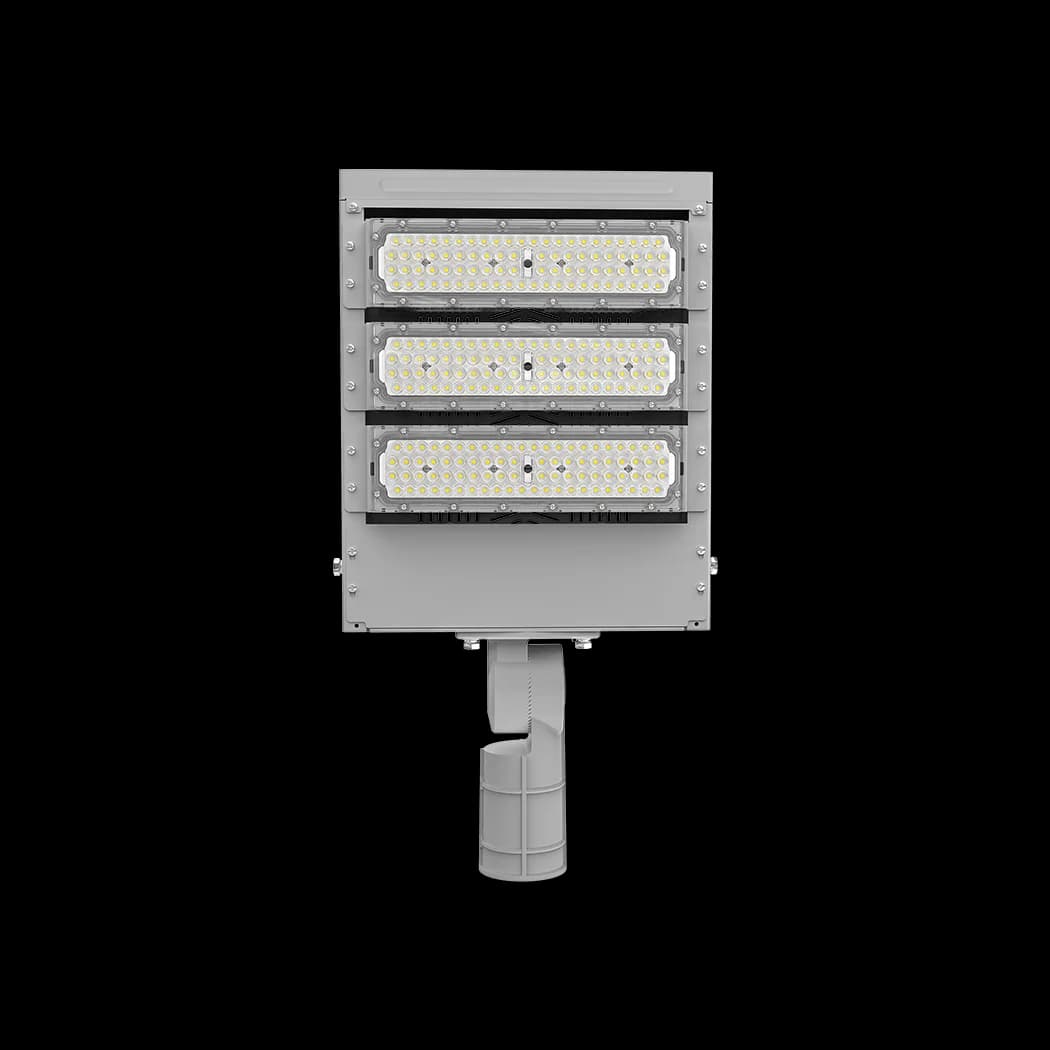

Polaris LED Street Light
1 / 5
Modular LED street light series for road, pedestrian and infrastructure projects, with 100-240 W output, 150 lm/W efficiency and selectable road-light distributions.
| Power | 100 W / 160 W / 240 W |
| Luminous flux | 15000 lm to 36000 lm |
| Light efficiency | 150 lm/W |
| Input voltage | AC 120-277 V |
| Colour temperature | 3000 K / 4000 K / 5000 K / 5700 K |
| Beam angle | TPII / TPIII / TPIV |
| Protection | IP65 |
| Application | Elevated lines, Main roads, Pedestrian malls, Back roads |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency
- 150 lm/W
- Power factor
- > 0.9
- CRI
- Ra >= 70
Electrical
- Input voltage
- AC 120-277 V
Configuration
- CCT
- 3000 K / 4000 K / 5000 K / 5700 K
- Beam angle
- TPII / TPIII / TPIV
- Lens angle
- 151 x 81 / 54 x 40 / 49 x 21 degrees
Model-specific differences
LD-BJX-0160-N01S
- Power
- 160 W
- Product size
- 502 x 322 x 97 mm
- Luminous flux
- 24000 lm
LD-BJX-0240-N01S
- Power
- 240 W
- Product size
- 584 x 322 x 97 mm
- Luminous flux
- 36000 lm

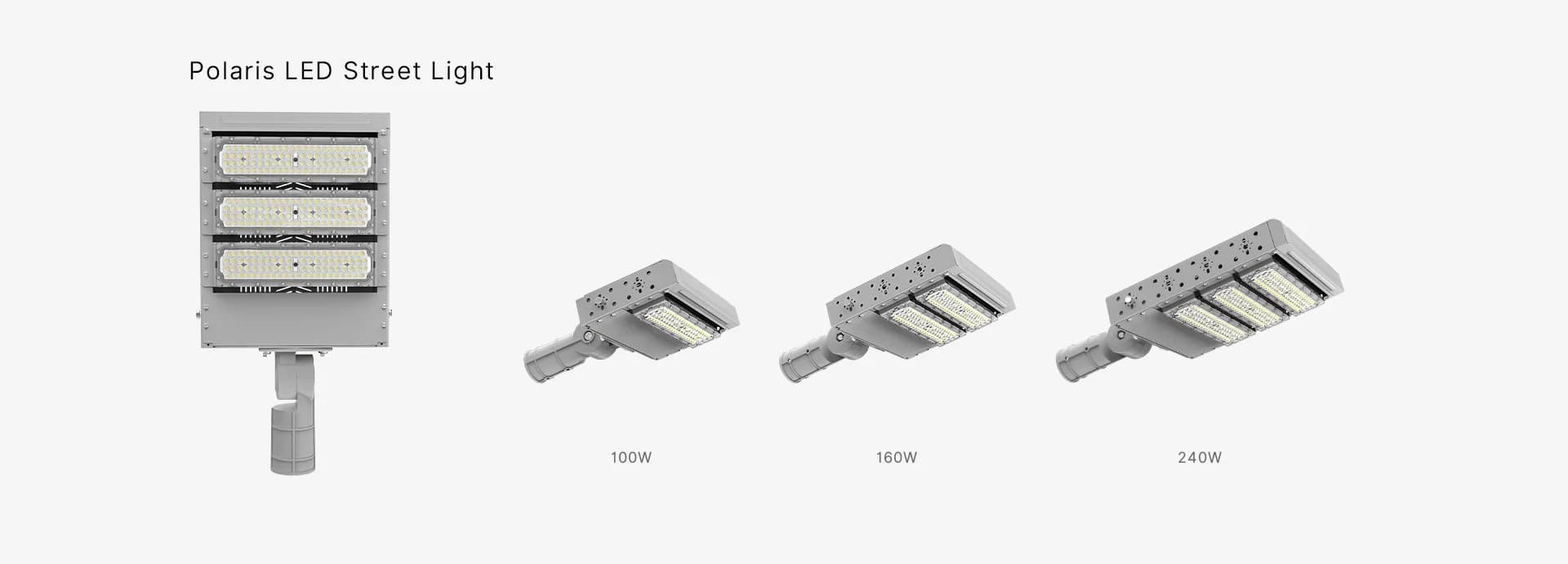

| Model | Power | Product size | Luminous flux |
|---|---|---|---|
| LD-BJX-0100-N01S | 100 W | 420 x 322 x 97 mm | 15000 lm |
| LD-BJX-0160-N01S | 160 W | 502 x 322 x 97 mm | 24000 lm |
| LD-BJX-0240-N01S | 240 W | 584 x 322 x 97 mm | 36000 lm |
Downloads
Product features
Why this series matters
01

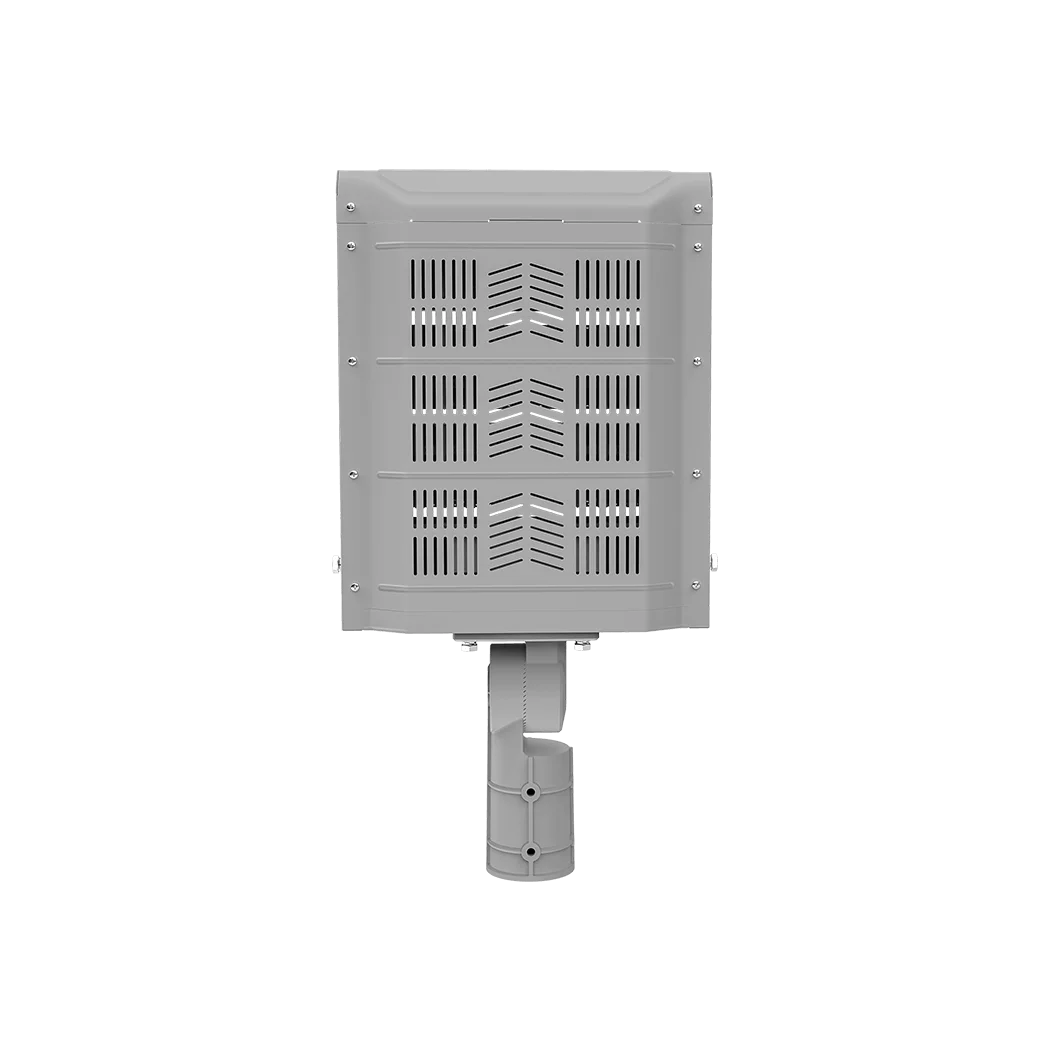

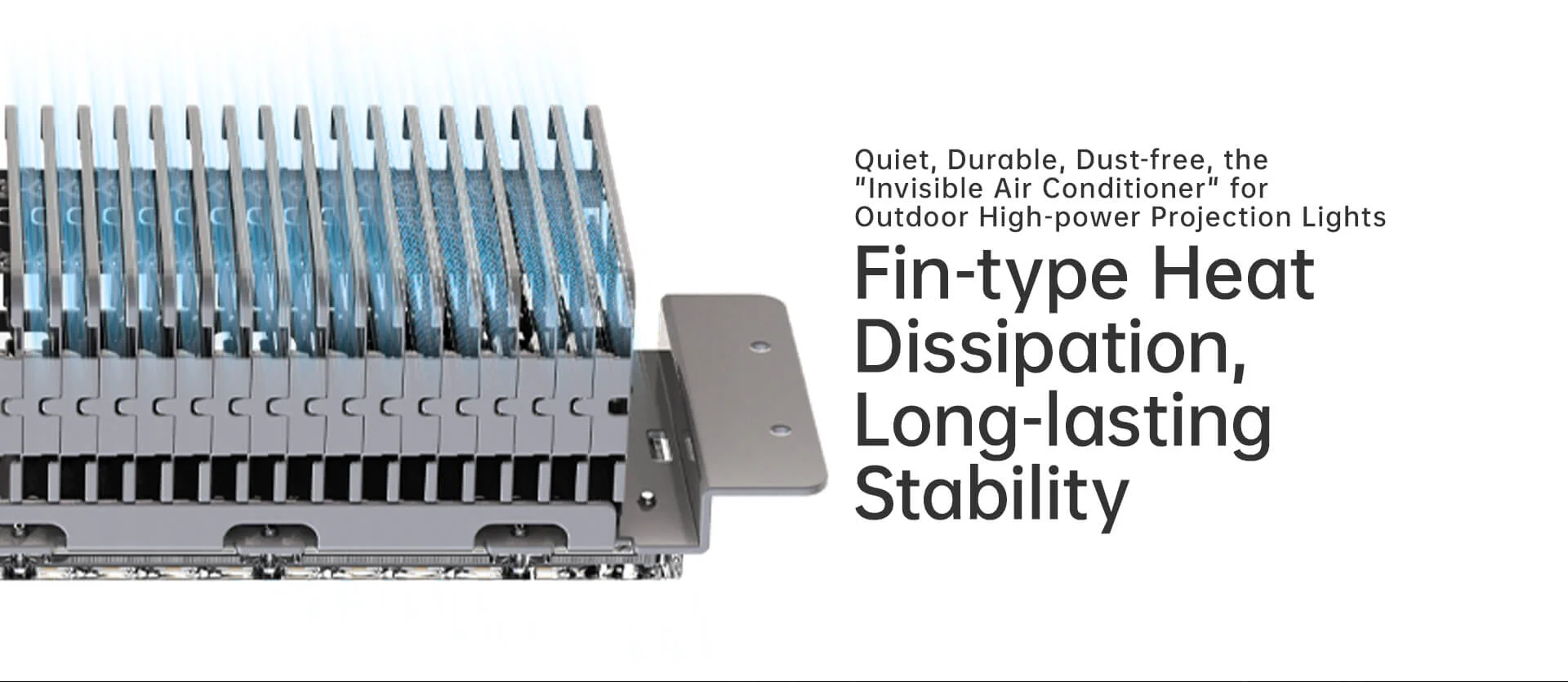

Fin-type heat dissipation
The donor material presents fin heat dissipation as the thermal design for stable outdoor operation.
02

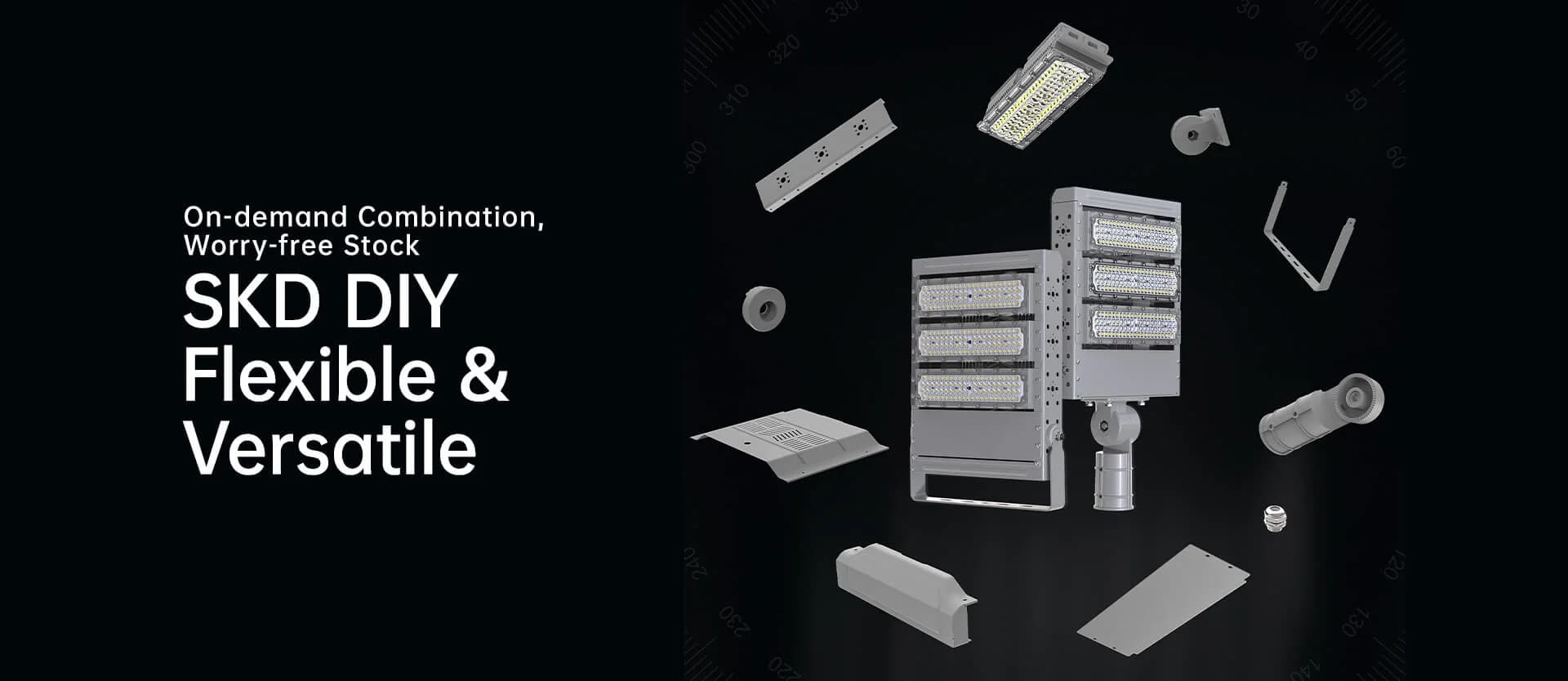

SKD DIY configuration
The product materials present SKD DIY assembly for flexible configuration and stock planning.
03

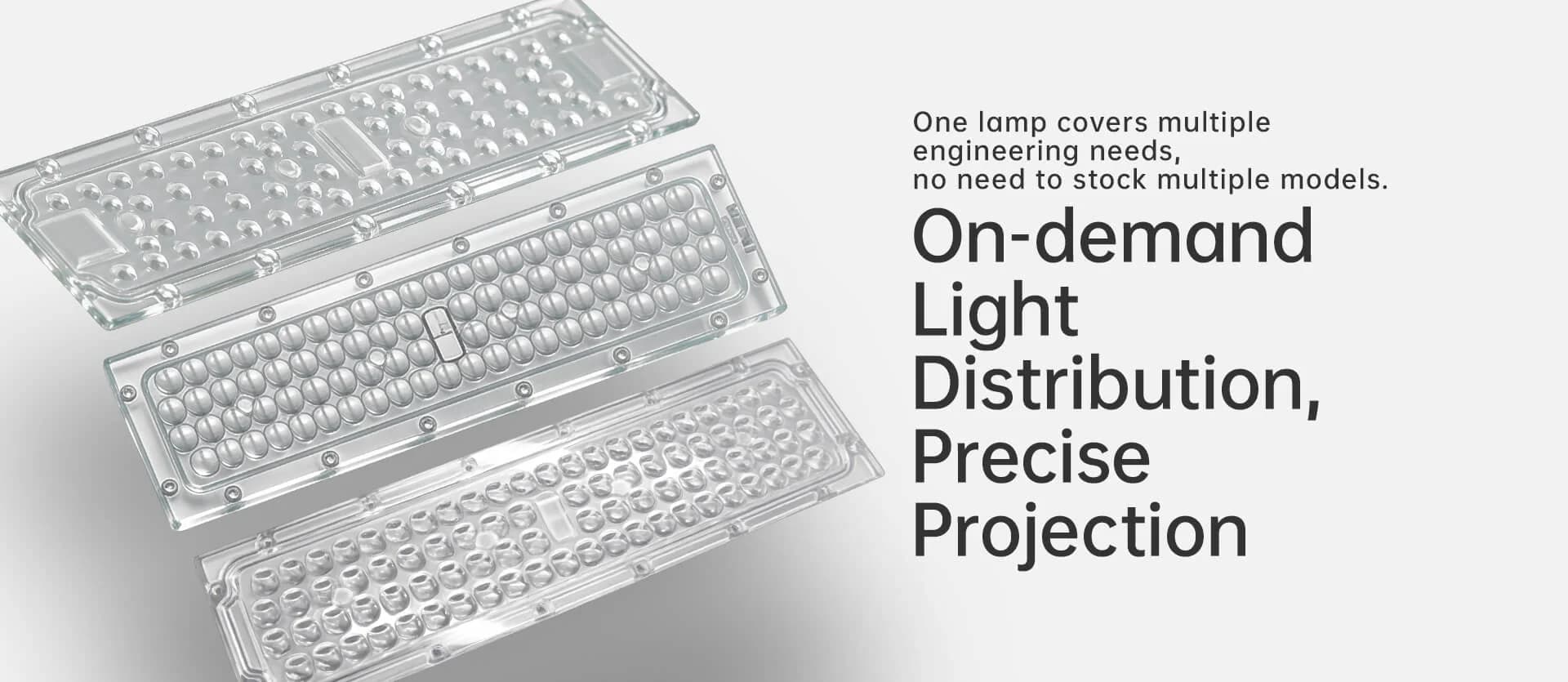

TPII, TPIII and TPIV optics
Road distributions include TPII, TPIII and TPIV, with lens angles listed as 151 x 81, 54 x 40 and 49 x 21 degrees.
04
20 kV surge protection
The detail graphic lists 20 kV surge protection for outdoor pole-mounted conditions.
05

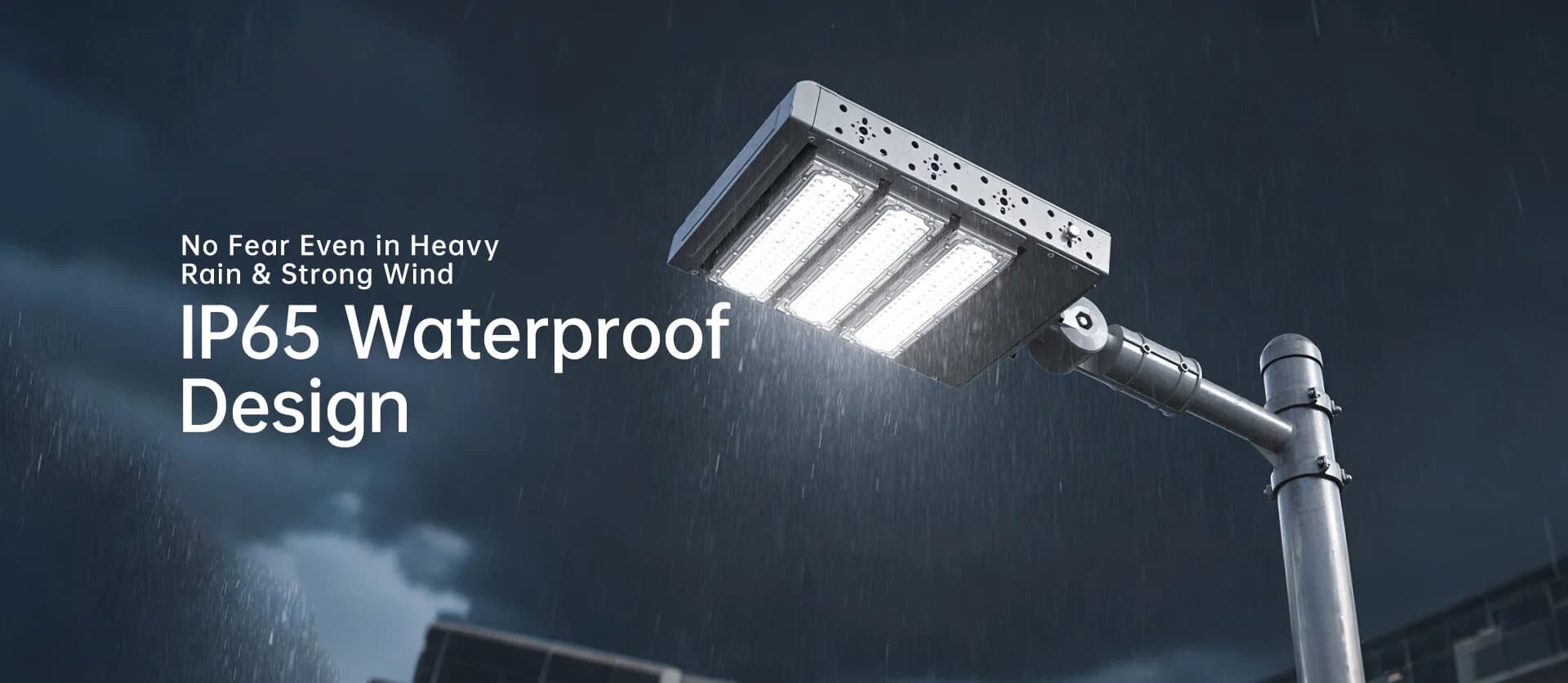

IP65 outdoor design
IP65 waterproof construction is shown for heavy rain and strong wind environments.
