TG-QMX-0200-N01L
- Power
- 200 W
- Product size
- 274.2 x 255.5 x 105.8 mm
- Luminous flux
- 30000 lm

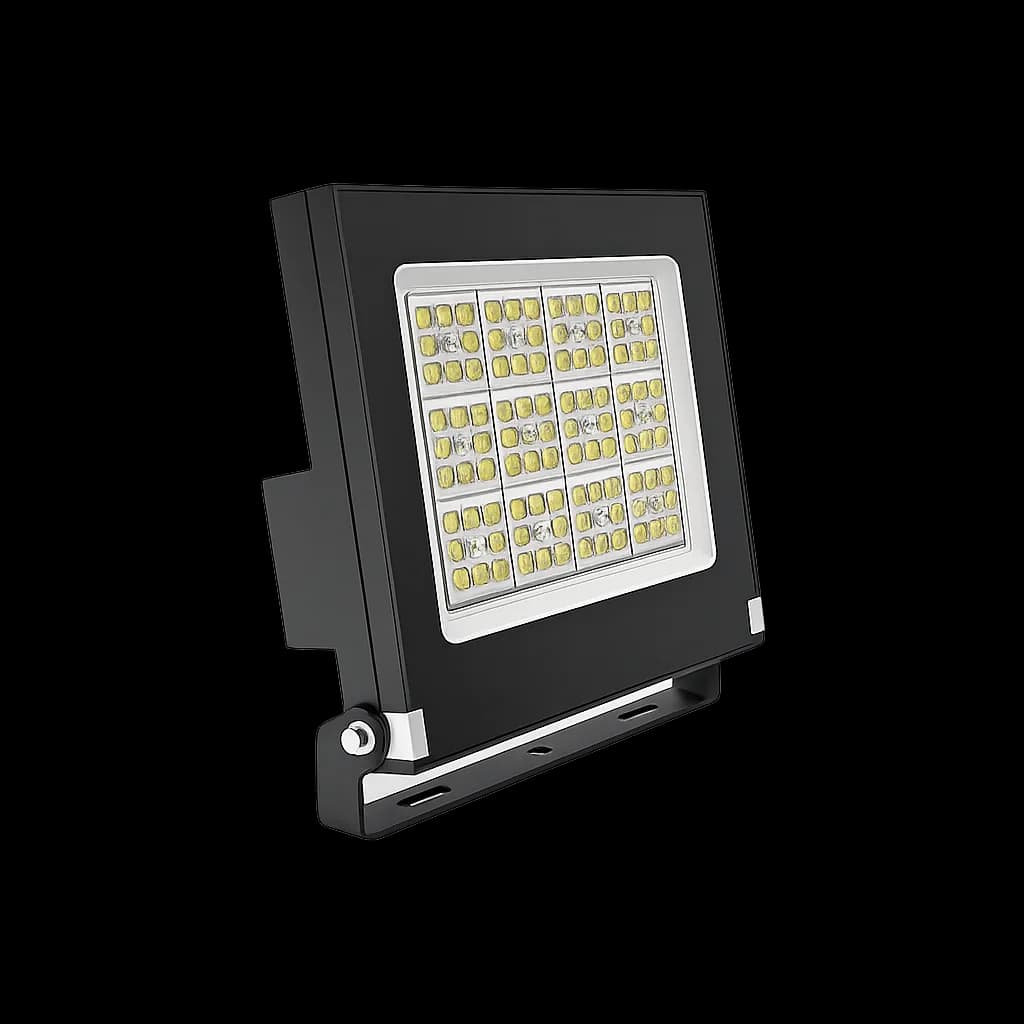

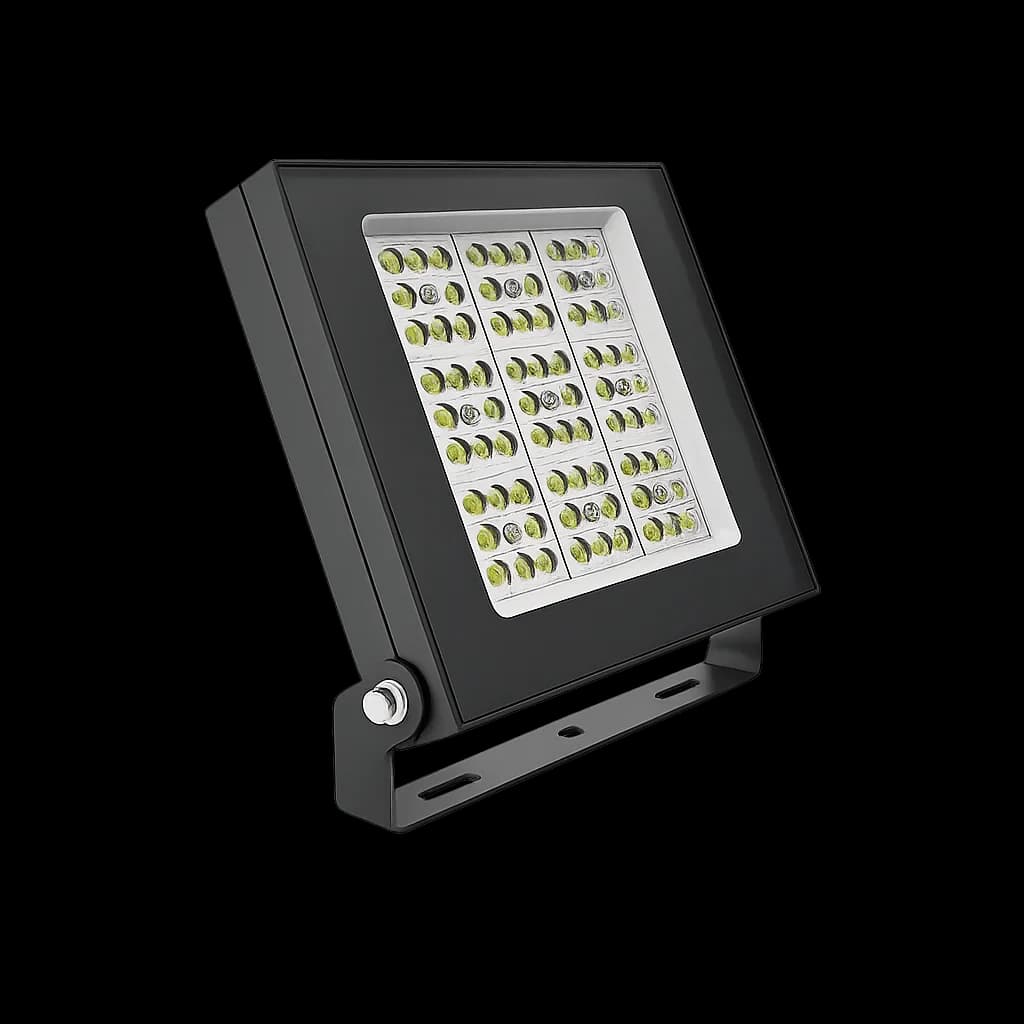

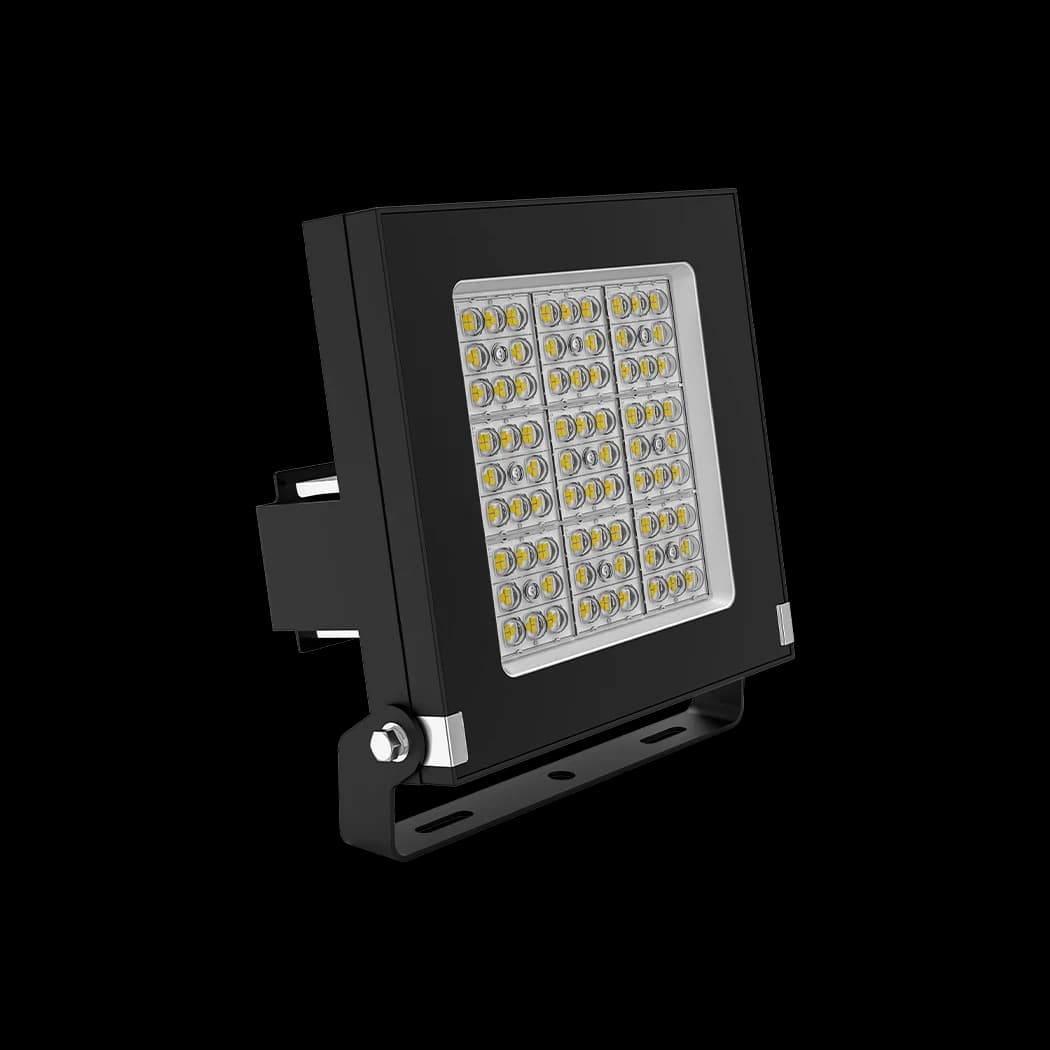

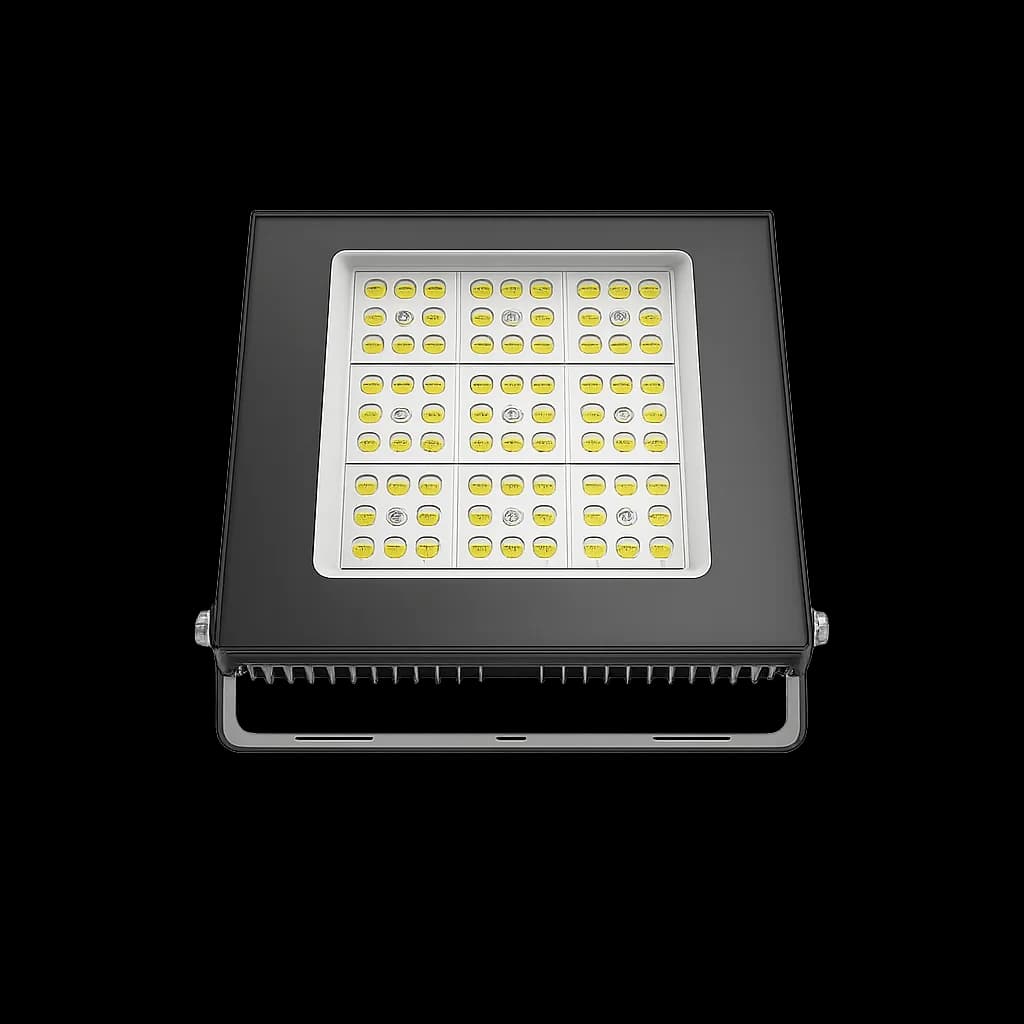

Venus Projection Light
1 / 5
Compact LED projection flood light for courts, facades, bridges, plazas and advertising boards, with 200-300 W output and 60 degree optics.
| Power | 200 W / 300 W |
| Luminous flux | 30000 lm / 45000 lm |
| Light efficiency | 150 lm/W |
| Input voltage | AC 180-265 V |
| Colour temperature | 3000 K / 6500 K |
| Beam angle | 60 degrees |
| Application | Indoor and outdoor courts, Building facades, Bridges, Plazas |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency
- 150 lm/W
- Power factor
- PF > 0.95
- CRI
- Ra >= 80
Electrical
- Input voltage
- AC 180-265 V
Configuration
- CCT
- 3000 K / 6500 K
- Beam angle
- 60 degrees
Model-specific differences
TG-QMX-0300-N01L
- Power
- 300 W
- Product size
- 325.2 x 305.5 x 103.8 mm
- Luminous flux
- 45000 lm

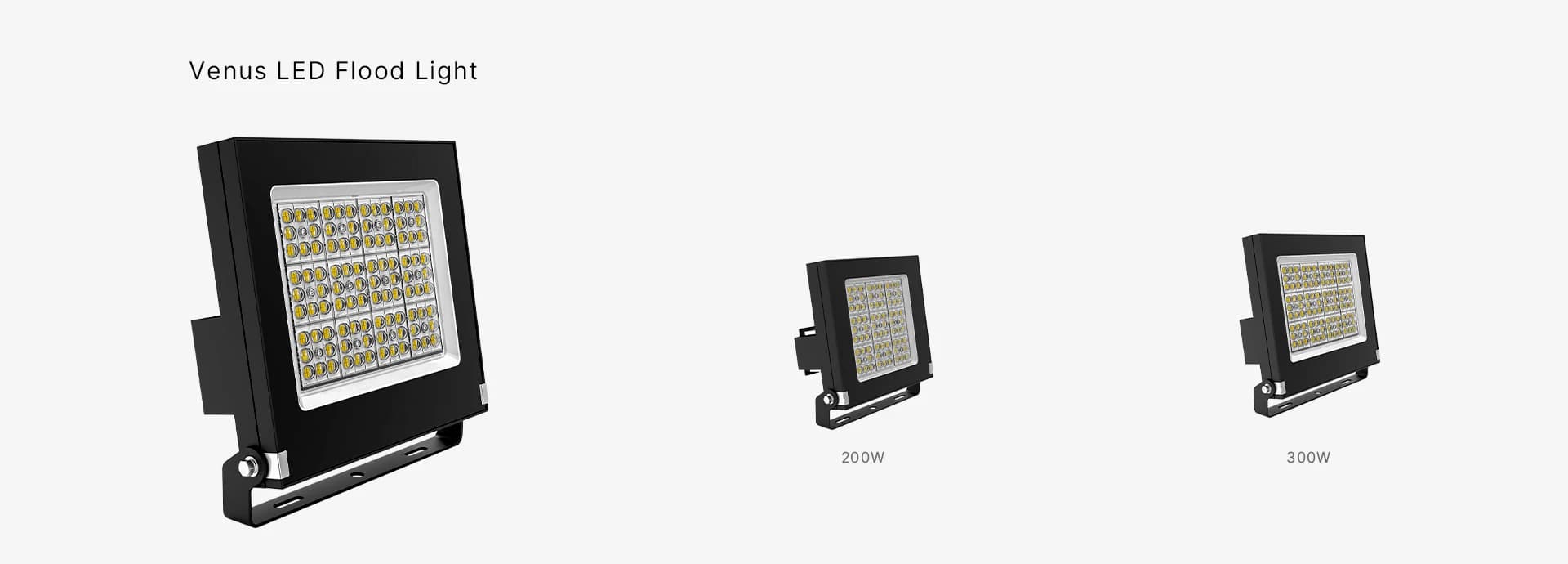

| Model | Power | Product size | Luminous flux |
|---|---|---|---|
| TG-QMX-0200-N01L | 200 W | 274.2 x 255.5 x 105.8 mm | 30000 lm |
| TG-QMX-0300-N01L | 300 W | 325.2 x 305.5 x 103.8 mm | 45000 lm |
Downloads
Venus Projection Light Datasheet
PDF specification sheet
DatasheetOpen PDF
TG-QMX-0100-N01L Photometric Report
PDF photometric test report
Photometric reportOpen PDF
TG-QMX-0200-N01L Photometric Report
PDF photometric test report
Photometric reportOpen PDF
TG-QMX-0300-N01L Photometric Report
PDF photometric test report
Photometric reportOpen PDF
Product features
Why this series matters
01

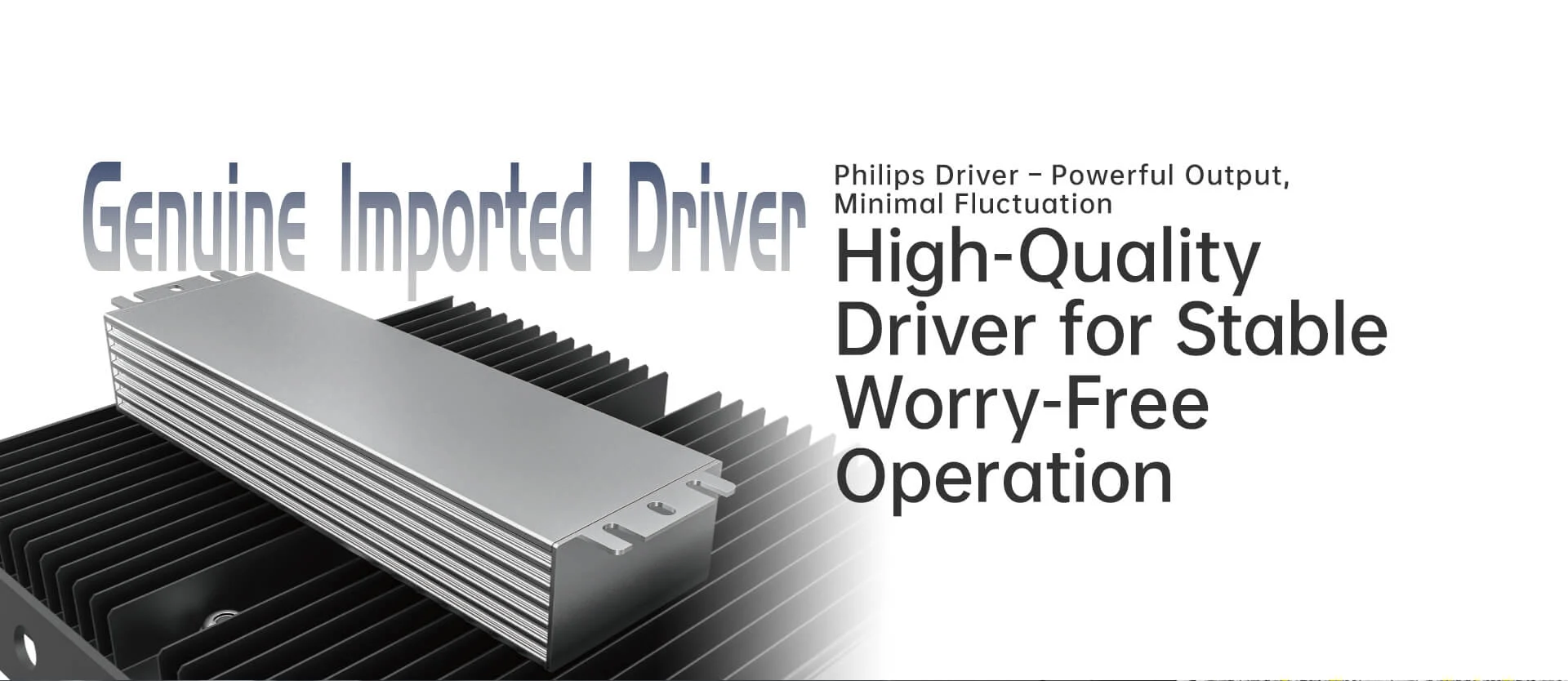

High-quality driver package
The donor material highlights a stable driver package; DinaLED should confirm the final driver brand and electrical configuration before quote release.
02

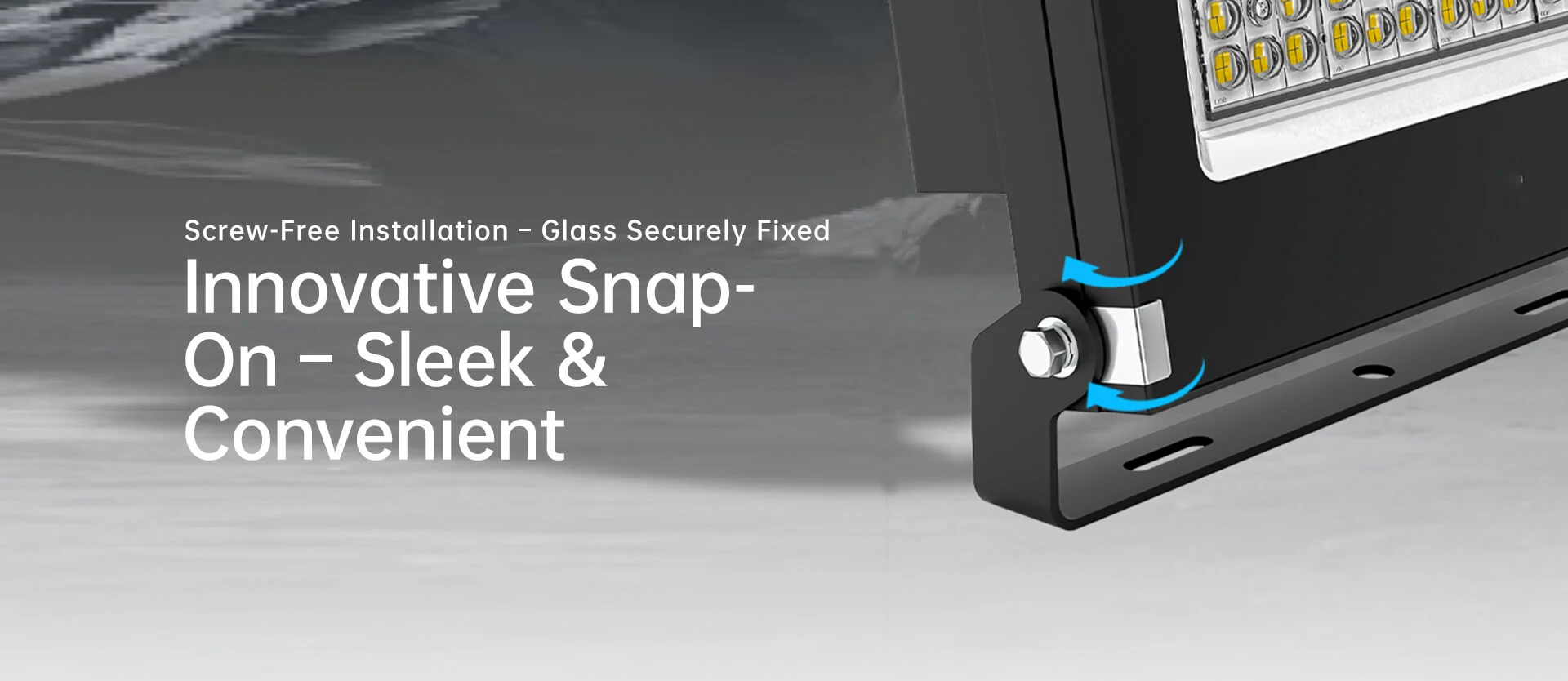

Screw-free glass fixing
Snap-on fixing helps secure the glass cover without front screws, supporting cleaner assembly and service access.
03

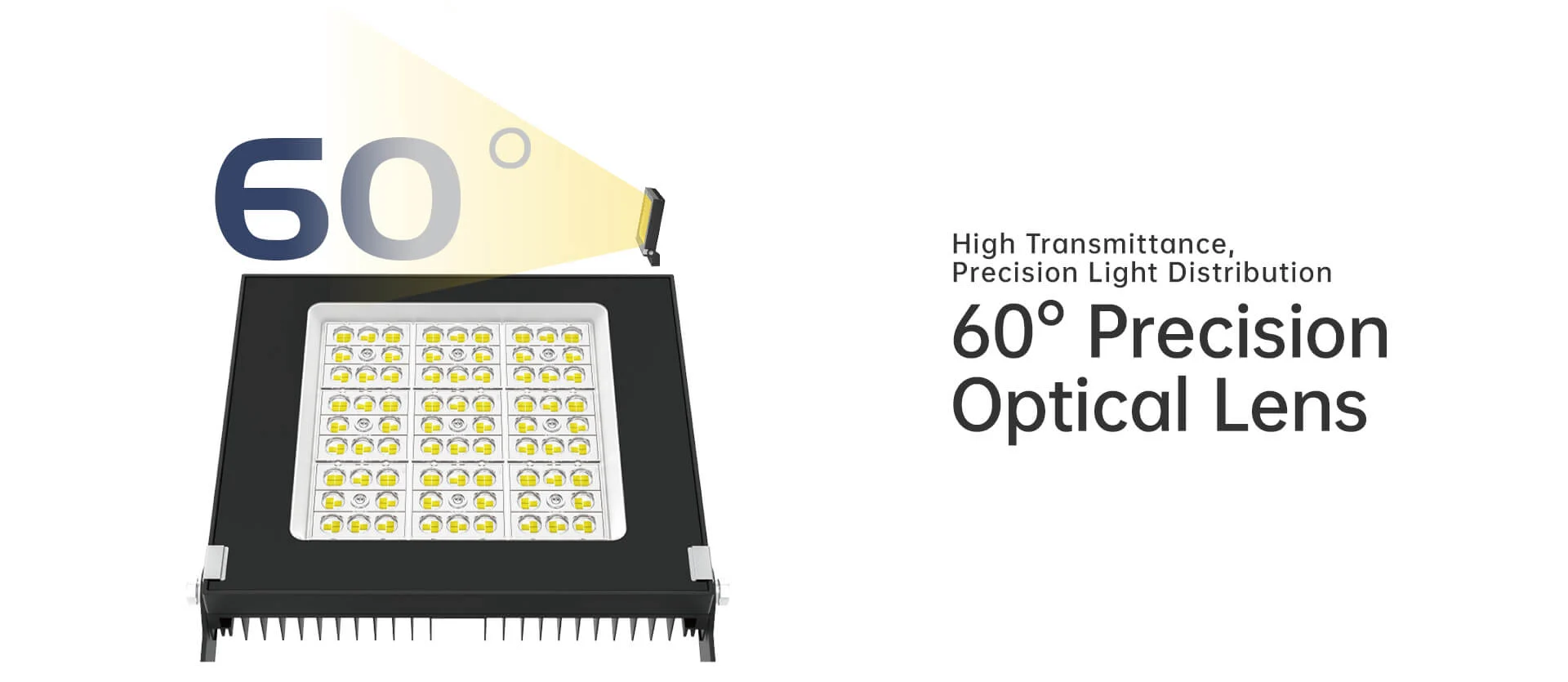

60 degree precision optics
The listed 60 degree lens supports broad light distribution for facade, court, plaza and billboard projection.
04

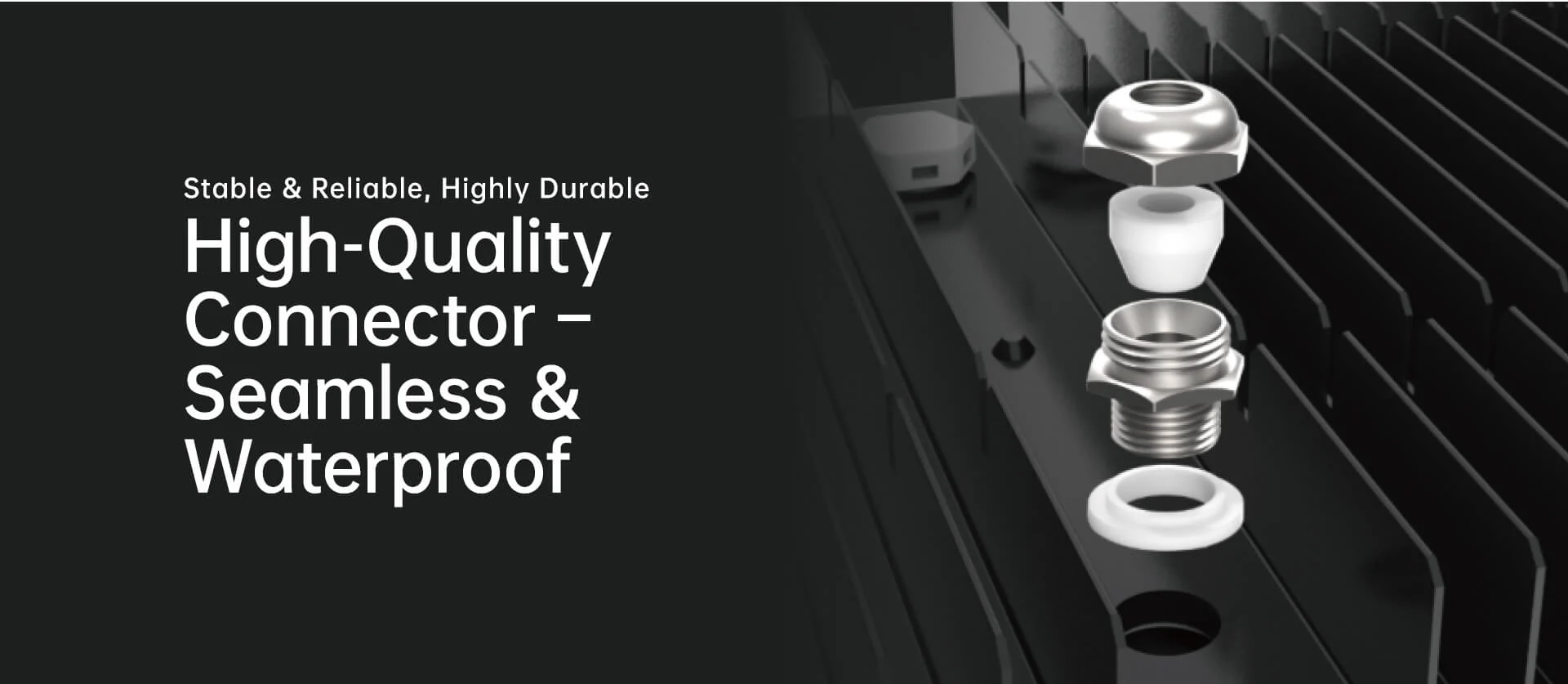

Waterproof connector detail
The connector graphic shows a sealed structure intended for moisture-prone outdoor installation conditions.
05

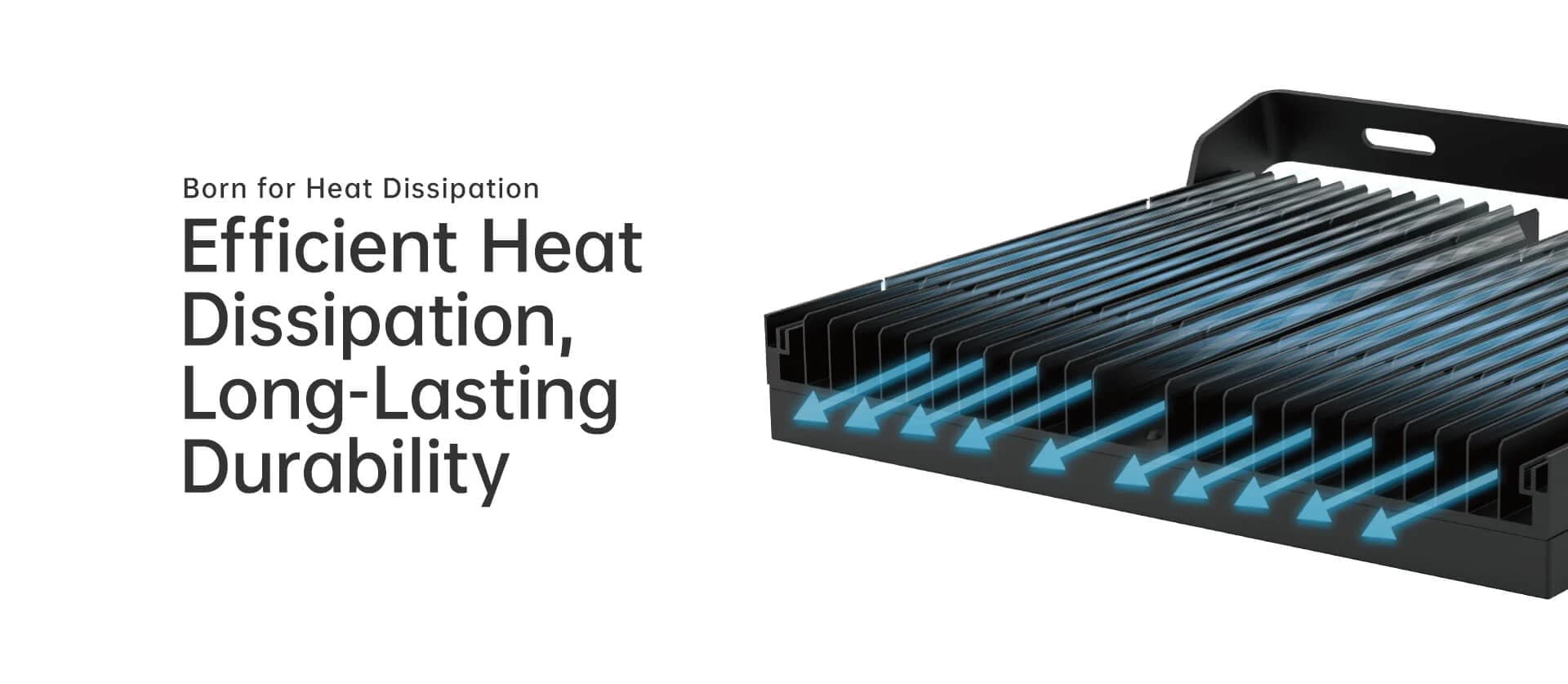

Efficient heat dissipation
Rear fin geometry supports thermal transfer and stable operation in higher-output flood lighting projects.
Zeus LED Multipurpose Projection Light
High-output LED projection light for outdoor area and facade projects.
Gaia S LED Flood Light
Low-profile IP65 LED flood light for facades, bridges, plazas, parks and billboards, with 50-200 W output and a 120 degree beam.
Polaris LED Flood Light
High-power modular LED flood light for stadiums, courts, squares, ports and buildings, with 100-1500 W output and multiple beam angles.

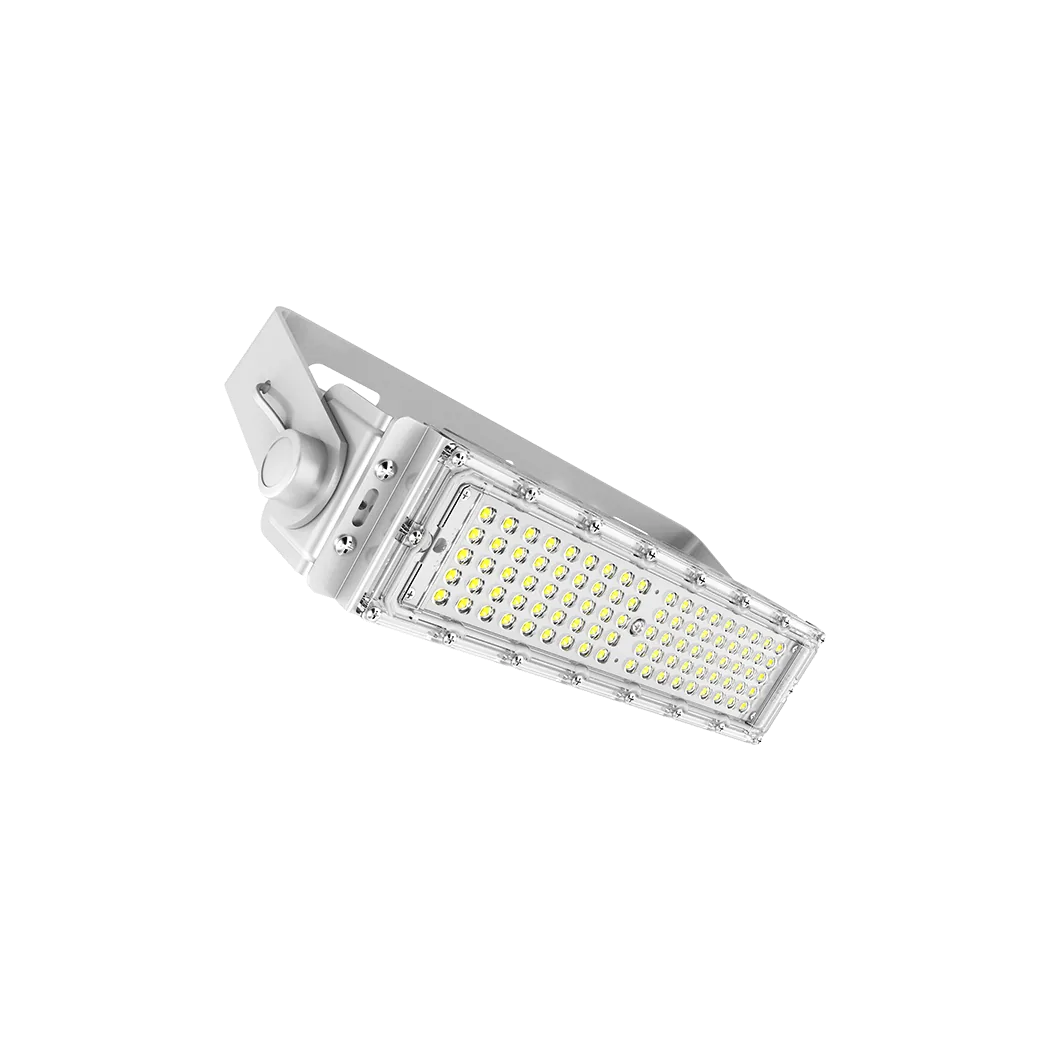

SD2D LED Spot Light
