100 W
- Power
- 100 W
- Product size
- Ø230 x 71 mm

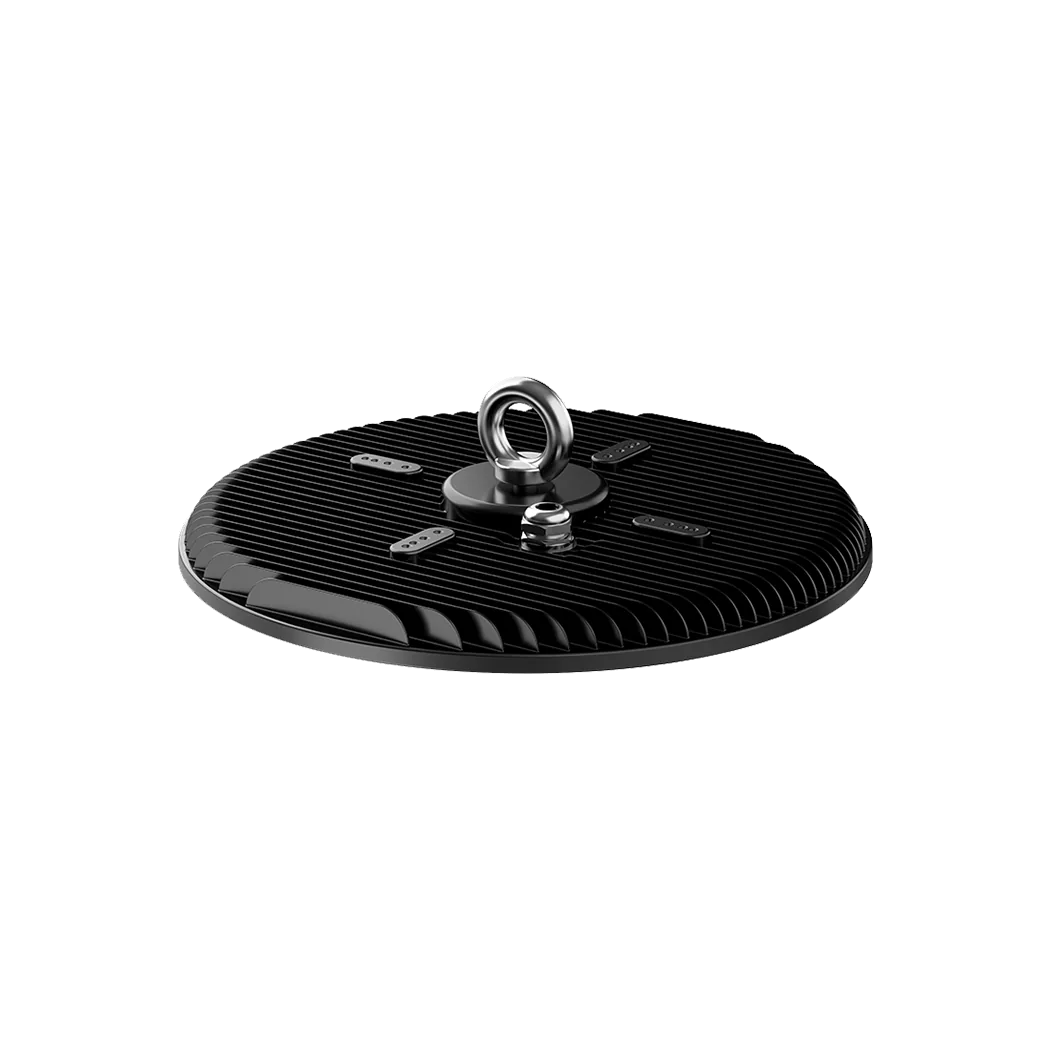

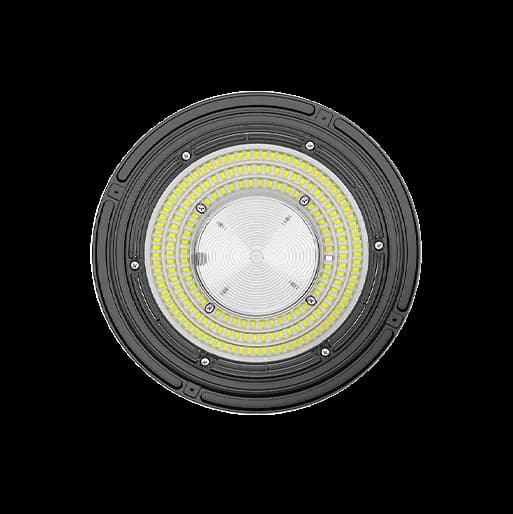

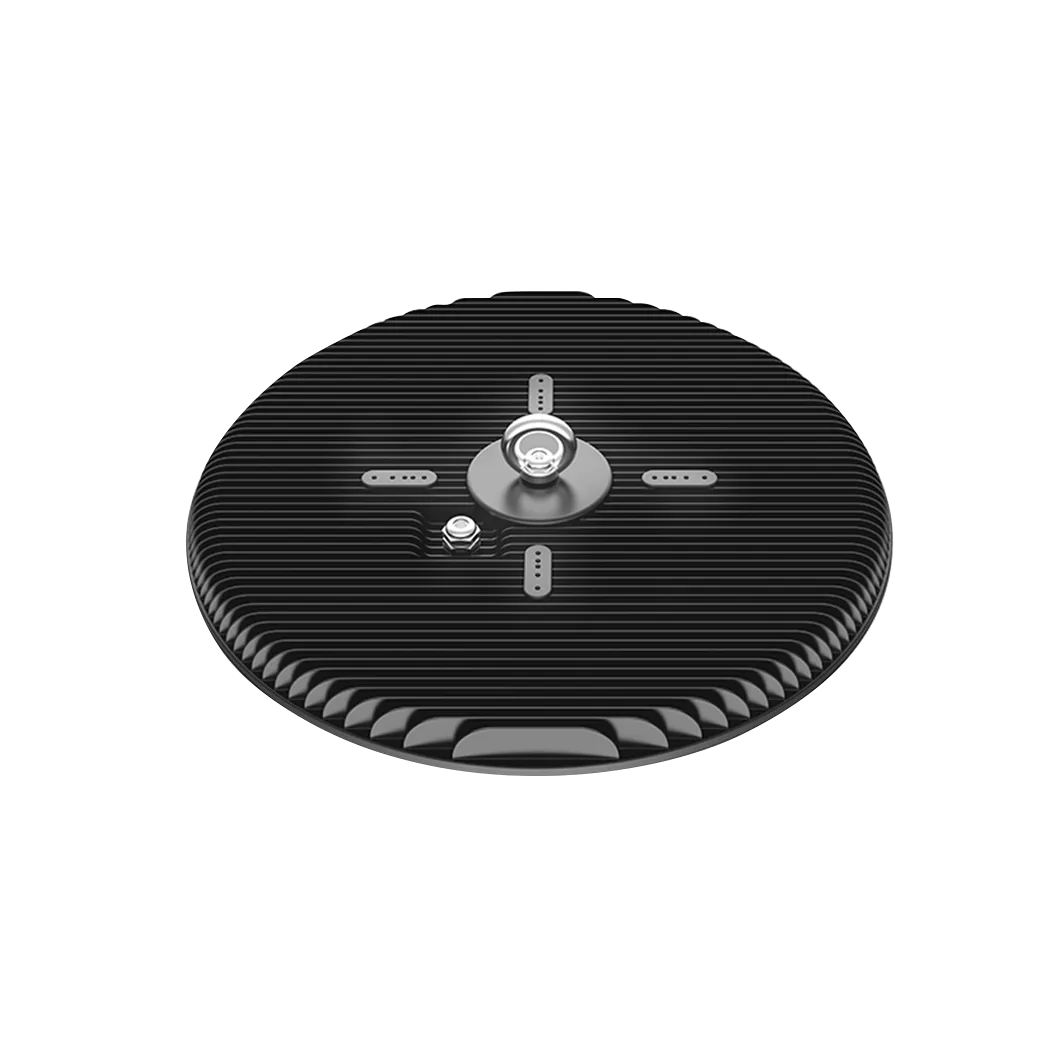

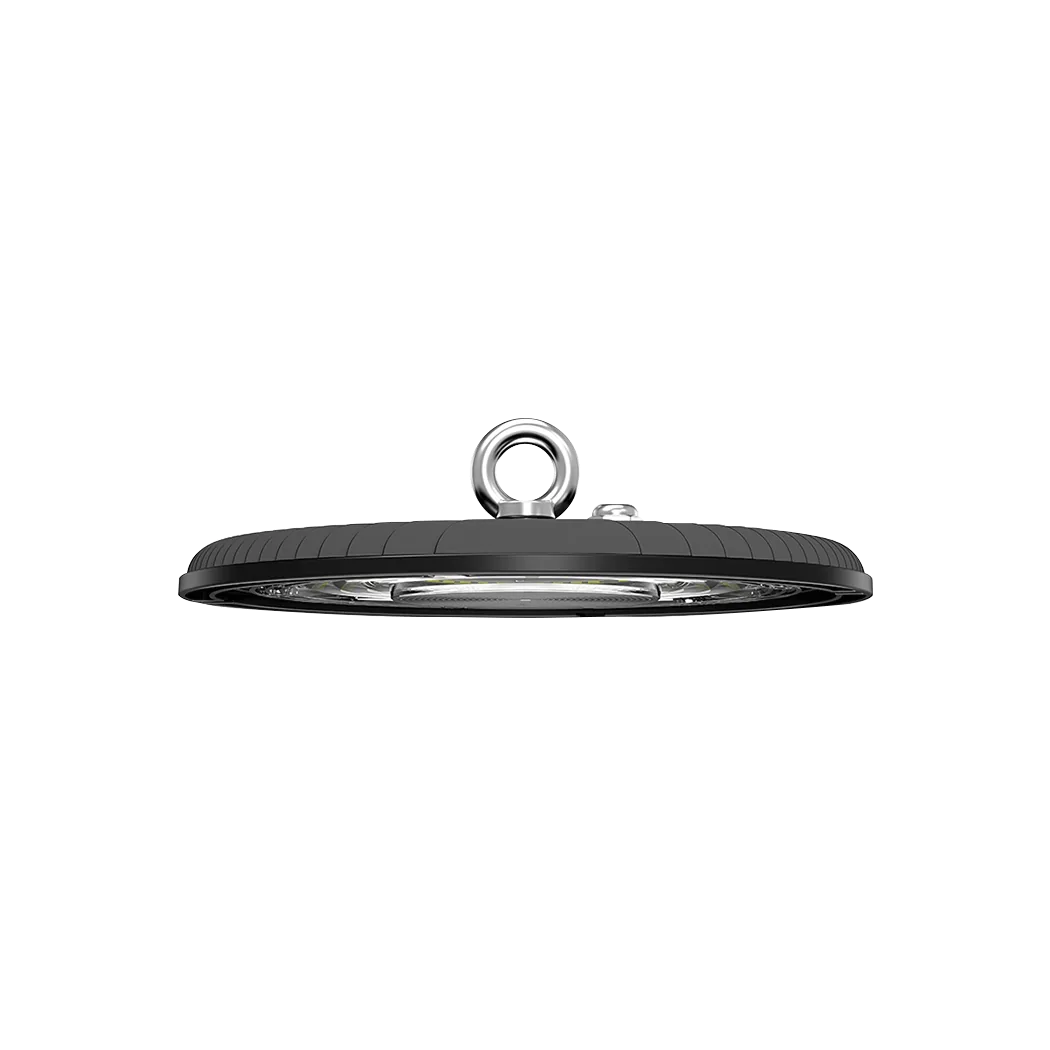

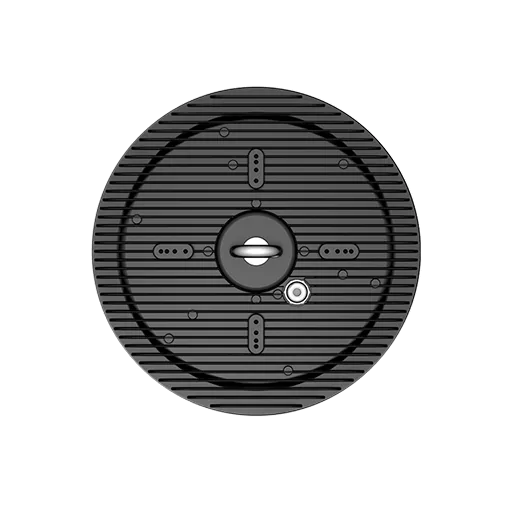

Venus LED High Bay Light
1 / 6
Compact circular high bay series for economical warehouse and workshop lighting.
| Power | 100 W / 150 W / 200 W / 300 W |
| Light efficiency | 100 lm/W |
| Input voltage | AC 220-240 V |
| Colour temperature | 6000 K |
| Beam angle | 60 / 90 / 120 degrees |
| Protection | IP65 |
| Application | Warehouses, Workshops, Retail halls, Indoor courts |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency
- 100 lm/W
Electrical
- Input voltage
- AC 220-240 V
Configuration
- Beam angle
- 60 / 90 / 120 degrees
Model-specific differences
150 W
- Power
- 150 W
- Product size
- Ø275 x 71 mm
200 W
- Power
- 200 W
- Product size
- Ø316 x 71 mm
300 W
- Power
- 300 W
- Product size
- Not published

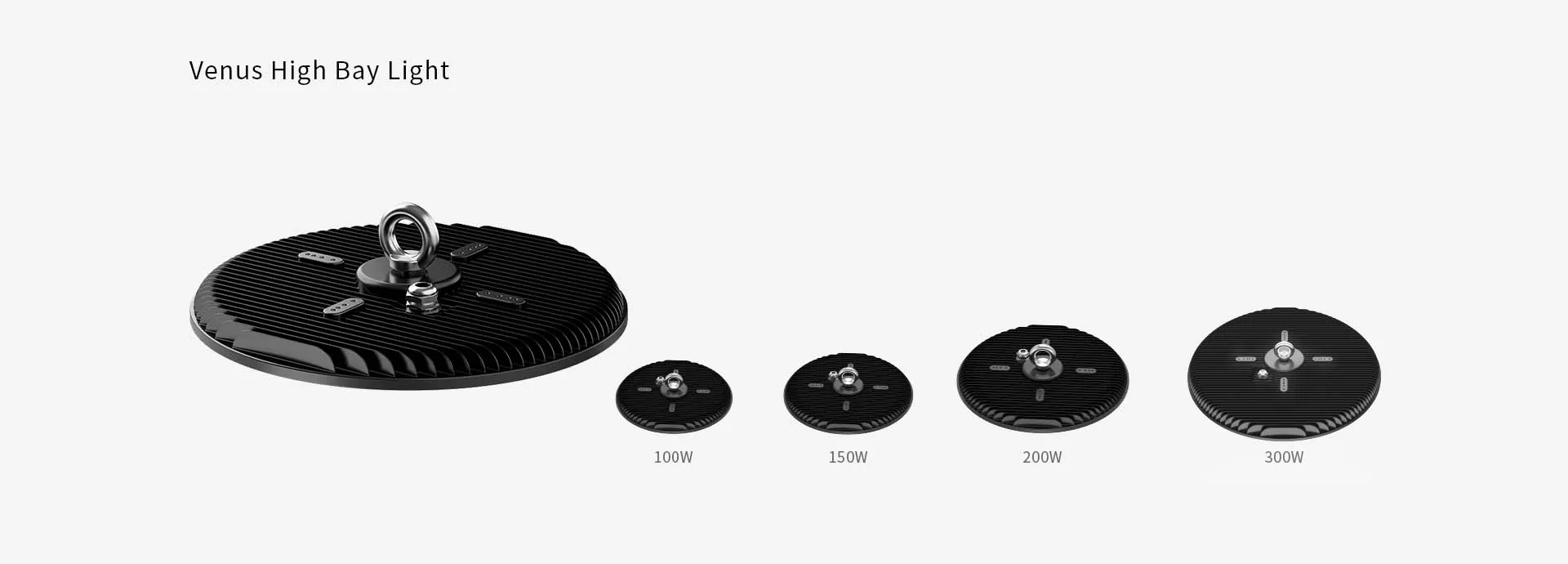

| Model | Power | Product size |
|---|---|---|
| 100 W | 100 W | Ø230 x 71 mm |
| 150 W | 150 W | Ø275 x 71 mm |
| 200 W | 200 W | Ø316 x 71 mm |
| 300 W | 300 W | Not published |
Downloads
Technical documentation
Available on request
DatasheetAvailable on request
Product features
Why this series matters
01
3 kV surge protection
The CPS material lists 3 kV surge protection and constant-current safeguarding.
02

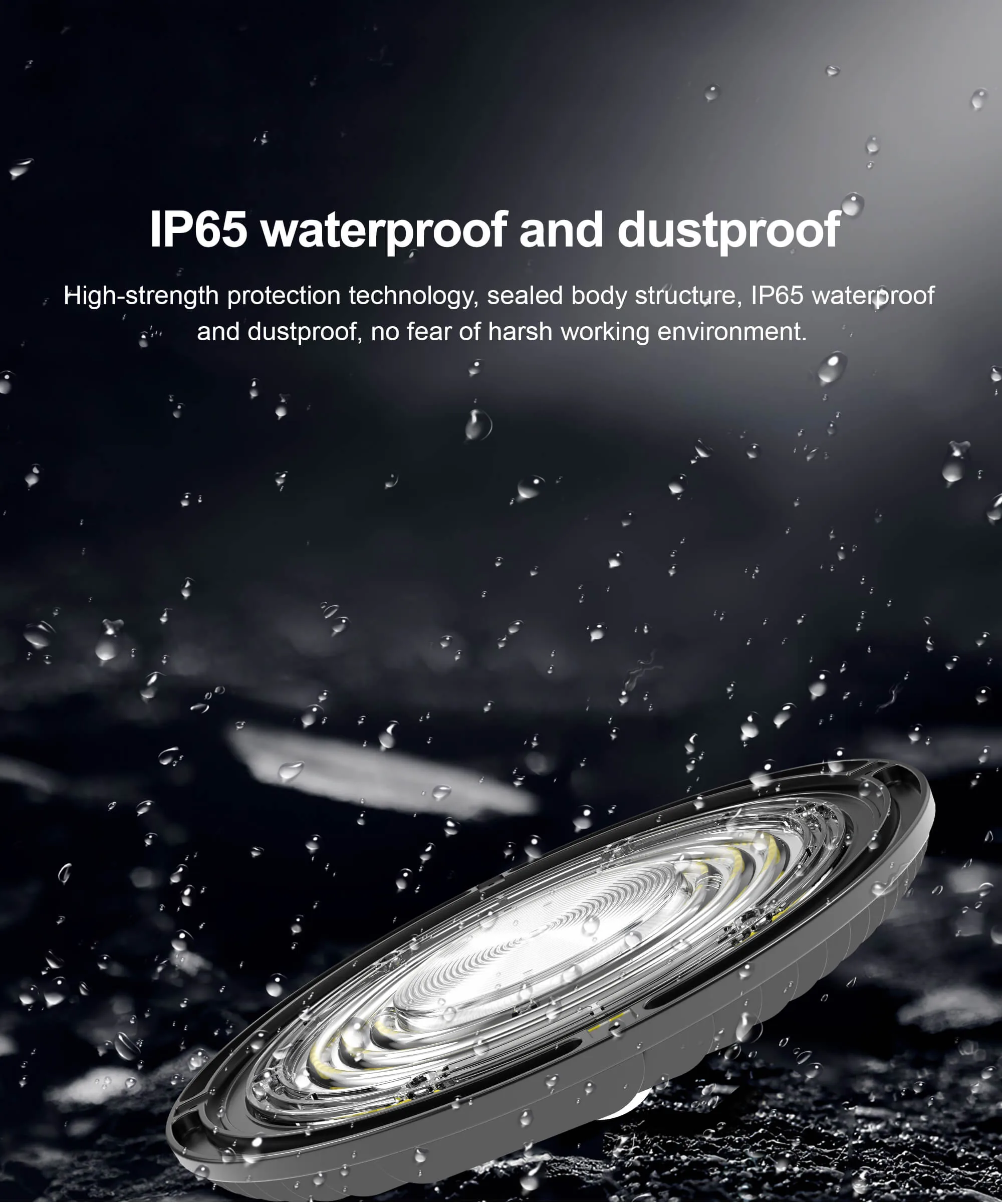

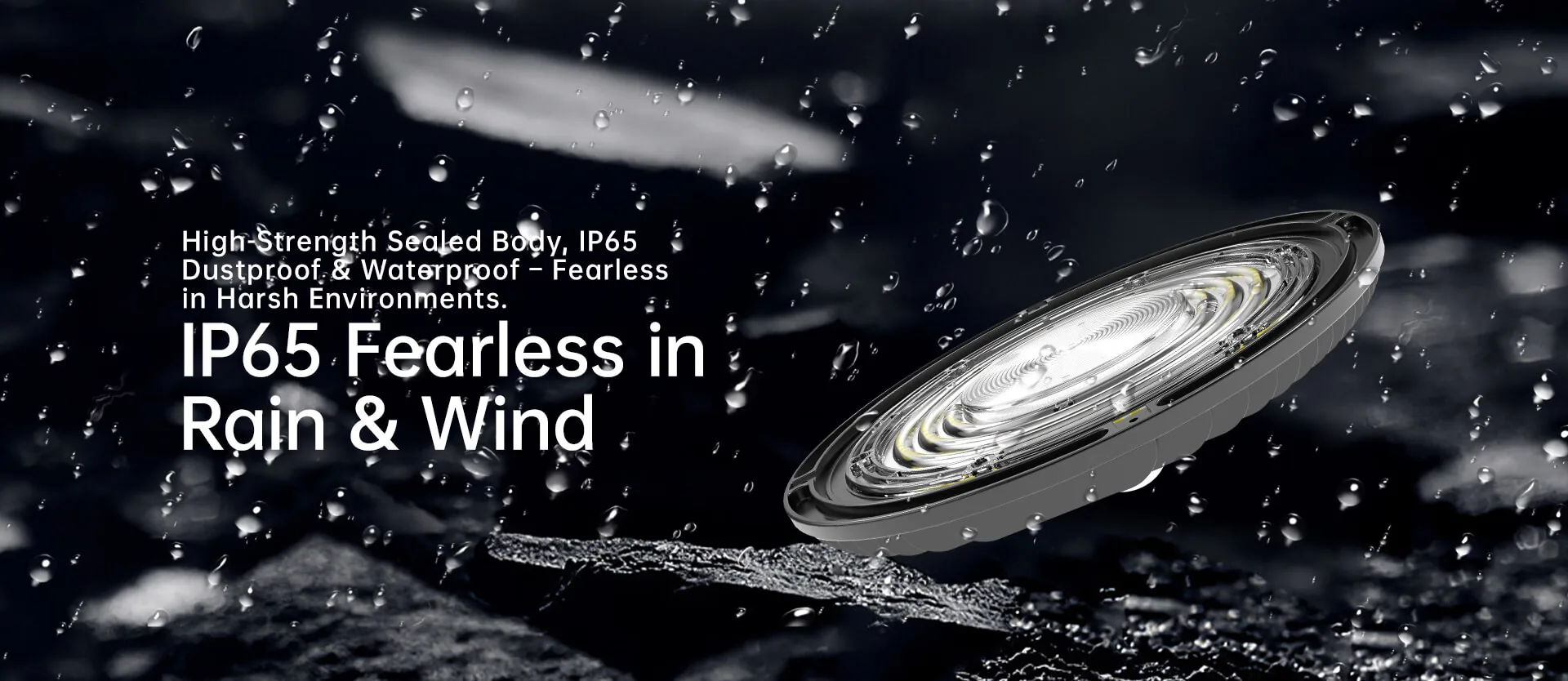

IP65 rain and wind protection
Housing material highlights IP65 protection for exposed installations.
03

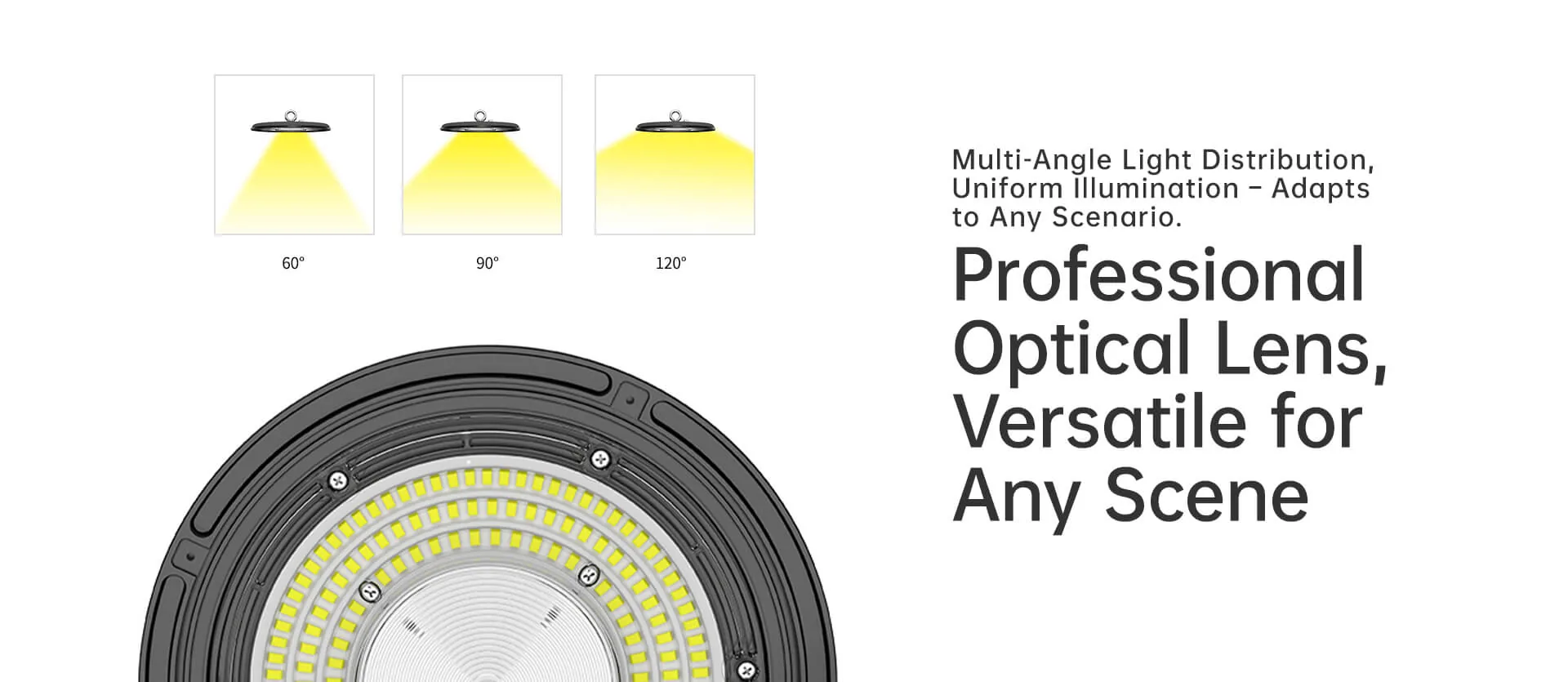

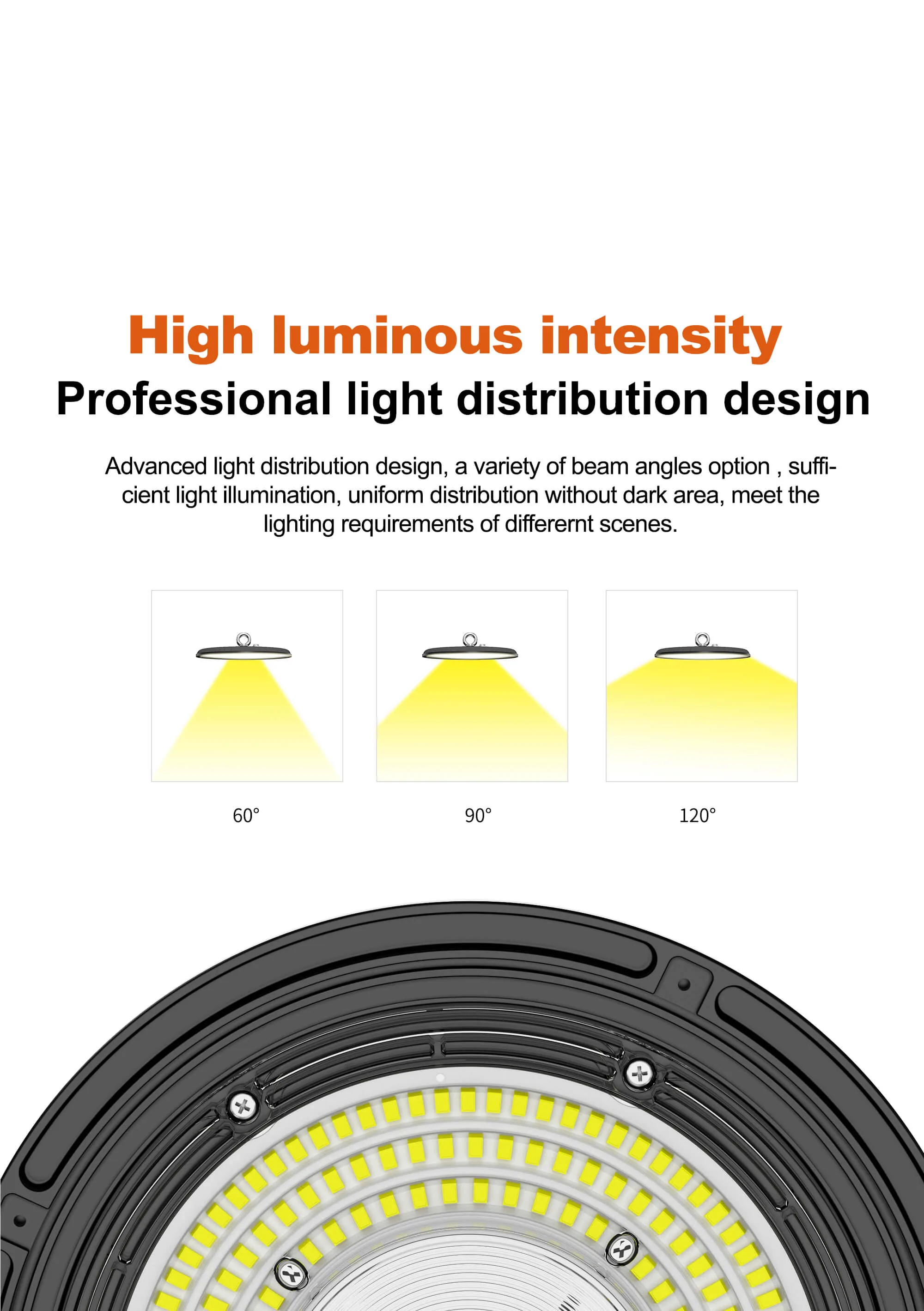

Optical lens options
Multiple optical distributions support different mounting and coverage requirements.
04

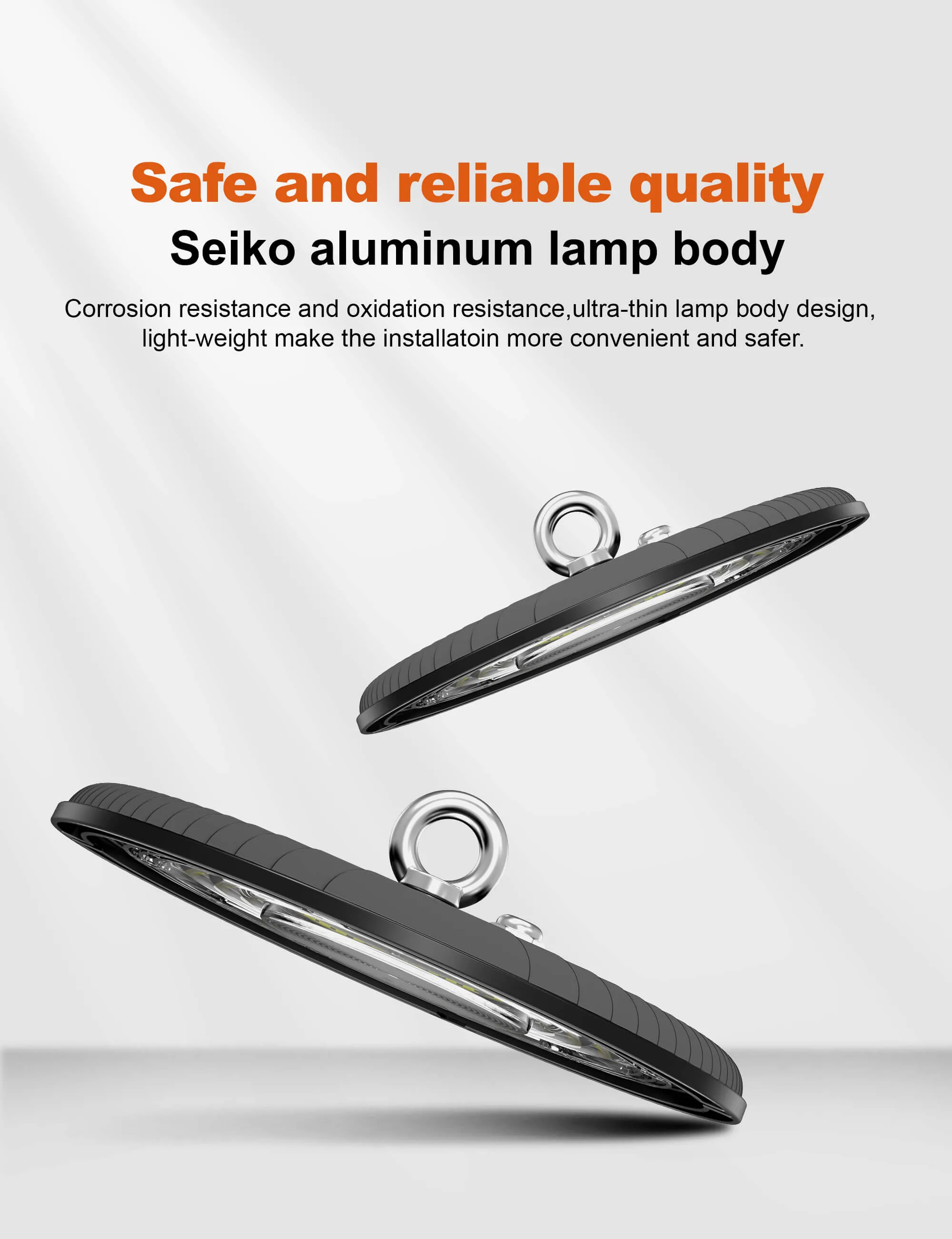

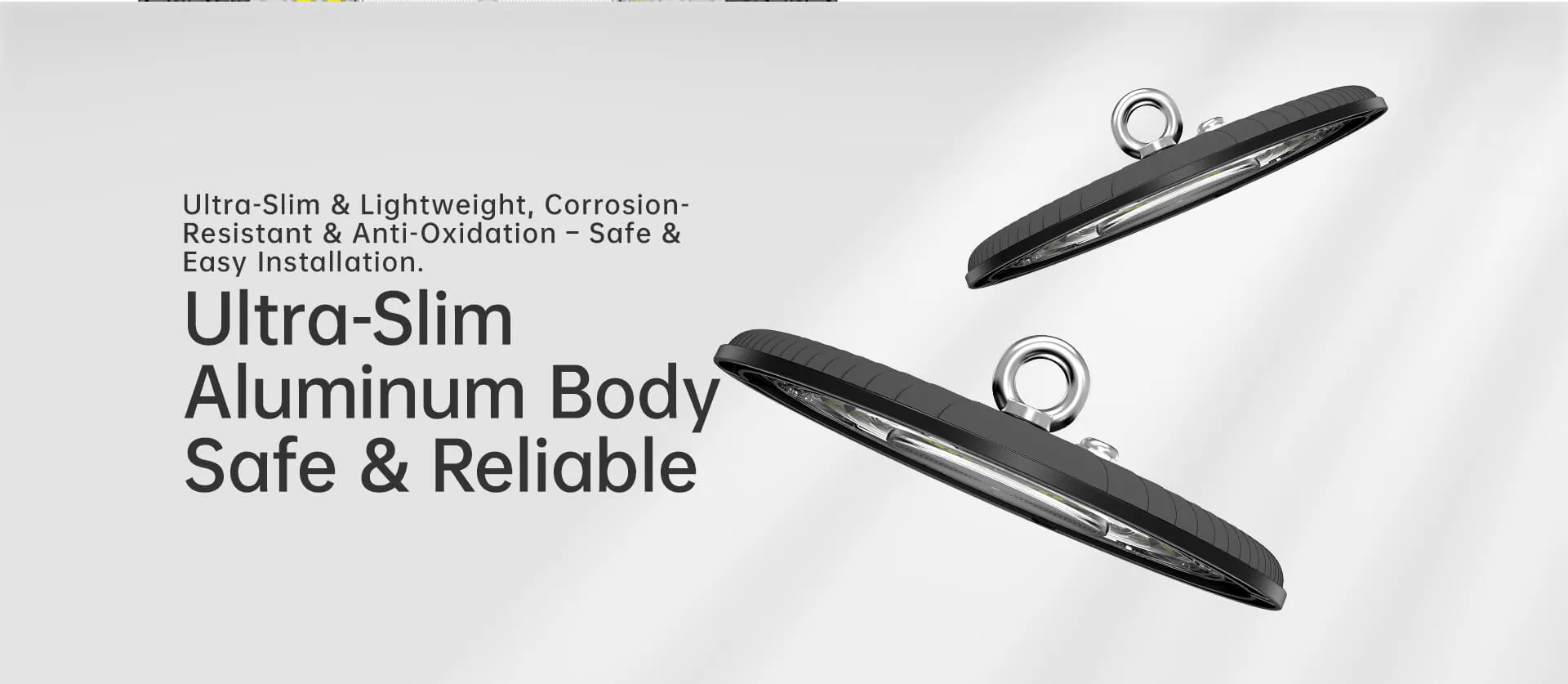

Ultra-slim aluminium body
Slim aluminium construction combines a low profile with structural reliability.
05

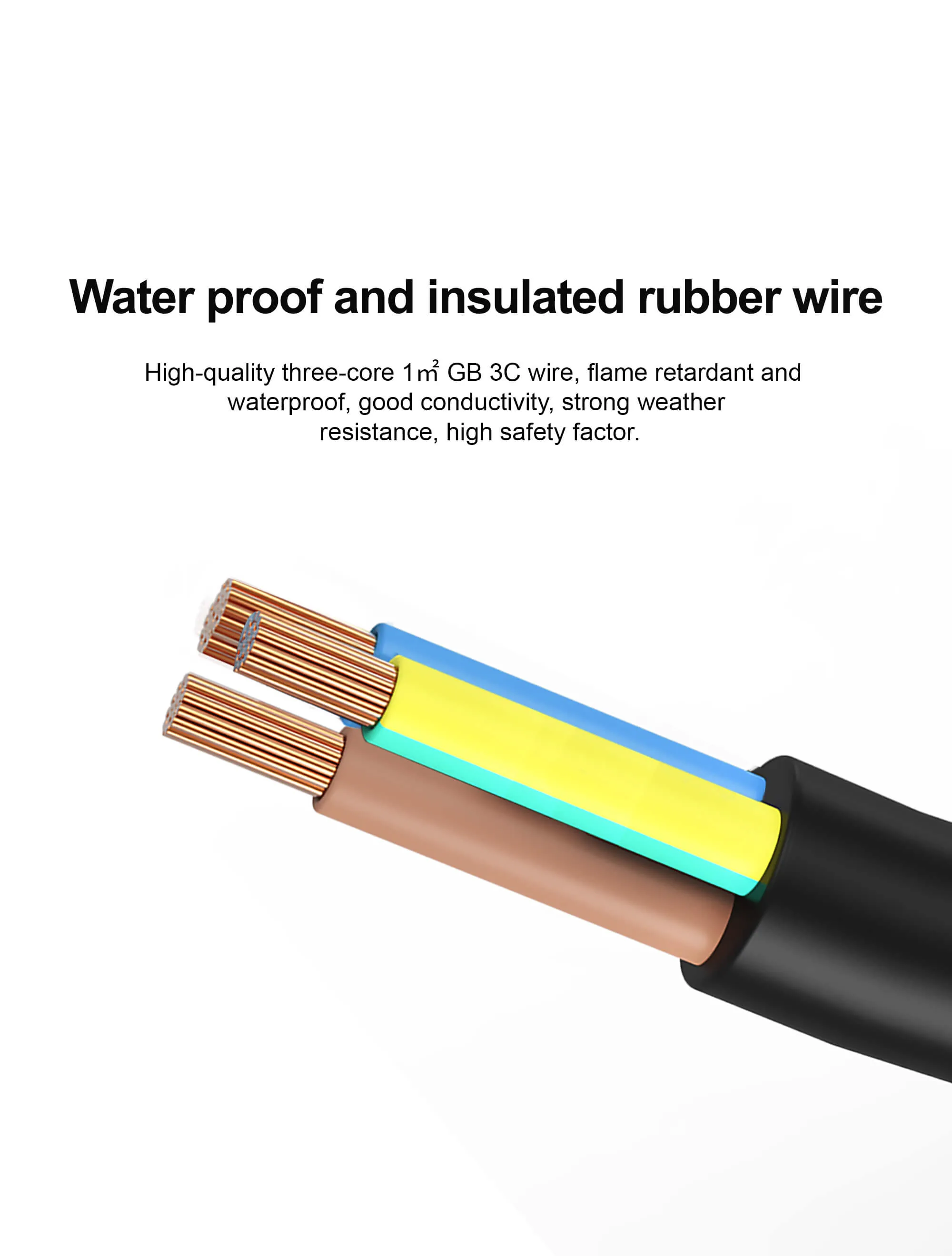

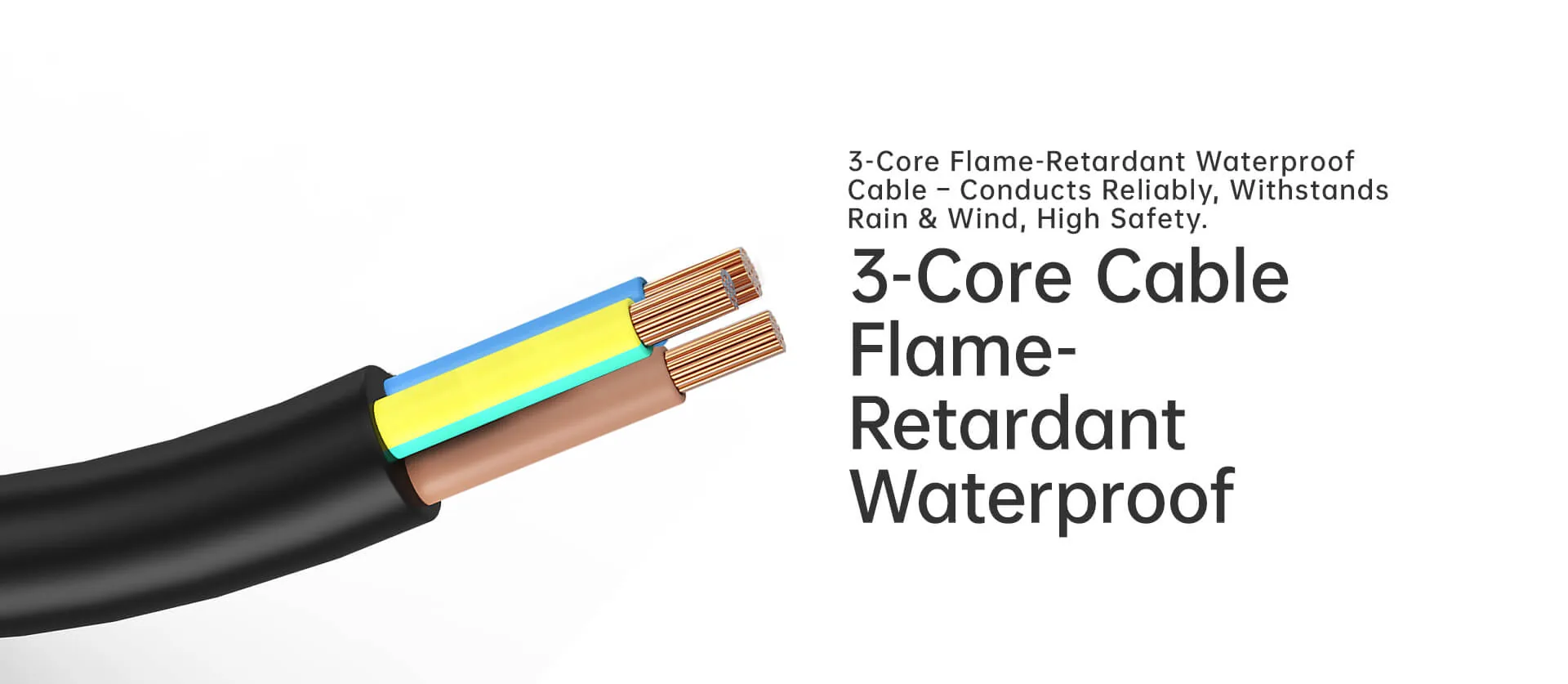

Waterproof three-core cable
Flame-retardant three-core cable supports a protected power connection.
06

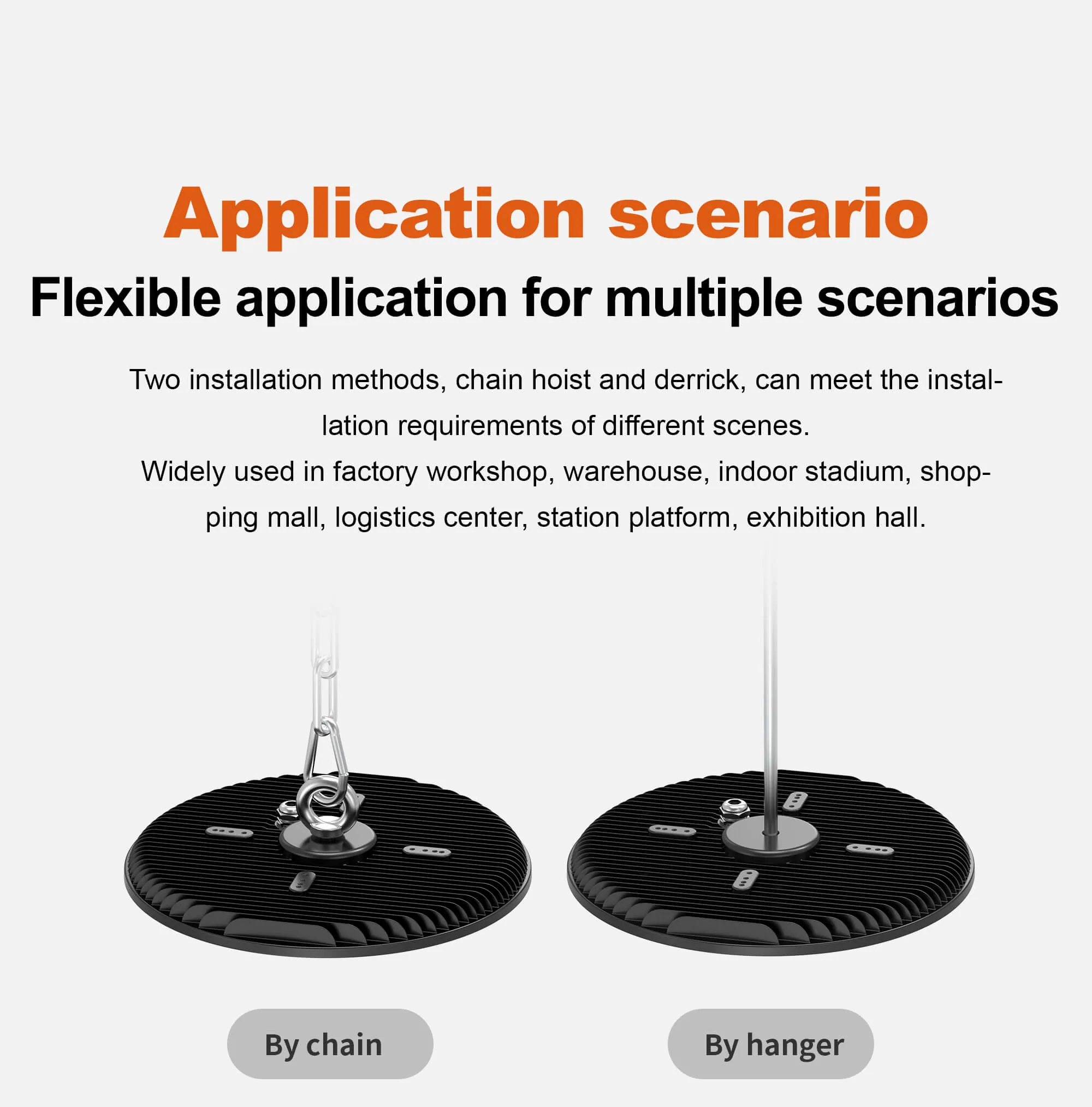

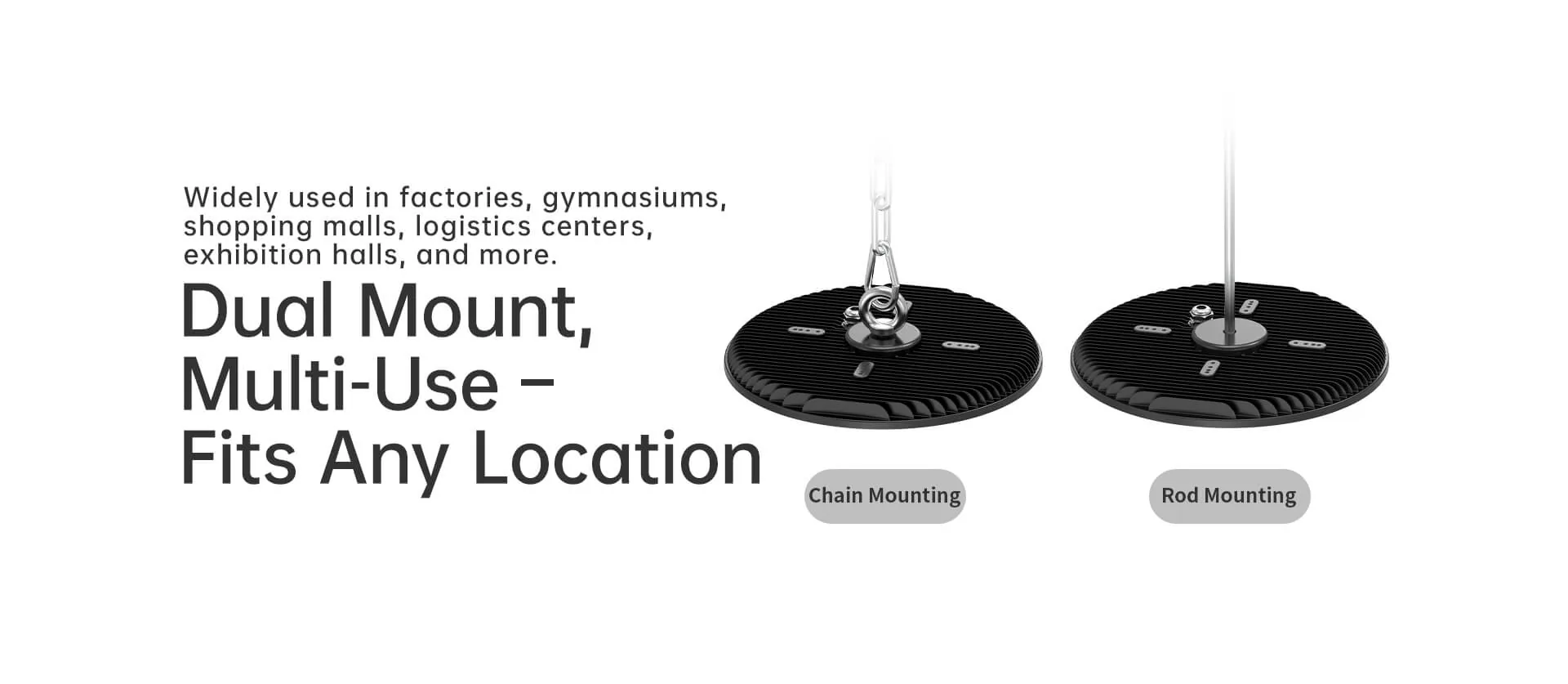

Dual mounting options
Two mounting configurations support project-specific installation.
