CNX-0100-S01S
- Power
- 100 W
- Product size
- ⌀ 420 x 256 mm
- Luminous flux
- 8000 lm

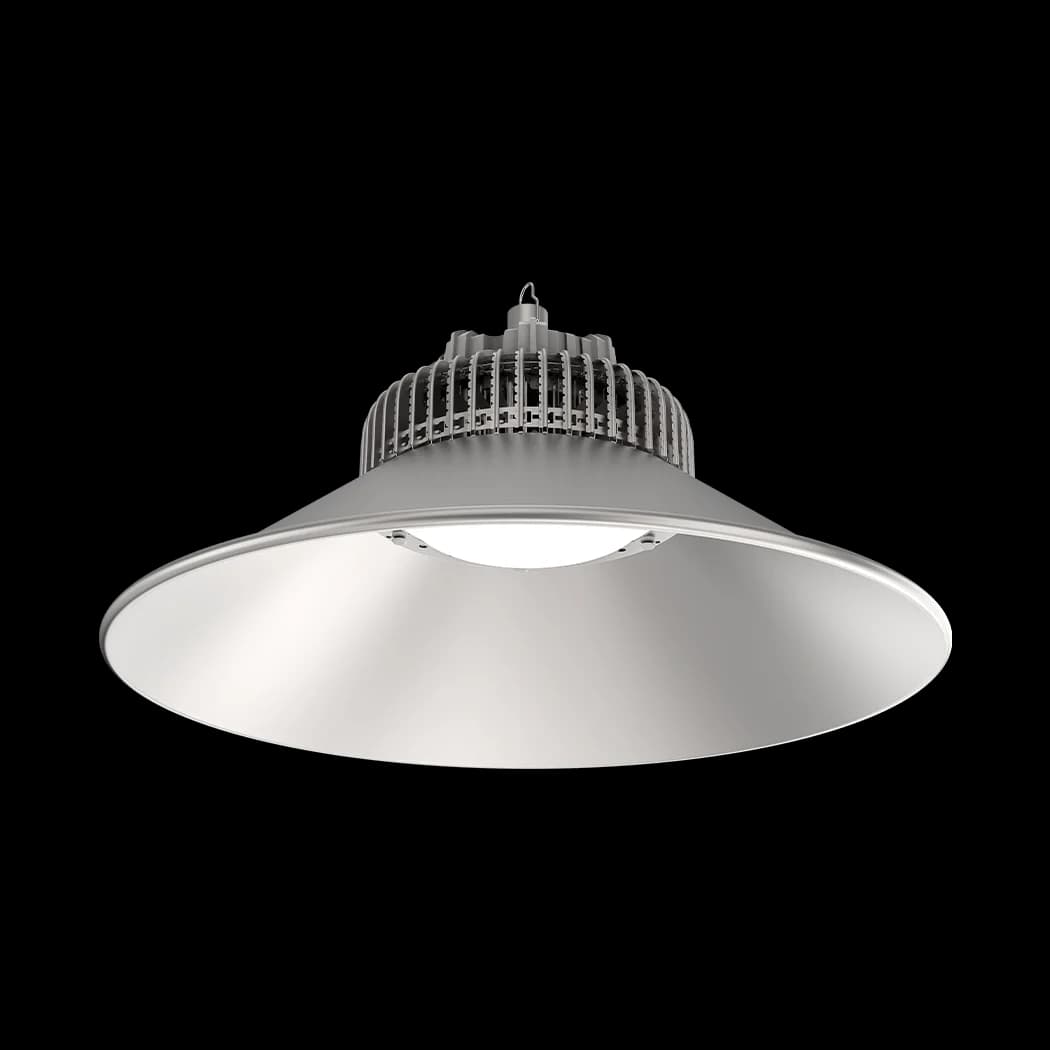

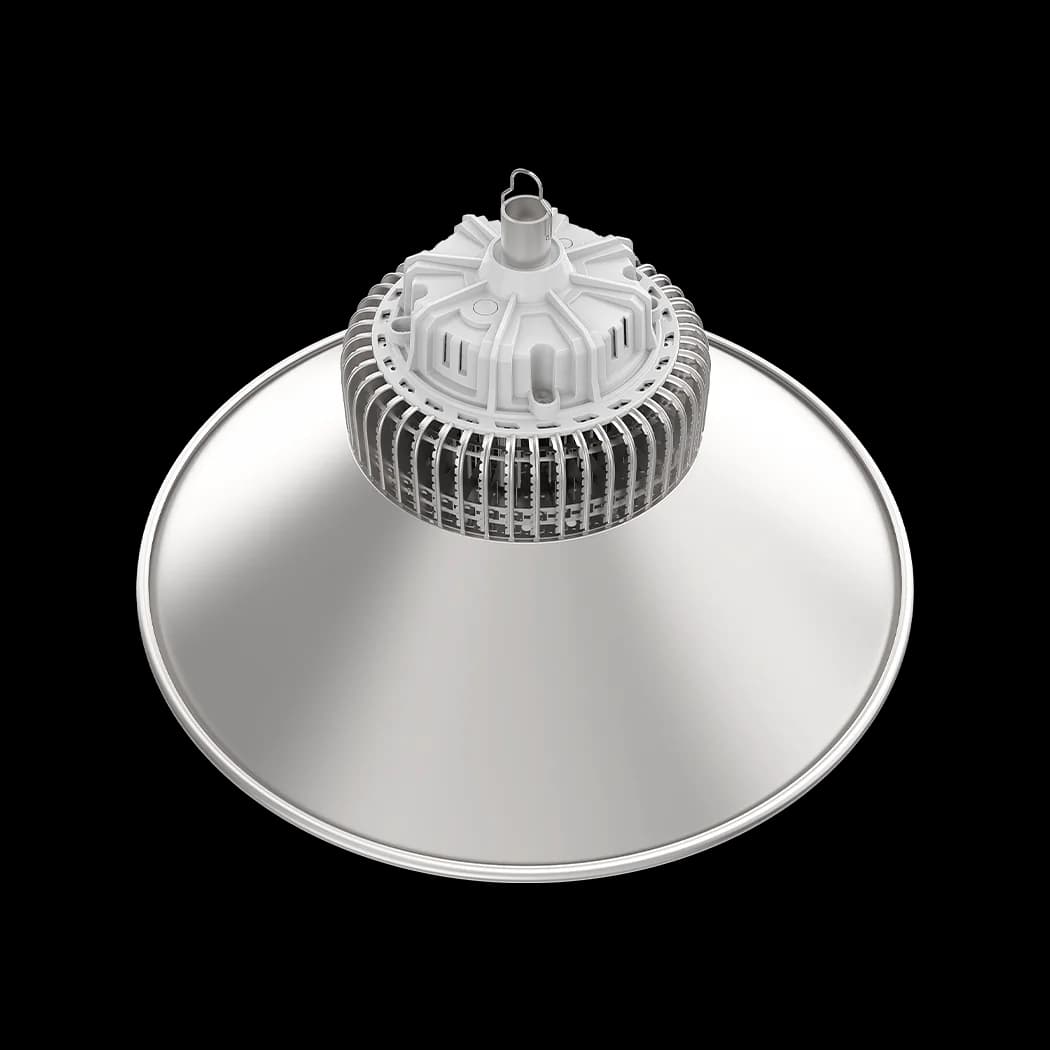

Gaia S High Bay Light
1 / 5
Anti-glare LED high bay light for factories, warehouses, courts and market halls, with chain or rod mounting and a 100 degree beam.
| Power | 100 W / 150 W / 200 W |
| Luminous flux | 8000 lm to 16000 lm |
| Light efficiency | 80 lm/W |
| Input voltage | AC 220-240 V |
| Colour temperature | 6000 K |

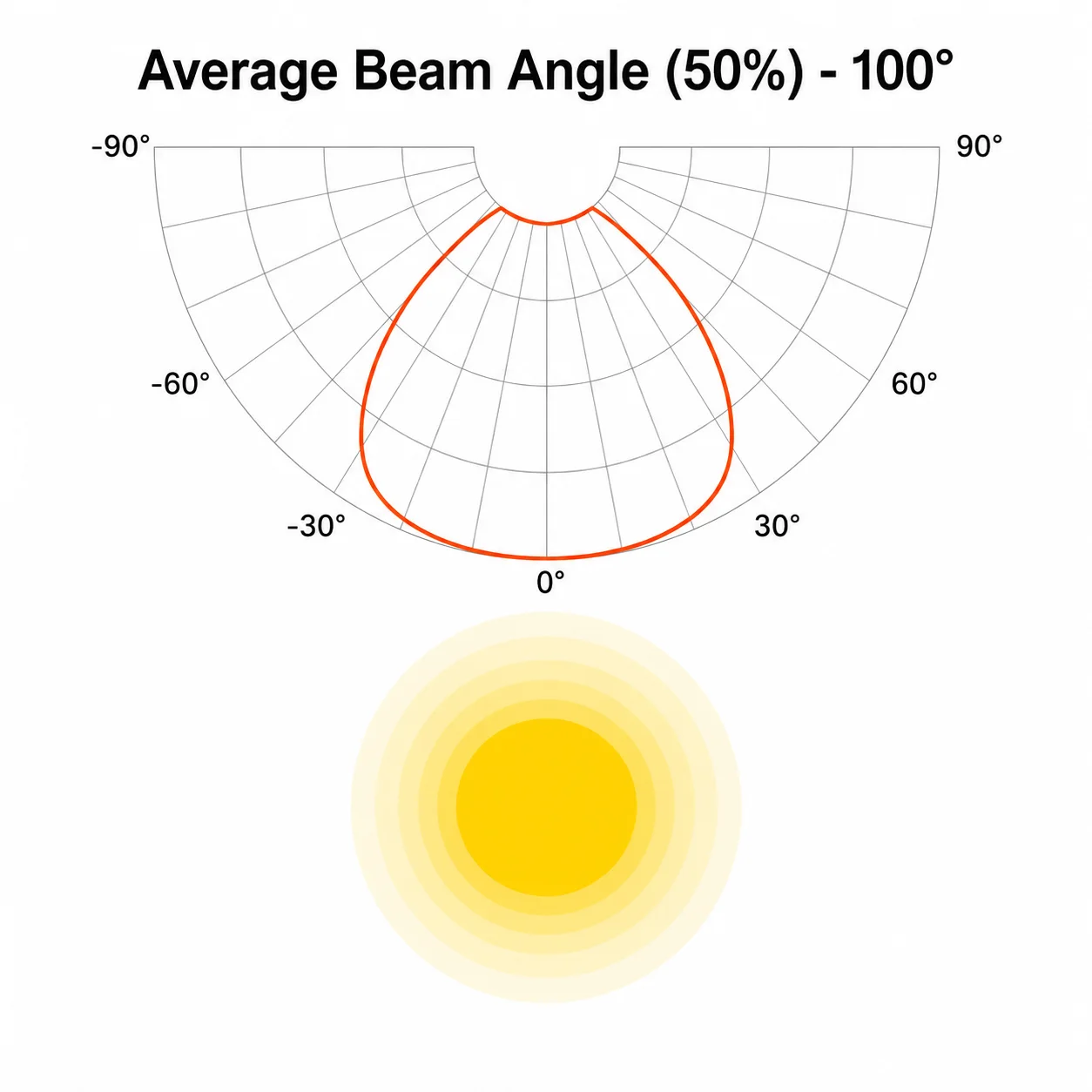

| Beam angle | 100 degrees |
| Mounting | Chain mount / rod mount |
| Application | Factory, Warehouse, Basketball court, Market hall |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency
- 80 lm/W
- Power factor
- >= 0.9
- CRI
- Ra >= 80
Electrical
- Input voltage
- AC 220-240 V
Configuration
- CCT
- 6000 K
- Beam angle
- 100 degrees
Model-specific differences
CNX-0150-S01S
- Power
- 150 W
- Product size
- ⌀ 420 x 282 mm
- Luminous flux
- 12000 lm
CNX-0200-S01S
- Power
- 200 W
- Product size
- ⌀ 457 x 295.6 mm
- Luminous flux
- 16000 lm

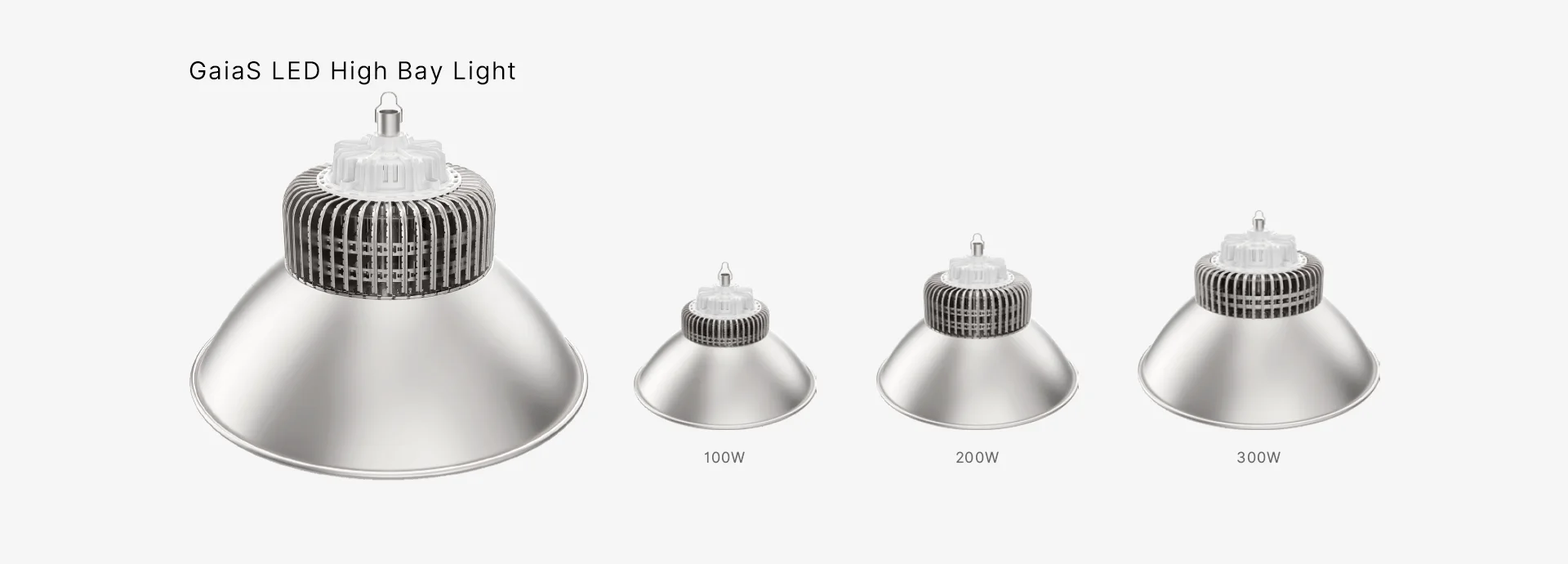

| Model | Power | Product size | Luminous flux |
|---|---|---|---|
| CNX-0100-S01S | 100 W | ⌀ 420 x 256 mm | 8000 lm |
| CNX-0150-S01S | 150 W | ⌀ 420 x 282 mm | 12000 lm |
| CNX-0200-S01S | 200 W | ⌀ 457 x 295.6 mm | 16000 lm |
Downloads
Product features
Why this series matters
01

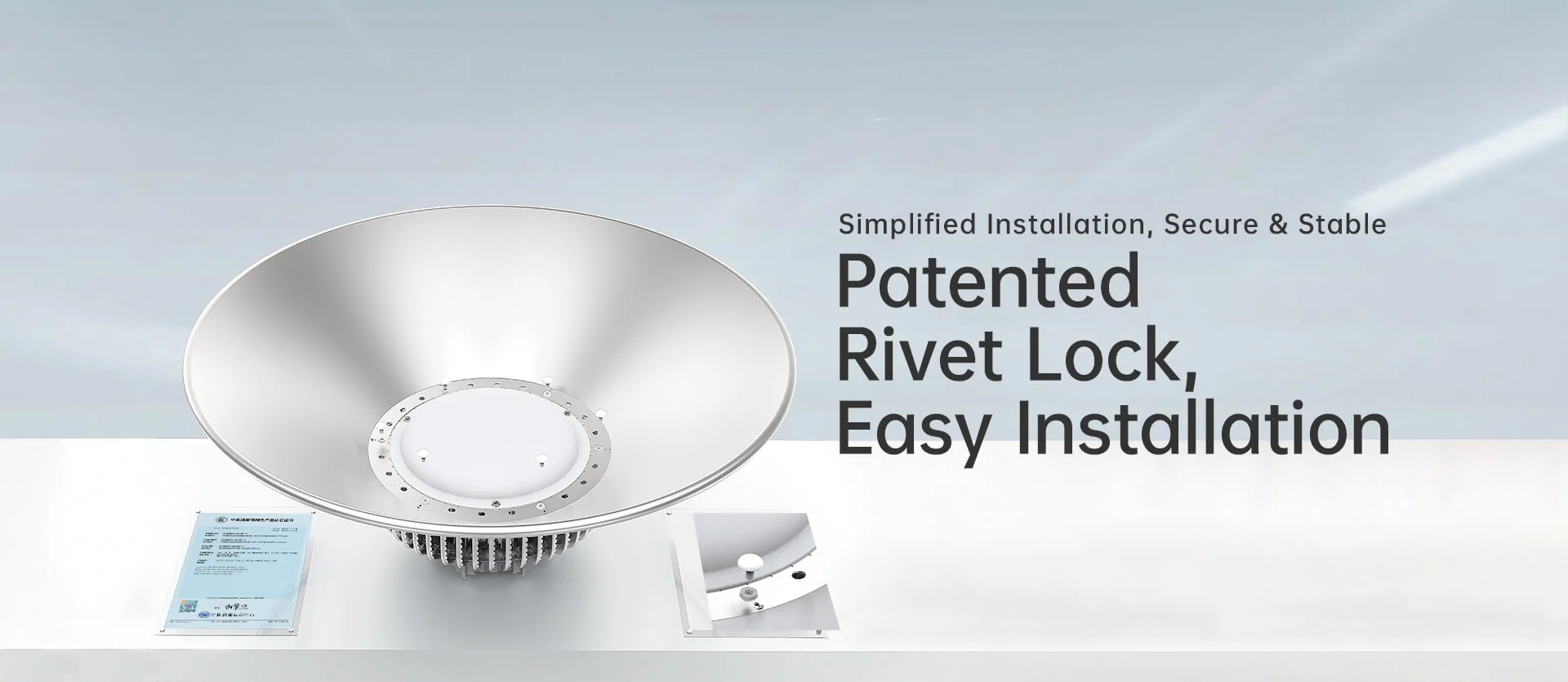

Rivet lock installation
Detail graphic showing simplified installation and a secure fixture connection.
02

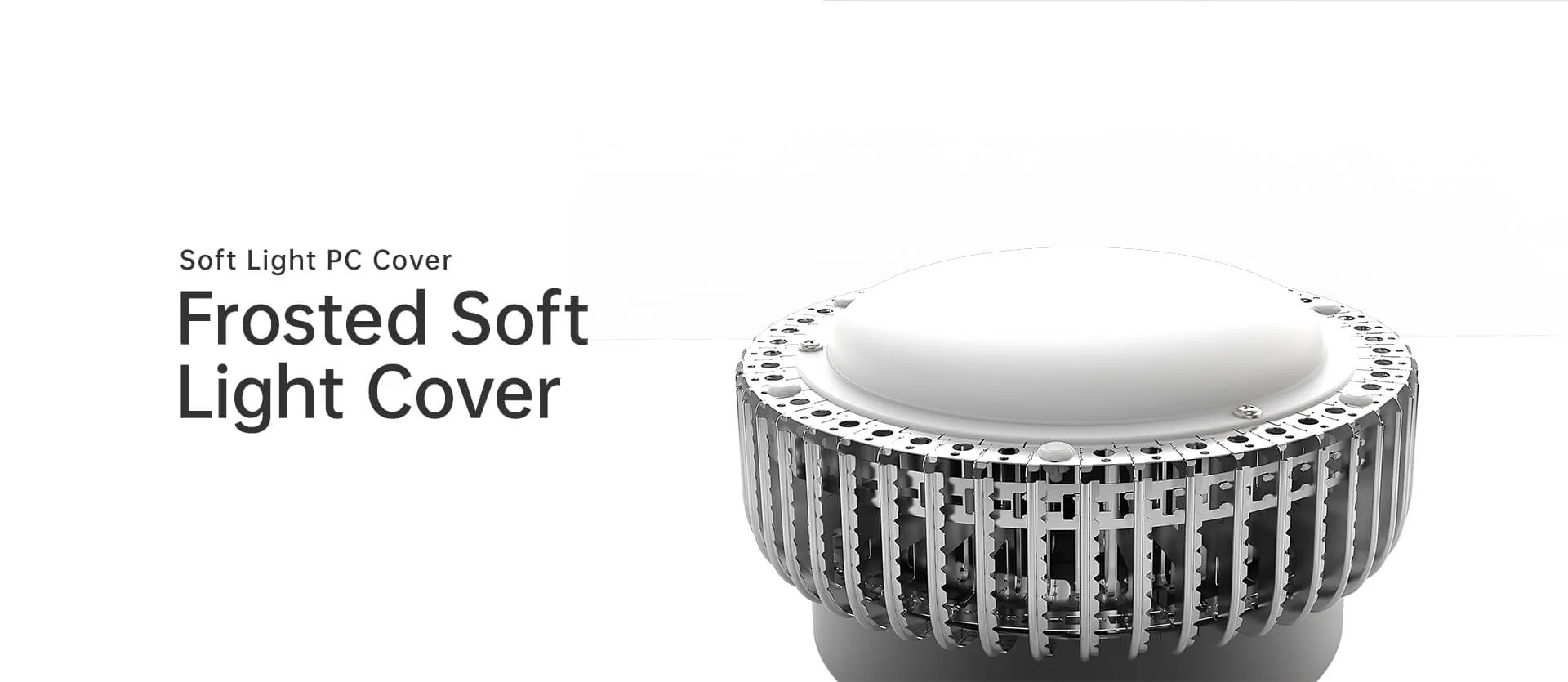

Frosted soft light cover
Frosted PC cover design for softer light and anti-glare behavior.
03

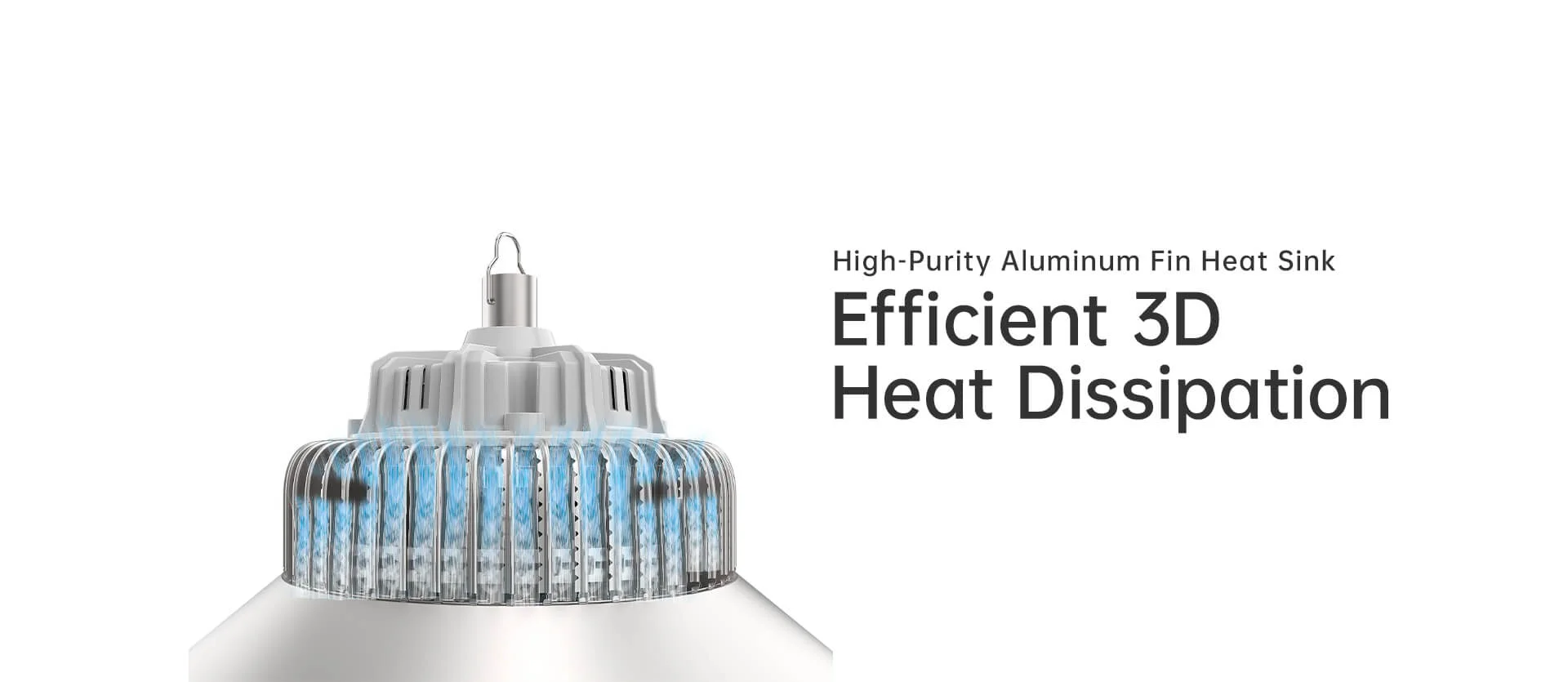

Efficient 3D heat dissipation
High-purity aluminum fin heat sink graphic for thermal management.
04

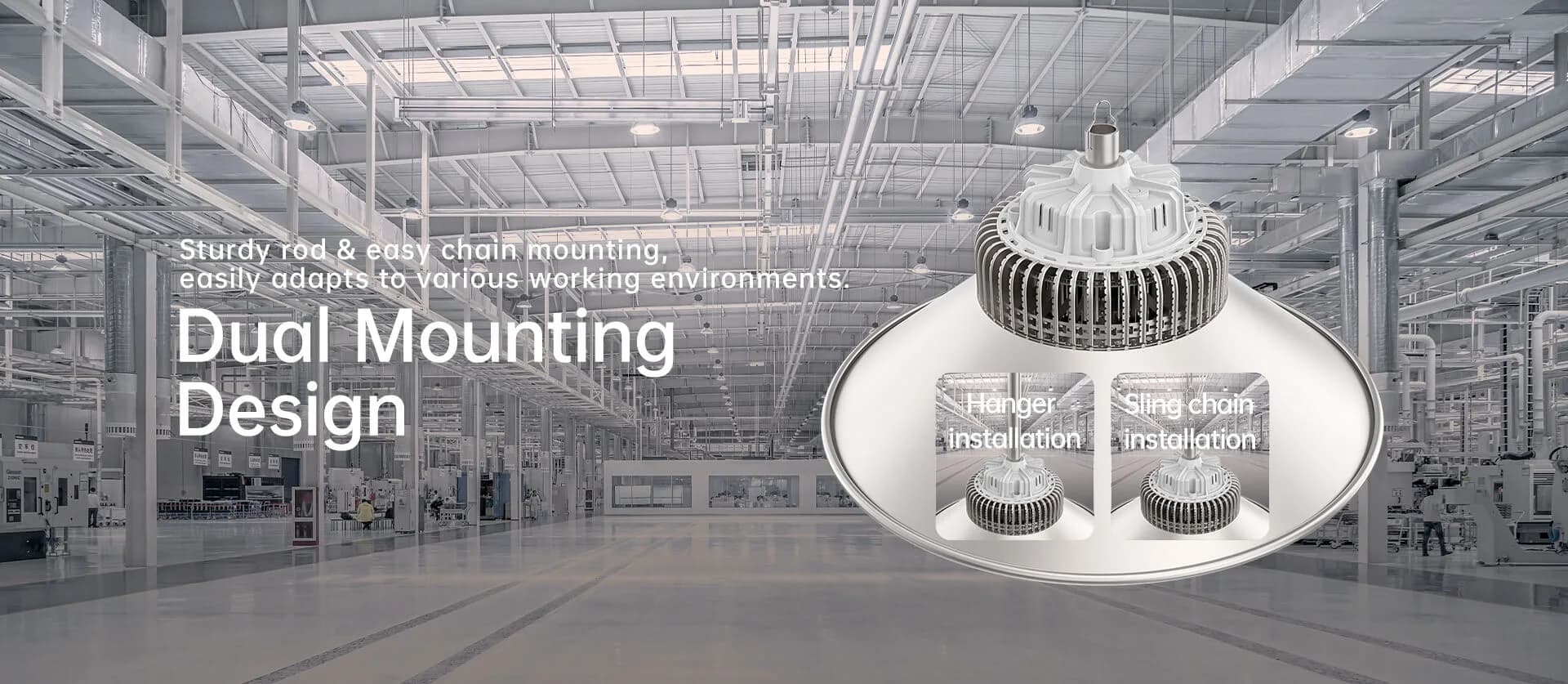

Dual mounting design
Chain and rod mounting reference for factory, warehouse and sports hall installations.
05

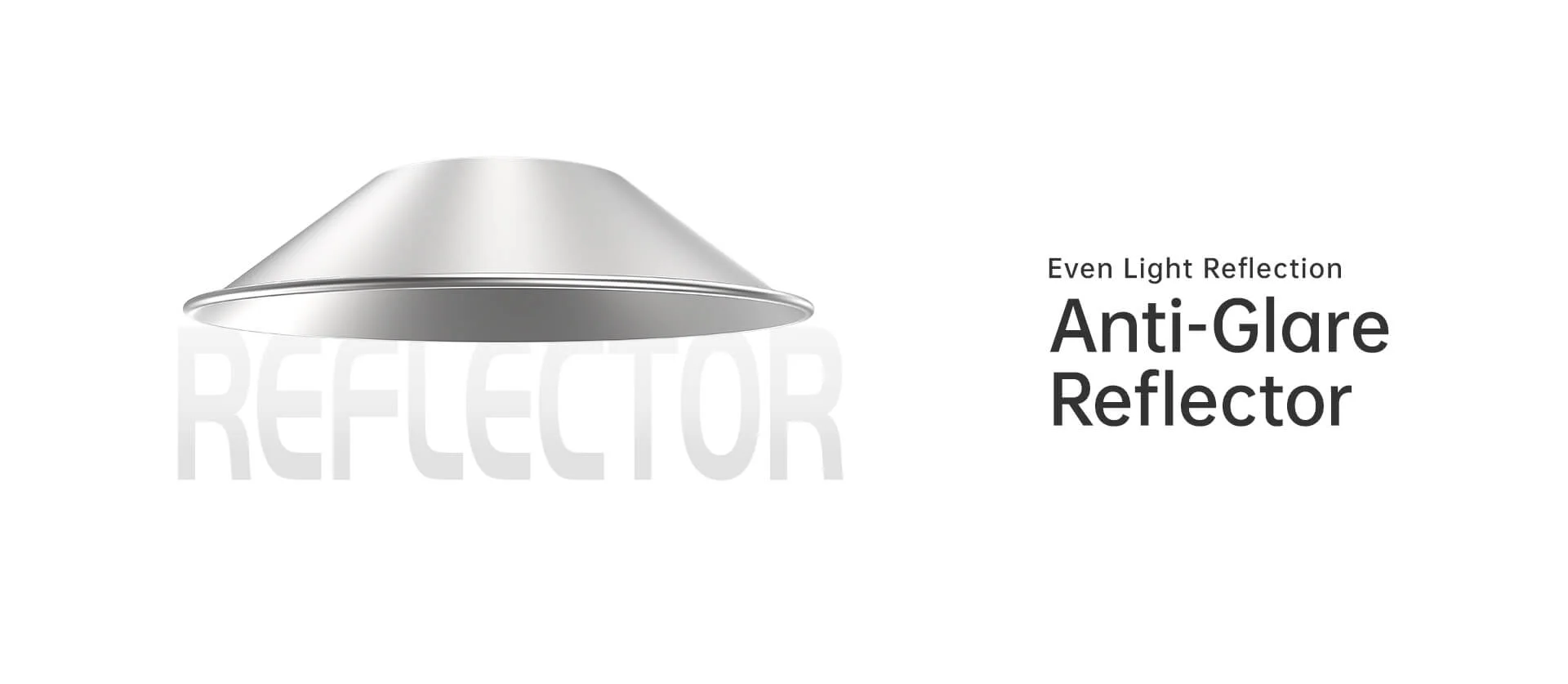

Anti-glare reflector
Reflector graphic for uniform light control and glare reduction.
06

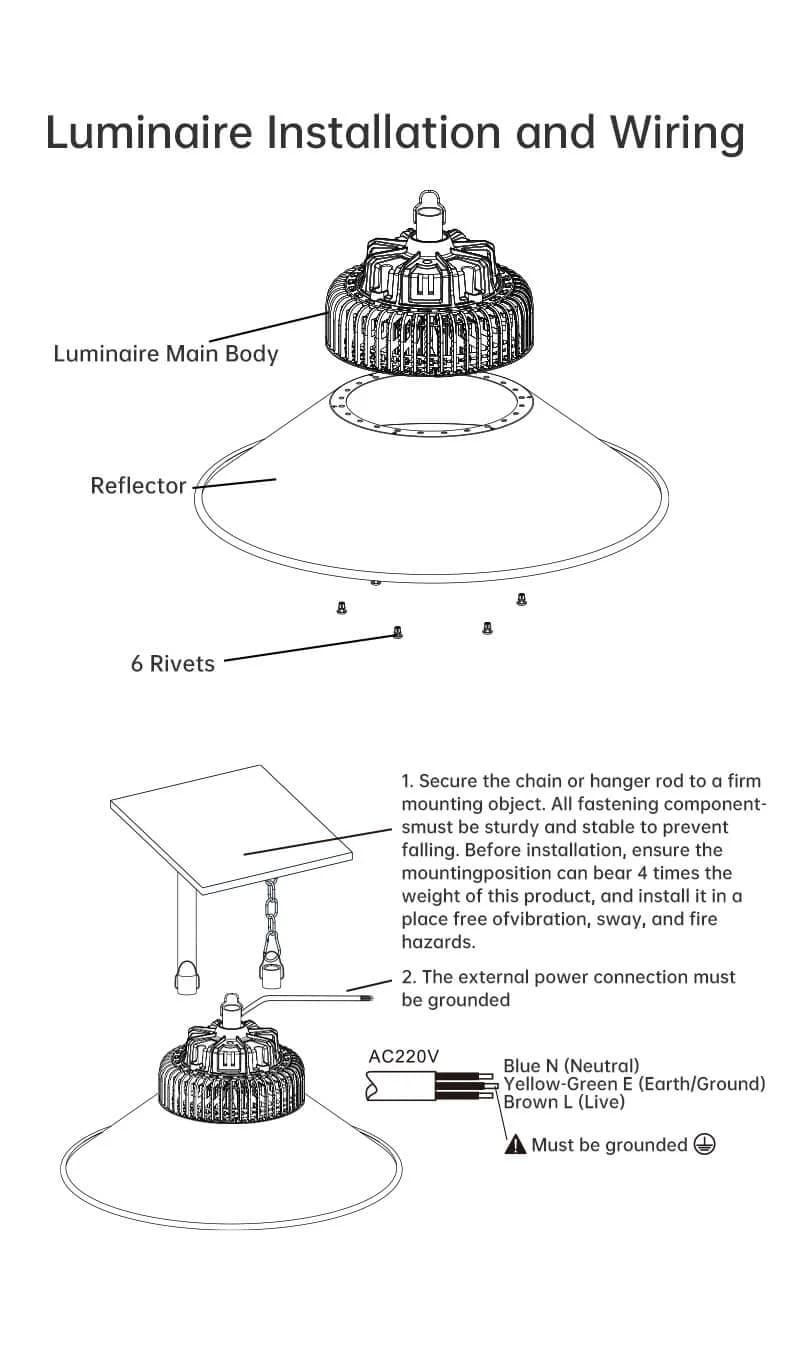

Luminaire installation and wiring
Installation diagram for reflector, light body, hook and power connection planning.
