SL-CLX-0020-E01S
- Solar panel
- 4.5 V / 6 W Polysilicon
- Battery capacity
- 6 Ah LiFePO4
- Luminous flux (+/-10%)
- 1000 lm
- Beam angle
- 70x140 degrees
- Induction distance
- 3-6 mm
- Support arm diameter
- 38 mm
Sunflower Solar Street Light
1 / 4
Compact SL-CLX solar street light series for residential areas, industrial parks, rural roads, pedestrian walkways, branch roads and parks.
| Luminous flux | 1000 lm / 2000 lm / 4000 lm |
| Light efficiency | 150-170 lm/W listed source materials |
| Colour temperature | 6500 K |
| Beam angle | 70x140 degrees / 75x150 degrees |
| Protection | IP65 |
| Application | Residential areas, Industrial parks, Rural roads, Pedestrian walkways |
Product parameters

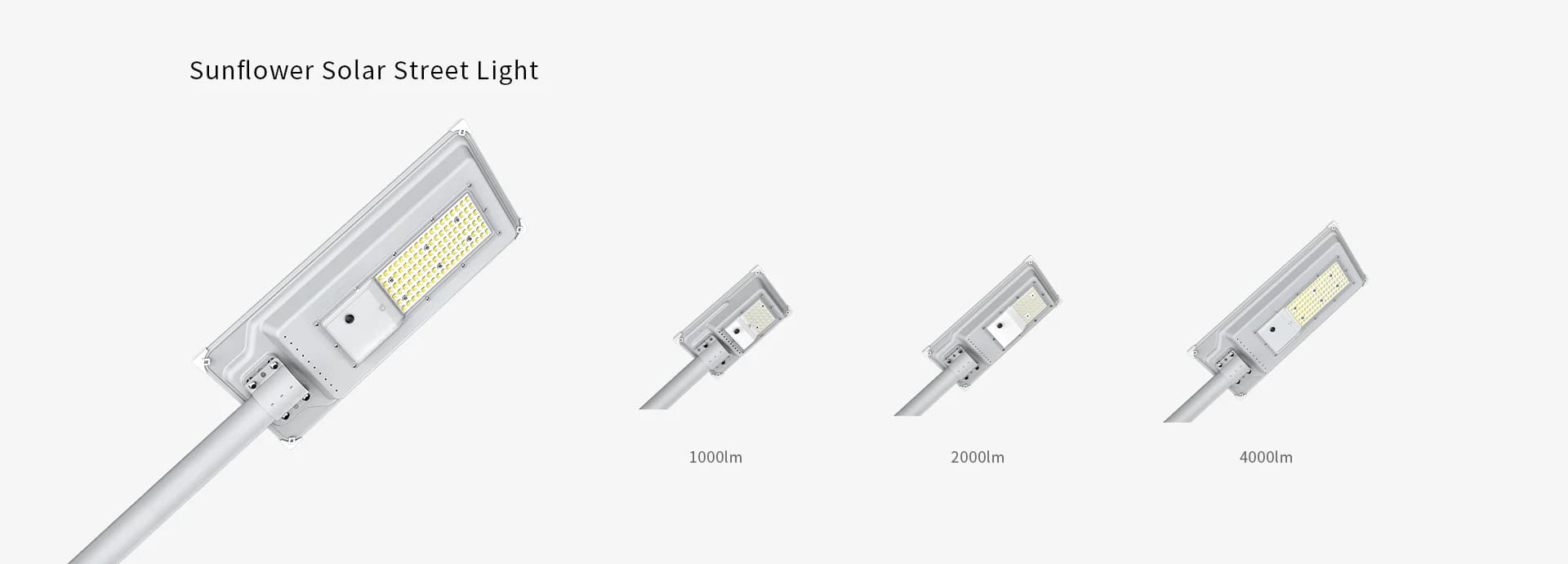

Model variants
Shared specifications
Consistent across every listed model
Configuration
- Color temperature
- 6500 K
- Response mode
- Microwave induction
- Caliber size
- 48 mm
Model-specific differences
SL-CLX-0040-E01S
- Solar panel
- 4.5 V / 10 W Polysilicon
- Battery capacity
- 12 Ah LiFePO4
- Luminous flux (+/-10%)
- 2000 lm
- Beam angle
- 70x140 degrees
- Induction distance
- 3-6 mm
- Support arm diameter
- 48 mm
SL-CLX-0060-E01S
- Solar panel
- 4.5 V / 15 W Polysilicon
- Battery capacity
- 18 Ah LiFePO4
- Luminous flux (+/-10%)
- 4000 lm
- Beam angle
- 75x150 degrees
- Induction distance
- 3-6 m
- Support arm diameter
- 48 mm
| Model | Solar panel | Battery capacity | Luminous flux (+/-10%) | Beam angle | Induction distance | Support arm diameter |
|---|---|---|---|---|---|---|
| SL-CLX-0020-E01S | 4.5 V / 6 W Polysilicon | 6 Ah LiFePO4 | 1000 lm | 70x140 degrees | 3-6 mm | 38 mm |
| SL-CLX-0040-E01S | 4.5 V / 10 W Polysilicon | 12 Ah LiFePO4 | 2000 lm | 70x140 degrees | 3-6 mm | 48 mm |
| SL-CLX-0060-E01S | 4.5 V / 15 W Polysilicon | 18 Ah LiFePO4 | 4000 lm | 75x150 degrees | 3-6 m | 48 mm |
Downloads
Project Use Datasheet
PDF specification sheet
DatasheetOpen PDF
Sunflower Solar Street Light Datasheet
PDF specification sheet
DatasheetOpen PDF
SL-CLX-0020 Photometric Report
PDF photometric test report
Photometric reportOpen PDF
SL-CLX-0040 Photometric Report
PDF photometric test report
Photometric reportOpen PDF
SL-CLX-0060 Photometric Report
PDF photometric test report
Photometric reportOpen PDF
SL CLX 0020 Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0020 Y Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0040 Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0040 Y Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0060 Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0060 Y Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
SL CLX 0060 Y4 Battery MSDS
Battery safety document PDF
Battery reportOpen PDF
Product features
Why this series matters
01
Polycrystalline solar charging

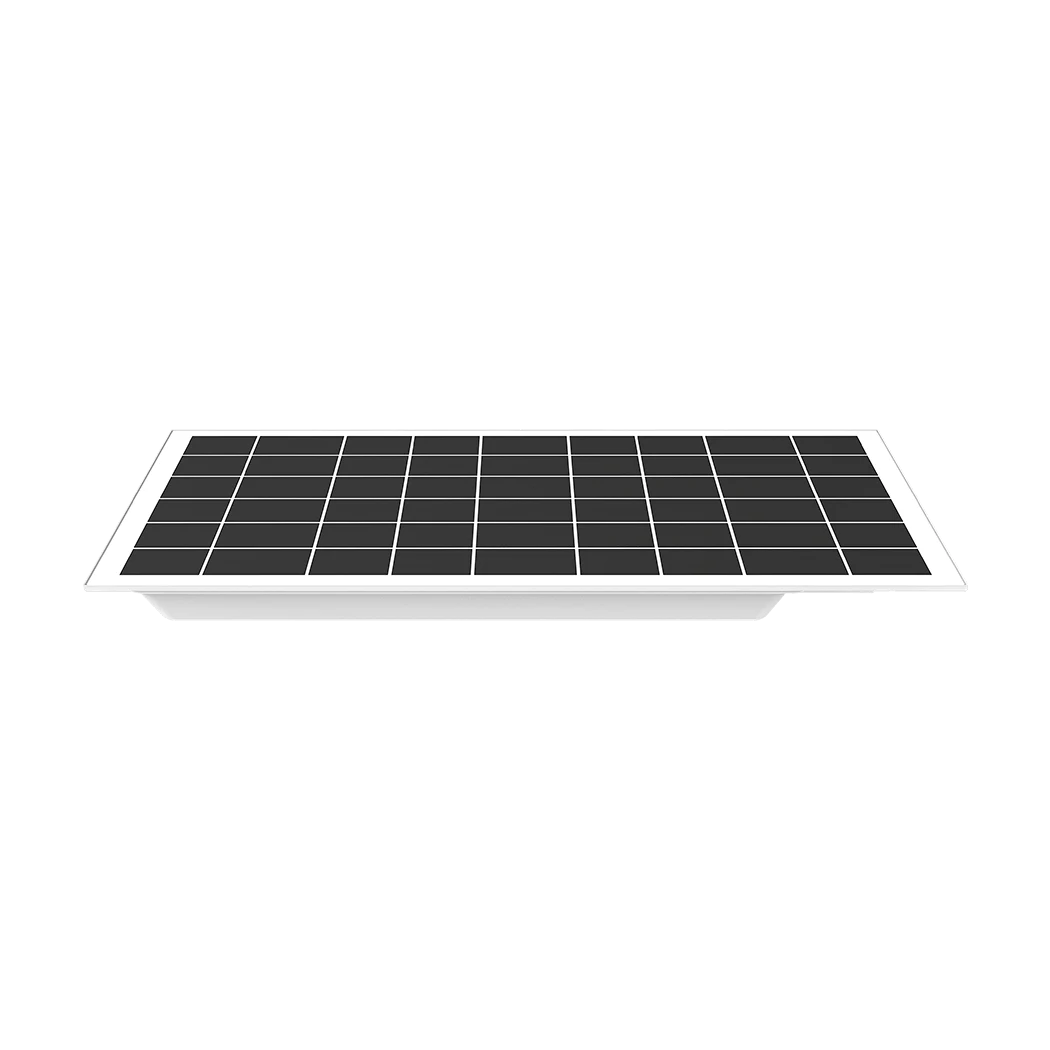

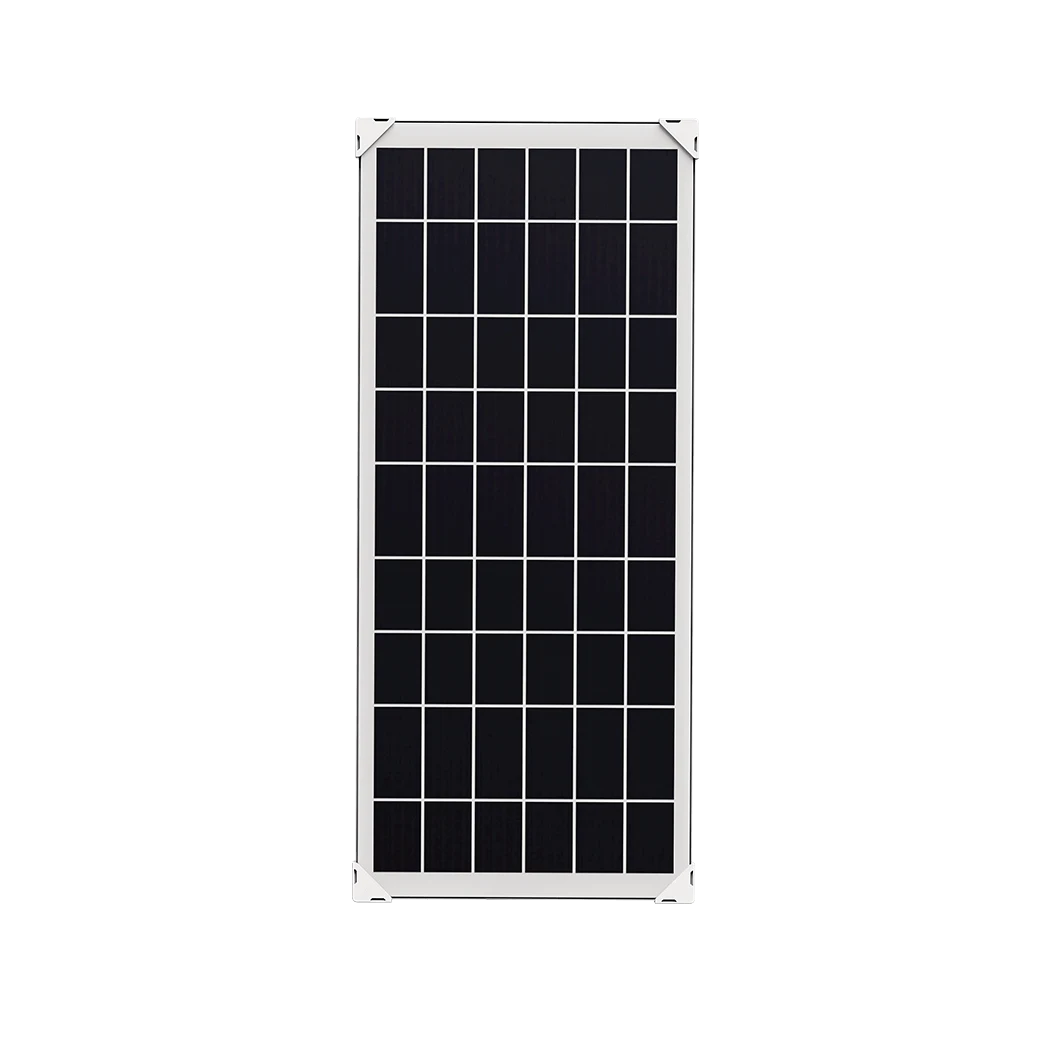

The integrated polysilicon solar panel package supports off-grid charging for outdoor street and pathway lighting.
02
Slim outdoor housing
Feature material shows an SPCC metal body, anti-rust finish, IK08-rated PC panel and flexible mounting.
03
High-output LED package
The 4000 lm model and high-efficiency LED package support compact solar street lighting with fewer external components.
04
Light sensor control
Day charging and automatic night lighting support wire-free installation for pedestrian and branch-road projects.
