CP-SL01-0035-E02S
- Luminous flux (±10%)
- 5000 lm
- Product size
- 573 x 383 x 248 mm
- Battery parameters
- 3.2 V / 60 Ah
- Solar panel
- Single crystal panel, 35 W
- Solar panel voltage
- 12 V
- Beam angle
- 140x75 degrees

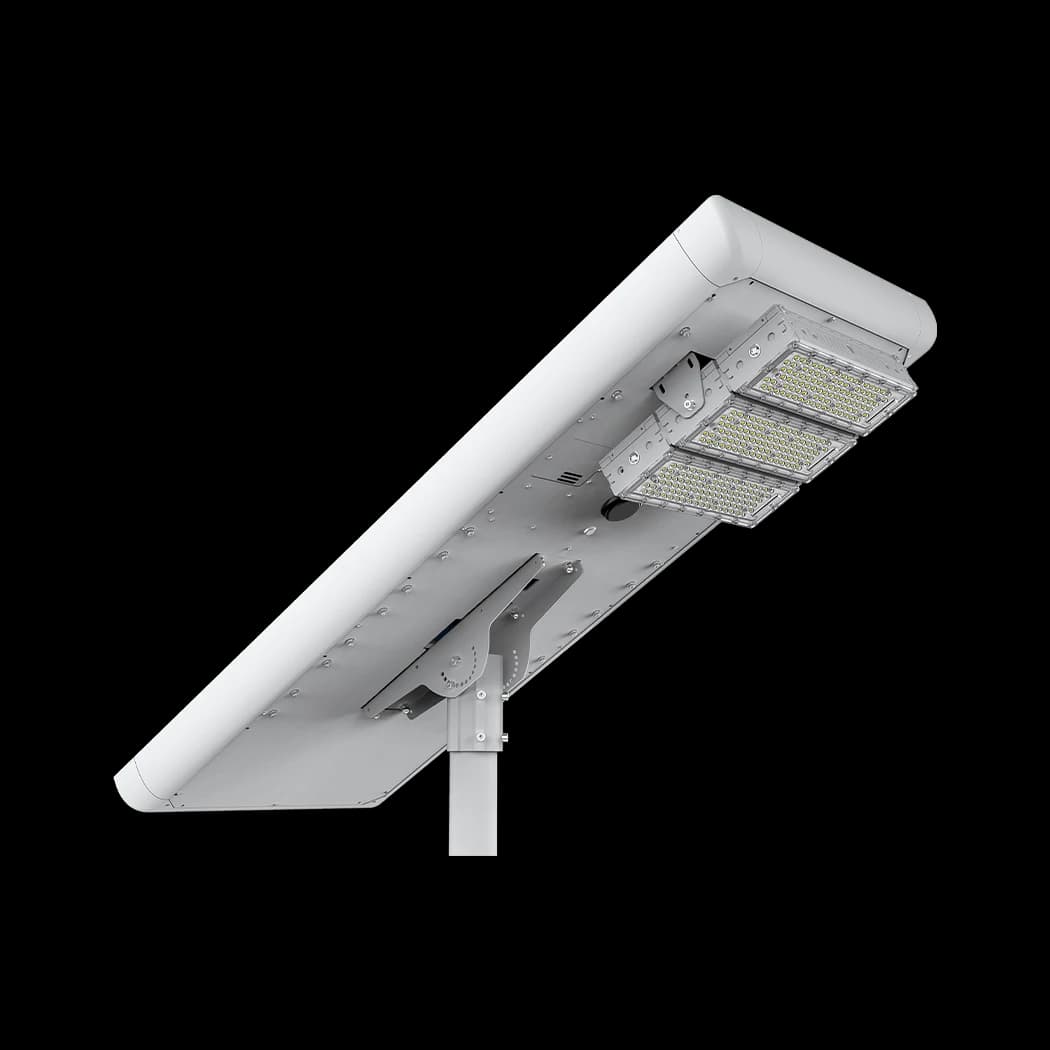

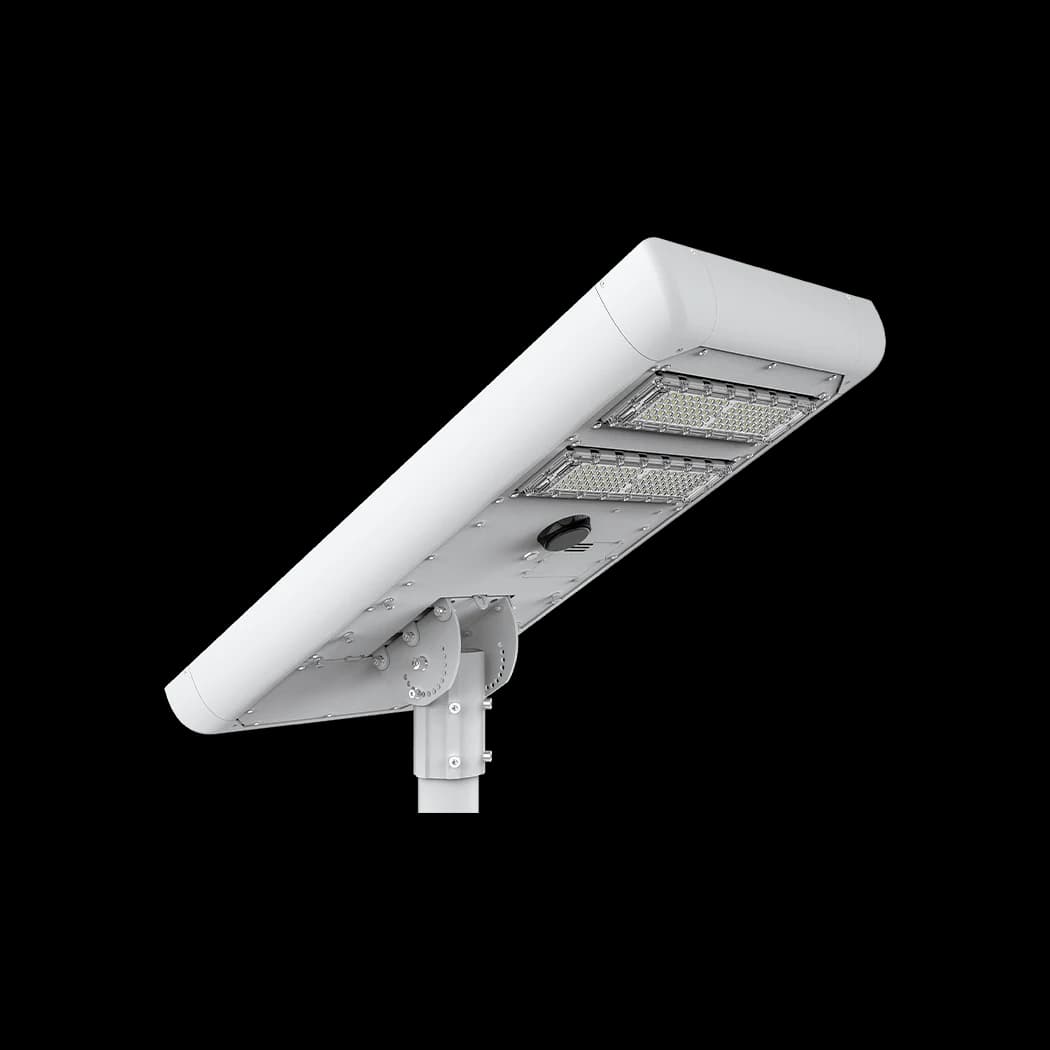

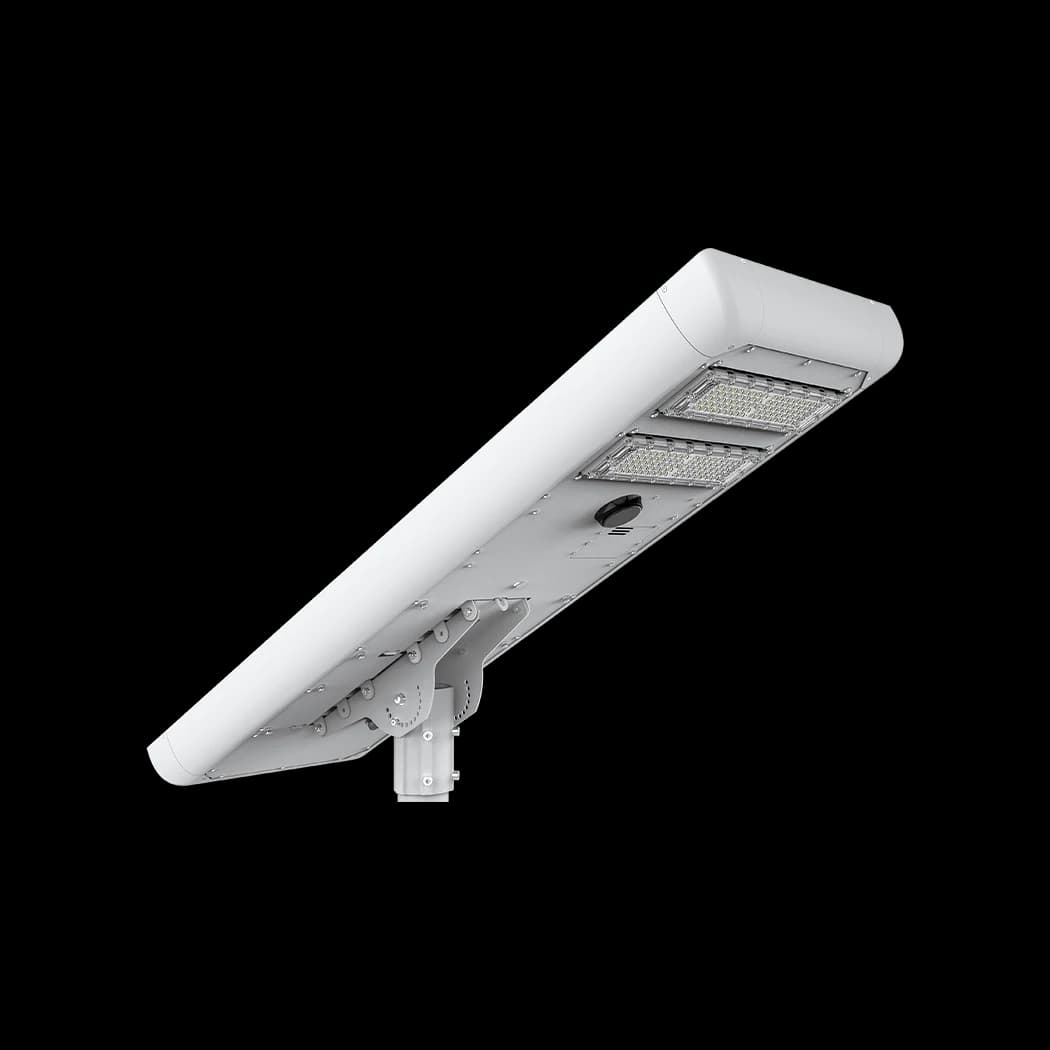

Hulk-E-3rd Solar Street Light
1 / 4
Higher-output solar street light series with Maximum Power Point Tracking (MPPT), monocrystalline panel options and LiFePO4 batteries.
| Luminous flux | 5000 lm / 8500 lm / 12000 lm / 18000 lm |
| Light efficiency | 210 lm/W |
| Colour temperature | 3000 K / 4000 K / 5700 K |
| Beam angle | 140x75 degrees / 120x80 degrees |
| Application | Elevated lines, Main roads, Pedestrian malls, Back roads |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency (±10%)
- 210 lm/W
- CRI
- Ra >= 70
Electrical
- Control mode
- MPPT with customizable lighting mode and microwave induction
Configuration
- Battery type
- Lithium iron phosphate battery
- Color temperature
- 3000 K / 4000 K / 5700 K
- Response
- Microwave induction
Model-specific differences
CP-SL01-0055-E02S
- Luminous flux (±10%)
- 8500 lm
- Product size
- 853 x 383 x 248 mm
- Battery parameters
- 6.4 V / 60 Ah
- Solar panel
- Single crystal panel, 55 W
- Solar panel voltage
- 14 V
- Beam angle
- 140x75 degrees
CP-SL01-0080-E02S
- Luminous flux (±10%)
- 12000 lm
- Product size
- 1153 x 383 x 252 mm
- Battery parameters
- 6.4 V / 75 Ah
- Solar panel
- Single crystal panel, 80 W
- Solar panel voltage
- 18 V
- Beam angle
- 140x75 degrees
CP-SL01-0125-E02S
- Luminous flux (±10%)
- 18000 lm
- Product size
- 1323 x 529 x 251 mm
- Battery parameters
- 25.6 V / 30 Ah
- Solar panel
- Single crystal panel, 125 W
- Solar panel voltage
- 34.5 V
- Beam angle
- 120x80 degrees

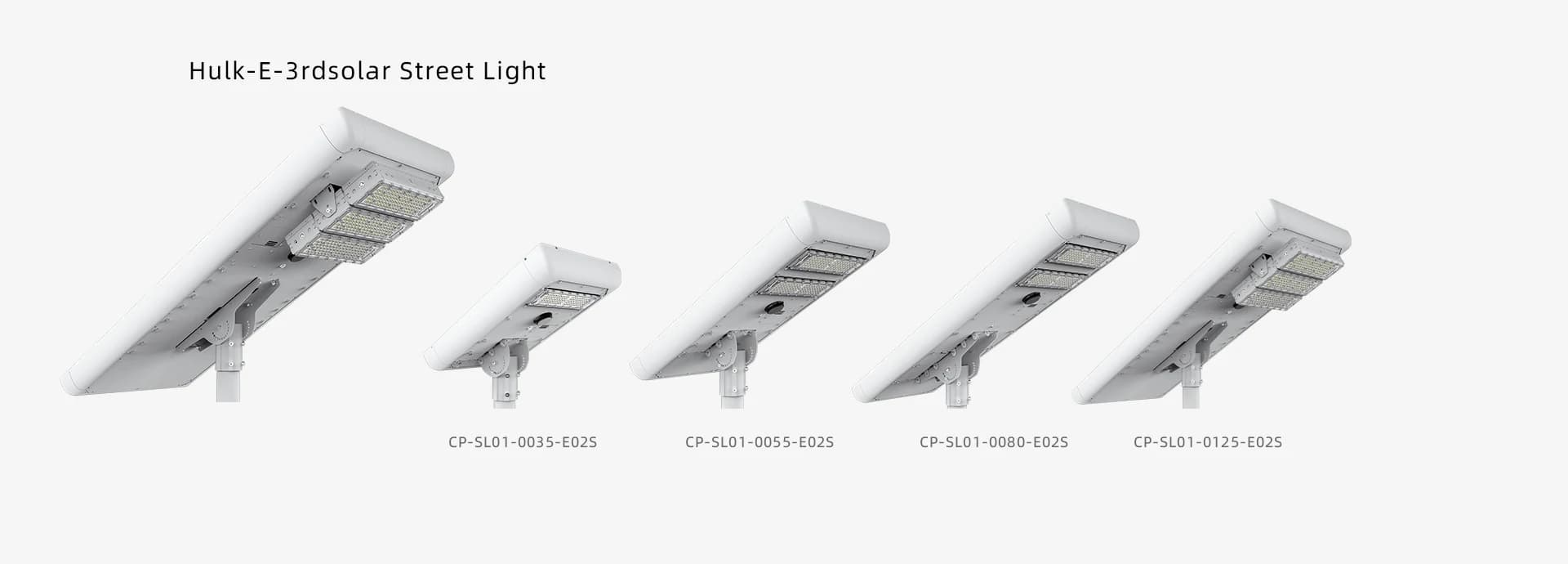

| Model | Luminous flux (±10%) | Product size | Battery parameters | Solar panel | Solar panel voltage | Beam angle |
|---|---|---|---|---|---|---|
| CP-SL01-0035-E02S | 5000 lm | 573 x 383 x 248 mm | 3.2 V / 60 Ah | Single crystal panel, 35 W | 12 V | 140x75 degrees |
| CP-SL01-0055-E02S | 8500 lm | 853 x 383 x 248 mm | 6.4 V / 60 Ah | Single crystal panel, 55 W | 14 V | 140x75 degrees |
| CP-SL01-0080-E02S | 12000 lm | 1153 x 383 x 252 mm | 6.4 V / 75 Ah | Single crystal panel, 80 W | 18 V | 140x75 degrees |
| CP-SL01-0125-E02S | 18000 lm | 1323 x 529 x 251 mm | 25.6 V / 30 Ah | Single crystal panel, 125 W | 34.5 V | 120x80 degrees |
