TS-JMX-0400-P01S
- Power
- 400 W
- Product size
- 380 x 343 x 262 mm

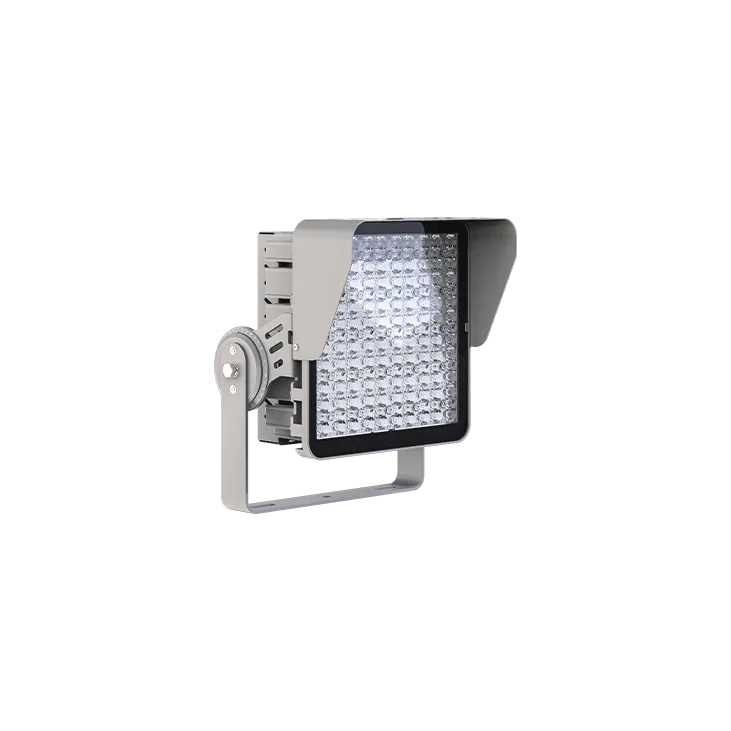

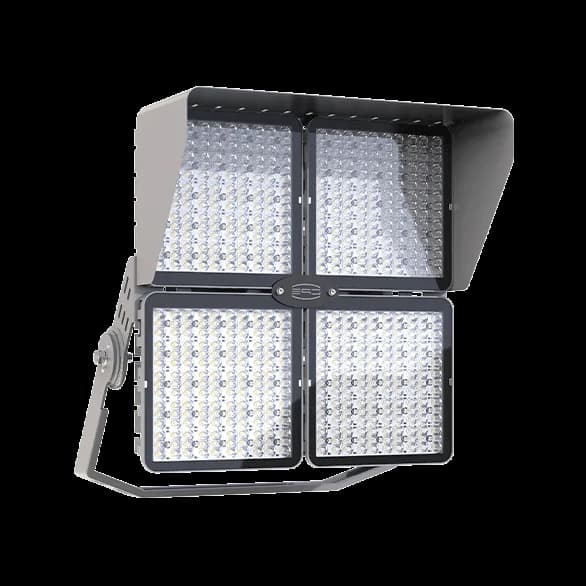

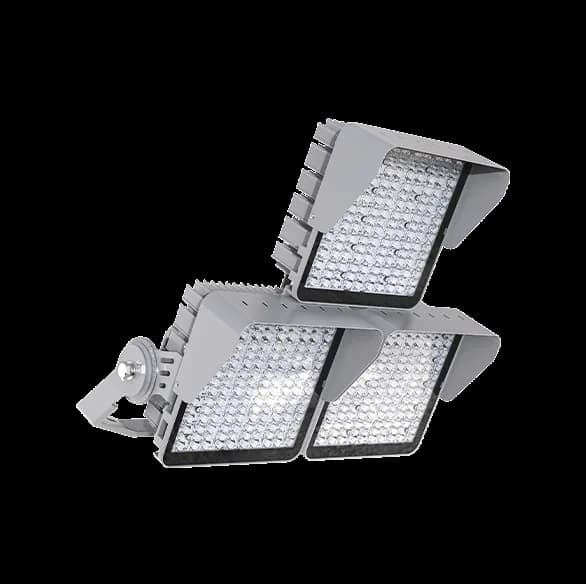

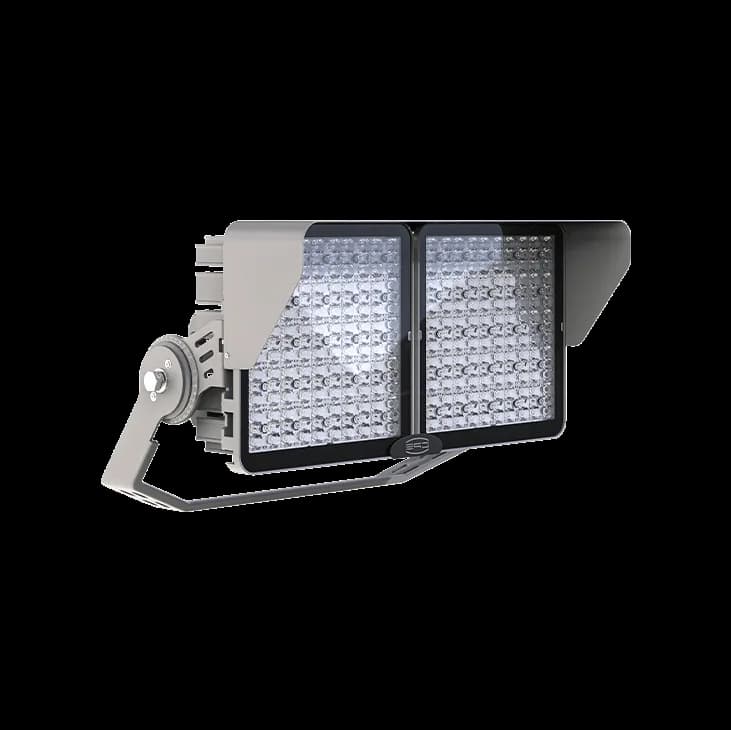

Giant Gate Star LED Sports Light
1 / 11
Modular sports-area lighting for stadium and high-mast projects.
| Power | 400 W / 800 W / 1200 W / 1600 W |
| Luminous flux | > 52000 lm (series data) |
| Light efficiency | > 130 lm/W |
| Input voltage | AC 90-305 V |
| Colour temperature | 5700 K |
| Application | Sports fields, Stadiums, High-mast areas, Event venues |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Light efficiency
- > 130 lm/W
- CRI
- Ra >= 80
Electrical
- Input voltage
- AC 90-305 V
Configuration
- CCT
- 5700 K
Model-specific differences
TS-JMX-0800-P01S
- Power
- 800 W
- Product size
- 730 x 670 x 375 mm
TS-JMX-1200-P01S
- Power
- 1200 W
- Product size
- 730 x 670 x 375 mm
TS-JMX-1600-P01S
- Power
- 1600 W
- Product size
- 730 x 670 x 375 mm

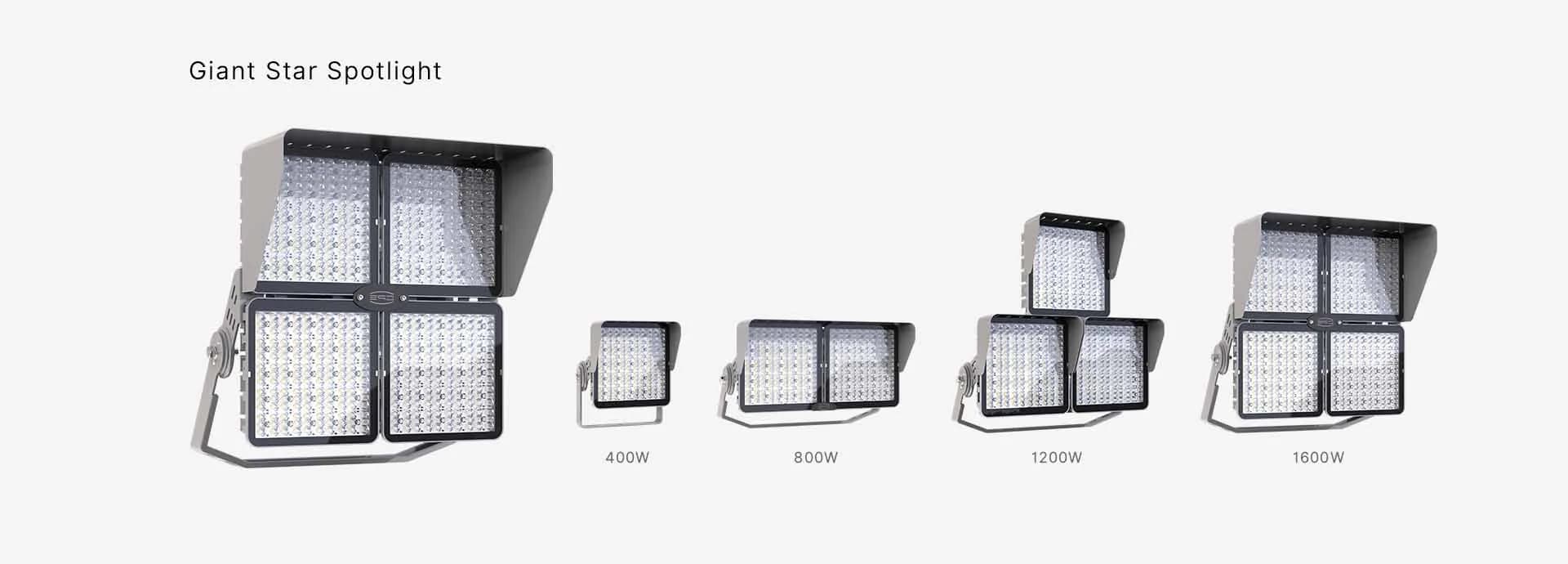

| Model | Power | Product size |
|---|---|---|
| TS-JMX-0400-P01S | 400 W | 380 x 343 x 262 mm |
| TS-JMX-0800-P01S | 800 W | 730 x 670 x 375 mm |
| TS-JMX-1200-P01S | 1200 W | 730 x 670 x 375 mm |
| TS-JMX-1600-P01S | 1600 W | 730 x 670 x 375 mm |
Downloads
Technical documentation
Available on request
DatasheetAvailable on request
