Warrior Star Projection Light 200 W
- Power
- 200 W
- Product size
- On request
- Luminous flux
- On request
- Light efficiency
- On request
- Color temperature
- 5700 K
- Appearance color
- On request
- Beam angle
- 45 degrees

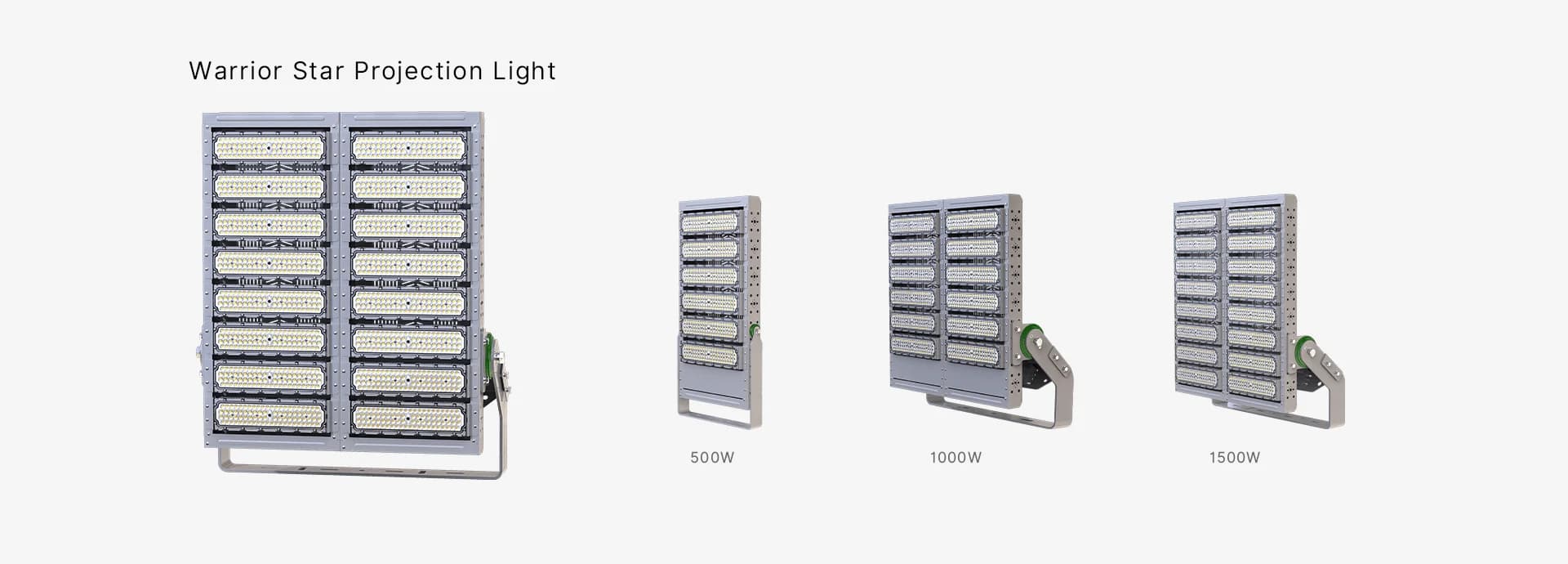

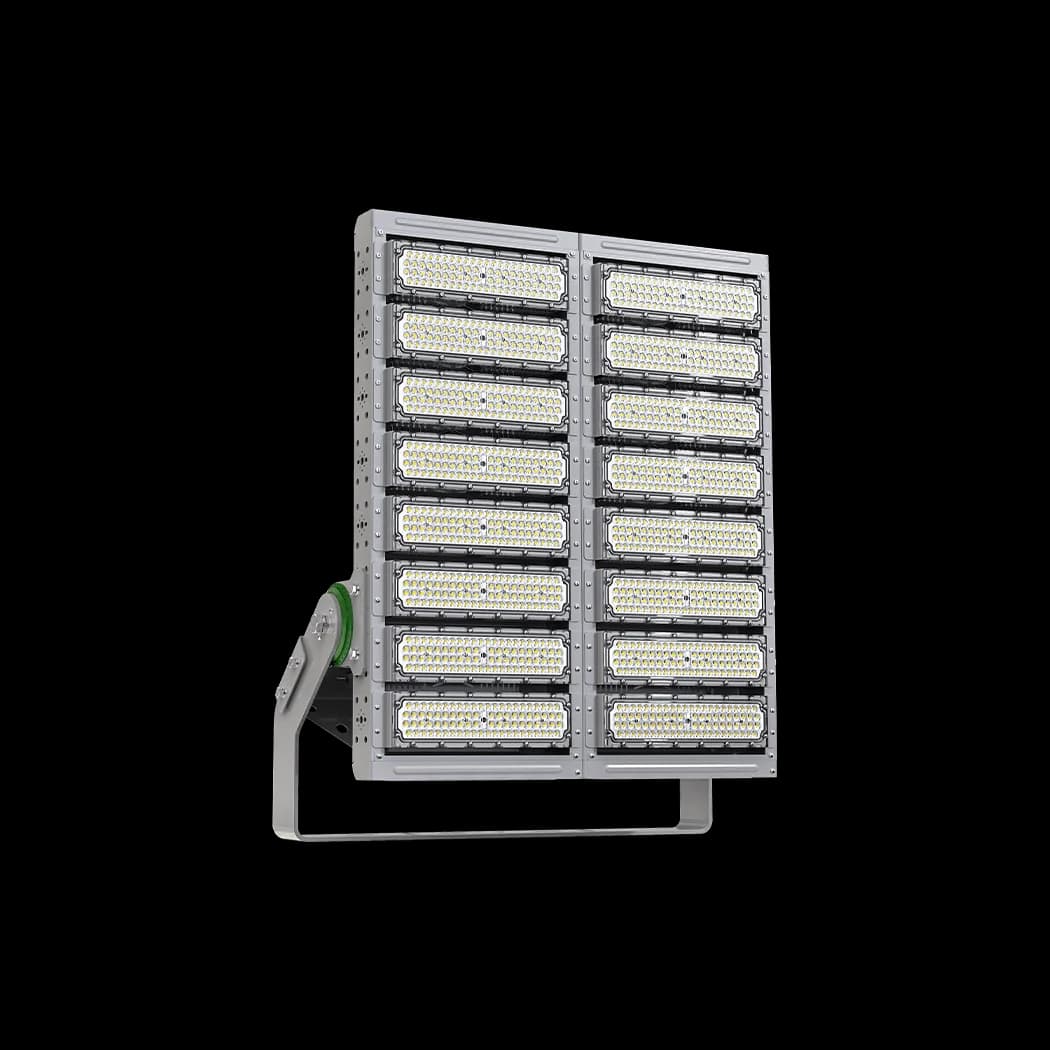

Warrior Star Stadium Lights
1 / 11
High-output modular stadium light series for sports fields, arenas and large event venues, supplied for project quotations with optical and mounting details confirmed per layout.
| Power | 200 W / 300 W / 500 W / 1000 W / 1500 W |
| Luminous flux | 75000 lm to 225000 lm |
| Light efficiency | 150 lm/W |
| Input voltage | AC 120-277 V |
| Colour temperature | 3000 K / 4000 K / 5000 K / 5700 K |
| Beam angle | 15 / 25 / 45 / 60 / 90 / 30x70 degrees |
| Protection | IP65 |
| Application | Large domestic event venues, International event venues, HDTV broadcast-standard stadium projects, Outdoor courts and football fields |
Product parameters
Model variants
Shared specifications
Consistent across every listed model
Performance
- Power factor
- PF >= 0.9
- CRI
- Ra >= 80
Electrical
- Input voltage
- AC 120-277 V
Model-specific differences
Warrior Star Projection Light 300 W
- Power
- 300 W
- Product size
- On request
- Luminous flux
- On request
- Light efficiency
- On request
- Color temperature
- 5700 K
- Appearance color
- On request
- Beam angle
- 60 degrees
Warrior Star Projection Light 500 W
- Power
- 500 W
- Product size
- On request
- Luminous flux
- On request
- Light efficiency
- On request
- Color temperature
- 5700 K
- Appearance color
- On request
- Beam angle
- 90 degrees

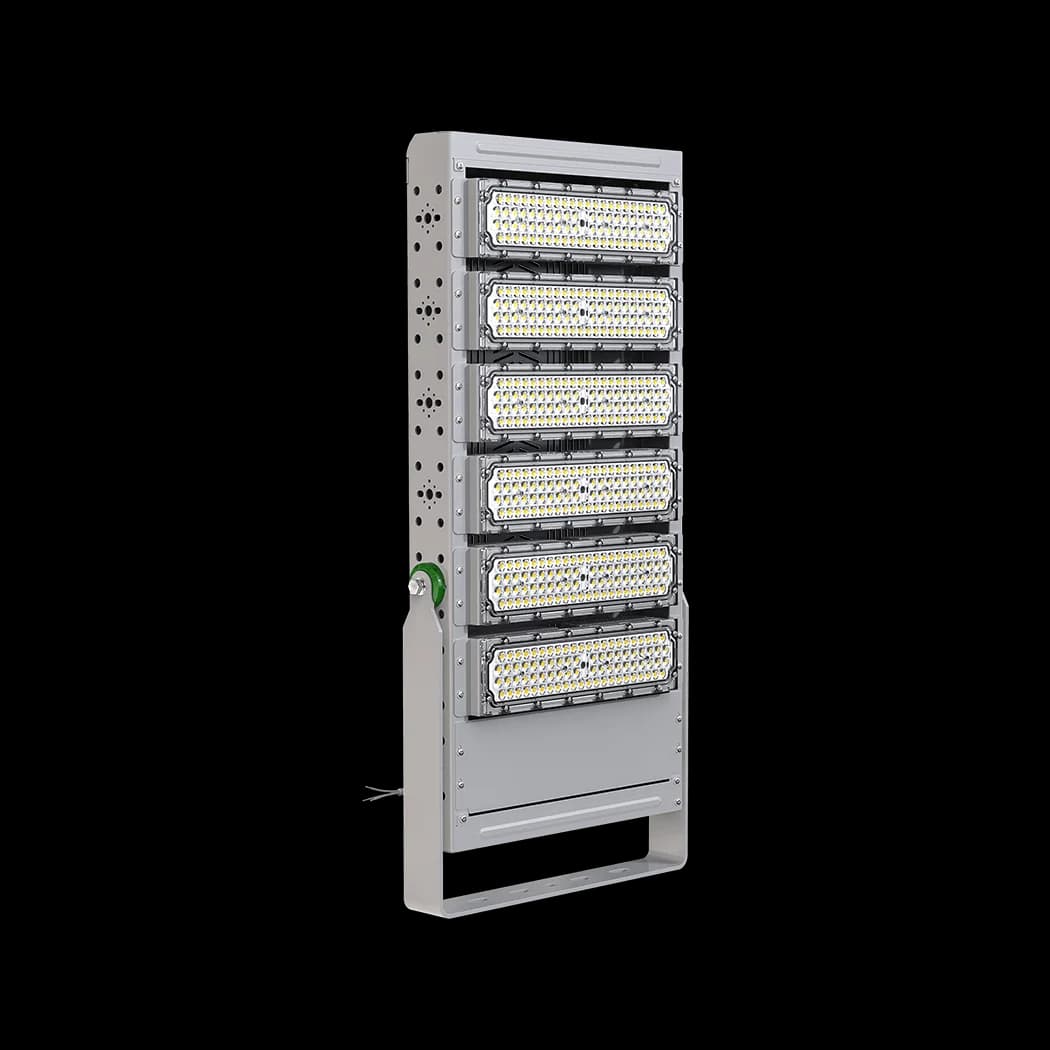

TS-WQX-0500-P01G
- Power
- 500 W
- Product size
- 706 x 342 x 97 mm
- Luminous flux
- 75000 lm
- Light efficiency
- 150 lm/W
- Color temperature
- 3000 K / 4000 K / 5000 K / 5700 K
- Appearance color
- Silvery
- Beam angle
- On request

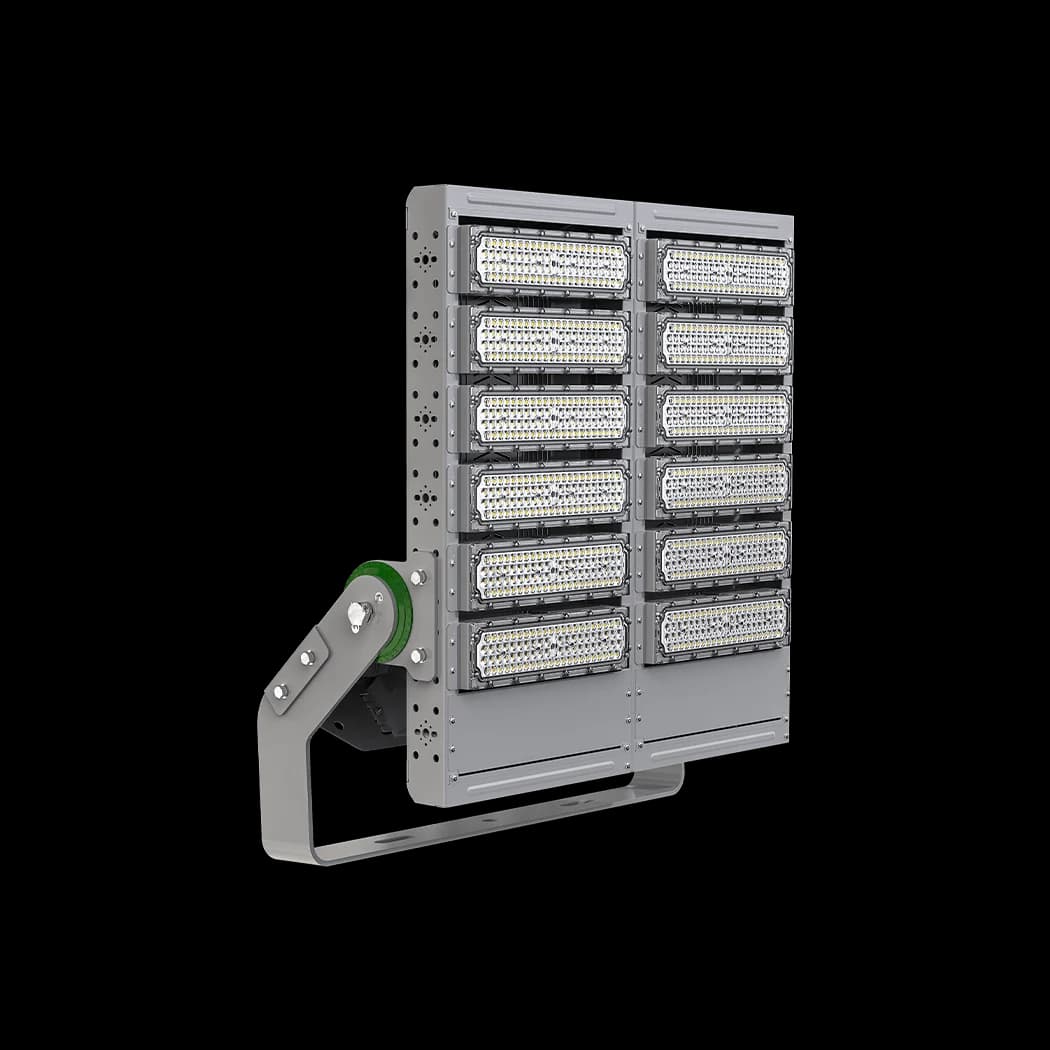

TS-WQX-1000-P01G
- Power
- 1000 W
- Product size
- 740 x 691 x 303 mm
- Luminous flux
- 150000 lm
- Light efficiency
- 150 lm/W
- Color temperature
- 3000 K / 4000 K / 5000 K / 5700 K
- Appearance color
- Silvery
- Beam angle
- On request

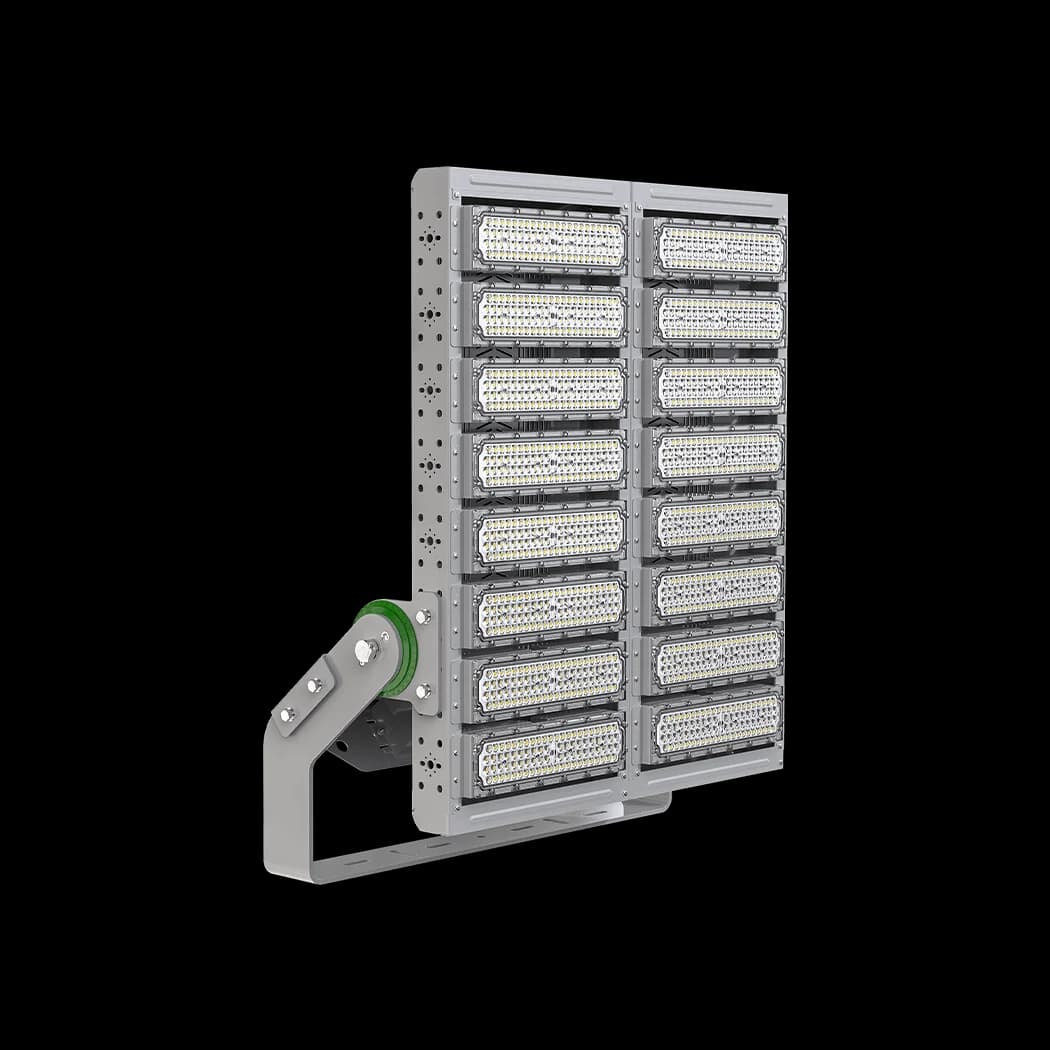

TS-WQX-1500-P01G
- Power
- 1500 W
- Product size
- 812 x 691 x 303 mm
- Luminous flux
- 225000 lm
- Light efficiency
- 150 lm/W
- Color temperature
- 3000 K / 4000 K / 5000 K / 5700 K
- Appearance color
- Silvery
- Beam angle
- On request
| Model | Power | Product size | Luminous flux | Light efficiency | Color temperature | Appearance color | Beam angle |
|---|---|---|---|---|---|---|---|
| Warrior Star Projection Light 200 W | 200 W | On request | On request | On request | 5700 K | On request | 45 degrees |
| Warrior Star Projection Light 300 W | 300 W | On request | On request | On request | 5700 K | On request | 60 degrees |
| Warrior Star Projection Light 500 W | 500 W | On request | On request | On request | 5700 K | On request | 90 degrees |
| TS-WQX-0500-P01G | 500 W | 706 x 342 x 97 mm | 75000 lm | 150 lm/W | 3000 K / 4000 K / 5000 K / 5700 K | Silvery | On request |
| TS-WQX-1000-P01G | 1000 W | 740 x 691 x 303 mm | 150000 lm | 150 lm/W | 3000 K / 4000 K / 5000 K / 5700 K | Silvery | On request |
| TS-WQX-1500-P01G | 1500 W | 812 x 691 x 303 mm | 225000 lm | 150 lm/W | 3000 K / 4000 K / 5000 K / 5700 K | Silvery | On request |
Downloads
Warrior Star datasheet
Available on request
DocumentAvailable on request
Sports photometric file
Available on request
DocumentAvailable on request
Product features
Why this series matters
01
Three high-output stadium models
Specification rows cover 500 W, 1000 W and 1500 W models for project-level stadium layouts.
02
Modular SKD combination
Feature material highlights on-demand SKD DIY modular combinations for flexible project assembly.
03
One-lamp optical distribution
Multiple engineering lens options support precise projection and sports-field aiming plans.
04
Outdoor protection package
The feature graphics list IP65 waterproof design and up to 20KV surge protection for outdoor stadium projects.
05
IP65 waterproof design
Outdoor housing graphic highlights IP65 waterproof protection for rain-prone stadium installations.
