Useful light
The distribution supports improving maintained visibility and control without carrying old layout failures into the new system instead of maximising lumens outside the area that matters.
Industrial indoor lightingCommercial investigation · industrial LED lighting

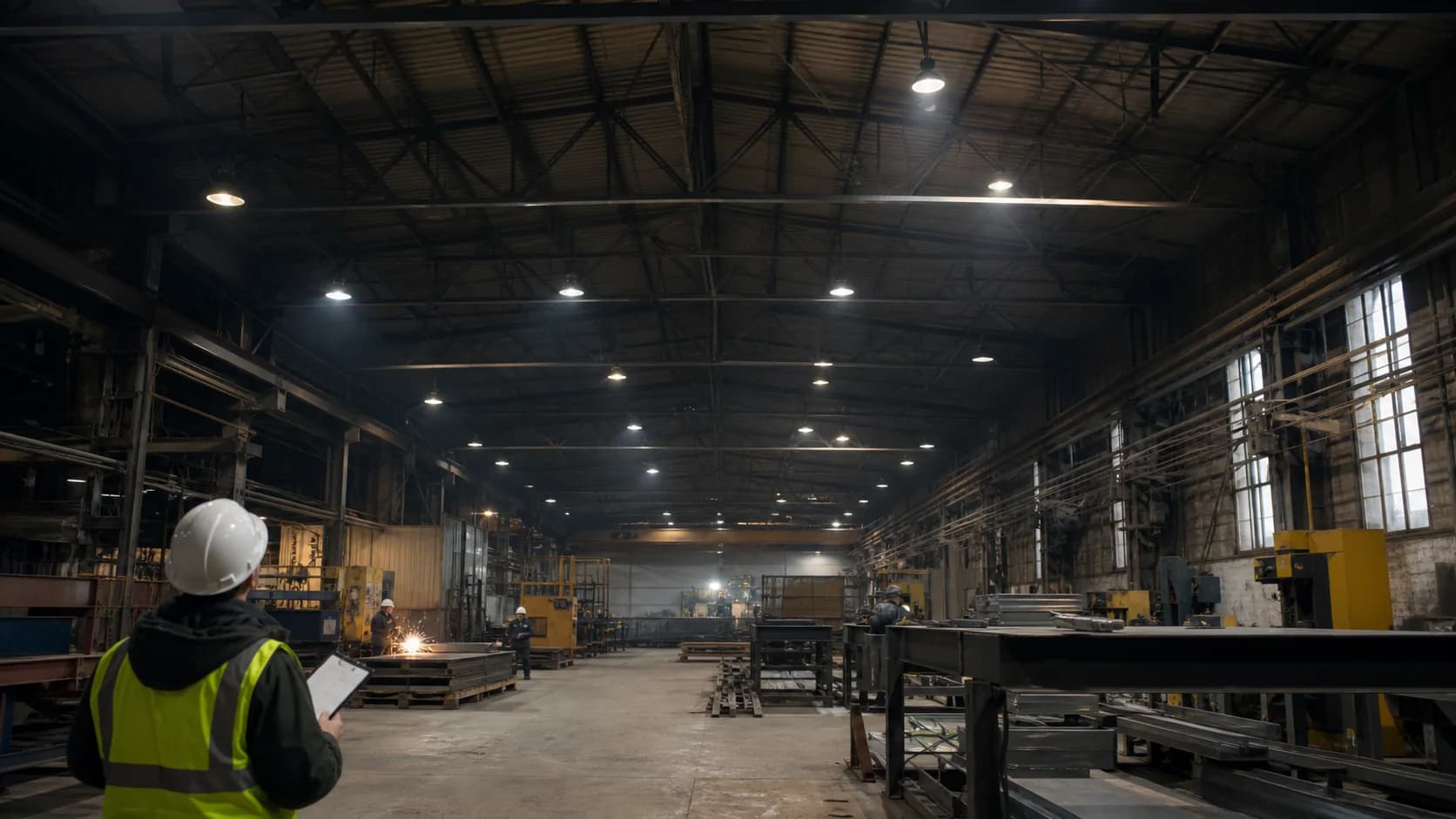

Industrial LED lighting retrofit
An industrial LED lighting retrofit replaces or reorganises an existing hall-lighting system. The design starts with an audit of fixtures, circuits, positions and measured problems before comparing new layouts.
- Industrial lighting retrofit layout based on geometry and the required result, not wattage alone
- Optics and output aligned with mounting height, aisles and visual tasks
- Explicit assumptions for existing fixtures, circuits, measured problems and reusable mounting points
- A direct connection between calculation, suitable product series, evidence and quote
Industrial indoor lighting
Application pages
Where this solution fits
Start by confirming the site types that belong on this path and the cases that need a different solution.
Industrial indoor lighting
What the project should achieve
A useful specification balances visual performance, reliability, operating cost and the realities of installation.
Controlled glare
Position, optics and aiming account for users and existing workstations, changed output levels and reused mounting positions.
Predictable operation
Controls, environmental conditions and maintenance access are part of selection rather than an afterthought after pricing.
A verifiable specification
The result connects targets, visible assumptions, the proposed variant and evidence the project team can check.
Commercial investigation · industrial LED lighting
Design criteria
These are the decisions that shape fixture selection, photometric work and the final quote assumptions.
| Design criteria | Design approach |
|---|---|

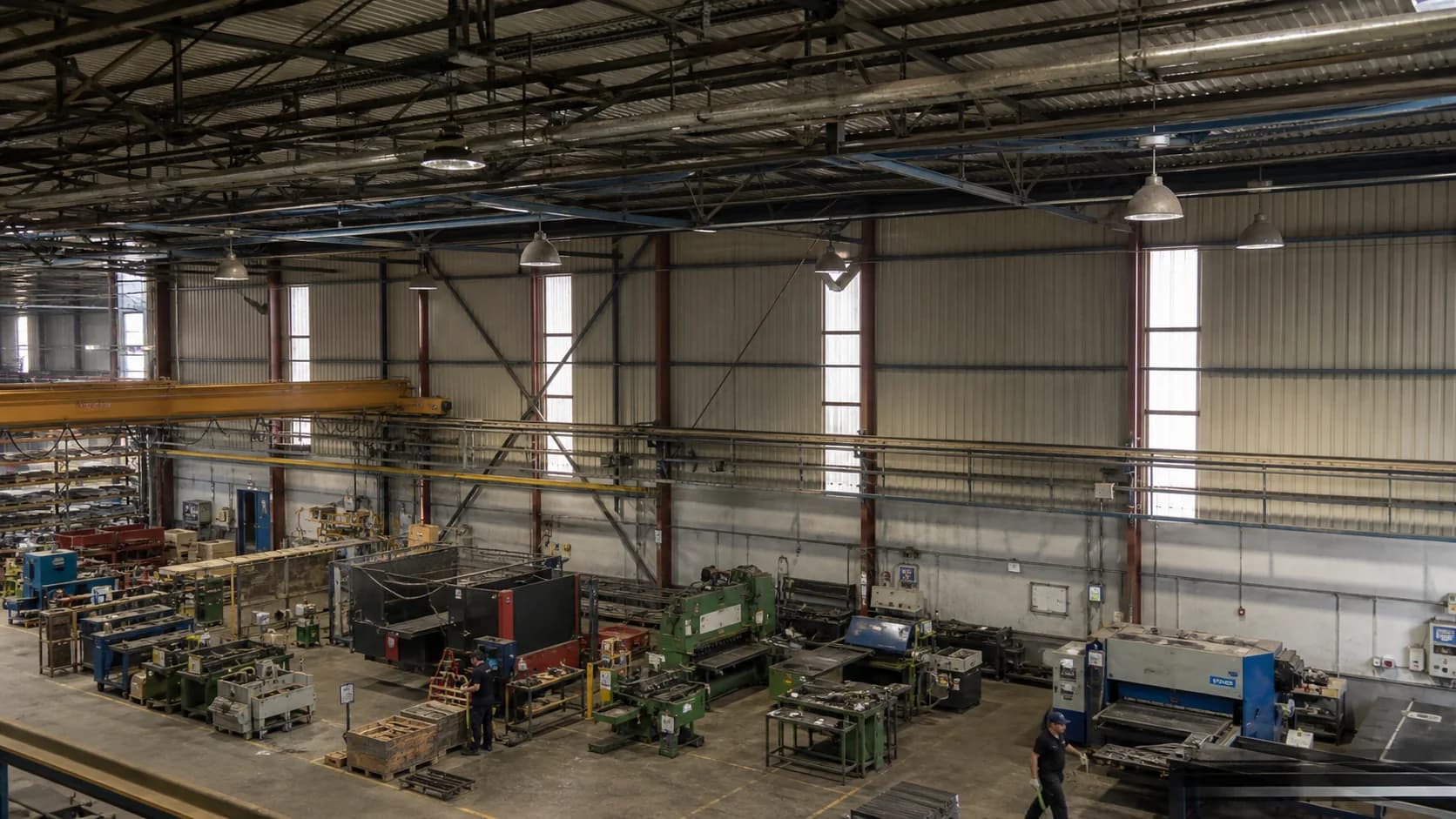

| Existing inventory | Record model, quantity, power, optic, age, failures, mounting and circuit grouping for the current installation. |
| Baseline evidence | Use measurements, operator feedback, energy data and known dark or glare zones to define the problem being solved. |
| Reuse constraints | Check brackets, cabling, distribution boards, controls and structural points before assuming they remain suitable. |
| Replacement strategy | Compare one-for-one, changed spacing and zoned redesign against performance, downtime and installation cost. |
| Commissioning plan | Preserve assumptions for aiming, sensor settings, scene tests and post-installation verification. |
Design criteria
Selection guide
Use these comparisons to narrow the system direction before choosing an individual model.
- Start with geometry
- Dimensions and mounting positions determine the useful distribution before wattage is considered.
- Use maintained targets
- Design for the required maintained result and declared maintenance assumptions, not initial lumens alone.
- Compare the distribution
- A lower-power fixture with the right optic can be more useful than a higher-output fixture with poor placement.
- Check the environment
- Temperature, dust, moisture, impacts, corrosion and electrical conditions can change the suitable series.
- Keep assumptions visible
- Any missing drawing, target or operating condition should remain explicit until the project team confirms it.
Design criteria
Standards and verification notes
Applicable targets depend on the country, site and project class. Final compliance must be checked against the current project brief and calculation.
Explore the solution family
Suitable product series
Published DinaLED models are shown only where the current product data supports this application direction.
high-bay-lightsBright Moon LED High Bay Light
Slim circular high bay for indoor industrial and commercial areas.
100 W / 150 W / 200 W / 300 W100 lm/W
high-bay-lightsGaia S High Bay Light
Anti-glare LED high bay light for factories, warehouses, courts and market halls, with chain or rod mounting and a 100 degree beam.
100 W / 150 W / 200 W80 lm/W
high-bay-lightsPolaris GK-BJX LED High Bay Light
Modular industrial high bay series with 100 W to 300 W configurations.
100 W / 200 W / 300 W140 lm/W
high-bay-lightsUranus High Bay Light
Industrial LED high bay light for warehouses, factories, gymnasiums and retail halls, with 100-200 W output and 70/80 degree optics.
100 W / 150 W / 200 W150 lm/W
high-bay-lightsUranus S GK-TWX-S LED High Bay Light
Uranus S high bay series with external and built-in driver configurations compared on one product page.
100 W / 150 W / 200 W140 lm/W
high-bay-lightsVenus LED High Bay Light
Compact circular high bay series for economical warehouse and workshop lighting.
100 W / 150 W / 200 W / 300 W100 lm/WIP65
Related lighting paths
Industrial LED high bay lighting
A project route for high-ceiling industrial interiors where geometry, rack layout, working conditions and maintenance access determine the right luminaire system.
LED warehouse lighting
Warehouse lighting designed around rack orientation, picking tasks, vehicle routes and occupancy patterns rather than a one-wattage-for-every-zone schedule.
LED production hall lighting
Industrial lighting for production zones where the visual task, machine layout, surface reflectance and environmental exposure vary across one hall.
LED street lighting retrofit
A modernisation route that audits existing poles, circuits and lighting performance before testing whether one-for-one LED replacement meets the required class.
FAQ
Questions buyers and designers ask
A retrofit route that tests what can be reused, what the current installation actually delivers and whether a one-for-one replacement is technically justified.
